| Prod Model: |
SGWS-MS85 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality: |
a |
| Certificate: |
ISO9001:2008 |
| Best Price: |
Diamond Tools Factory |
| Fix: |
Plastic/Rubber/Spring Pressing |
| Beads: |
37/40 |
| Raw Material: |
Rause Diamond From Element Six |
| Package Details: |
Carton, Box |
| Delivery Details: |
7-15 Days After Payment Received |
| Performance: |
Stable Performance and Long Lifespan |
| Service: |
Quickly Response |
Product Description

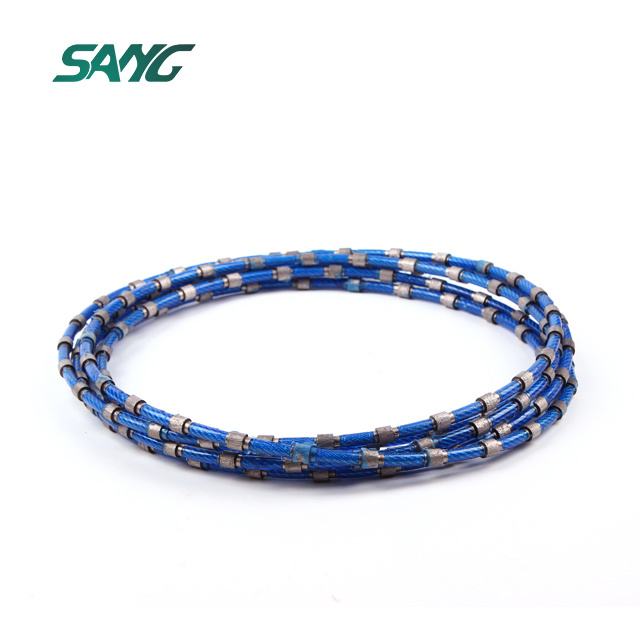

Features:
1) Diameter: 8 - 11.5mm
2) Diamond wire bead
3) Wire types:
A) Impregnated beads with compressed steel spring spacers
B) Impregnated beads with injection-molded plastic spacers
4) Made of high grade diamond, and steel wire is imported from Germany, with long life expectancy.
5) Used for stone profiling, block squaring, stone quarries and reinforced concrete cutting.
6) Can produce materials with smooth surface and increase output with less cost.
7) Low noise.
8) The impregnated bonding system is more similar to the impregnated systems on a circular saw in which a powder metal alloy is blended with diamond, then pressed and sintered to the steel band, providing multiple layers of diamond for cutting.
9) The real force behind the diamond wire saw is the diamond wire which is a steel carrier cable threaded through steel beads to which diamond is bonded.
Types
| O. D(mm)
| Material
| Beads
(pcs/m)
| Reinforcement
| Lifetime m2/m
|
Quarring
| 11.5/11
| Granite
| 40
| Rubber/plastic
| 7-15
|
Marble
| 28-30
| Spring
| 20-45
|
Squaring
| 11/10.5
| Granite
| 40/37
| Rubber/plastic
| 8-15
|
Marble
| 40/37
| Rubber/plastic
| 25-40
|
Profiling
| 7.0/7.5//8.0/
8.5/9
| Granite
| 37
| Plastic
| 9-18
|
Marble
| 37
| Plastic
| 25-45
|
Established in 1993, Sang Diamond Tools Co., Ltd. is an innovative company specializing in research and manufacture of various diamond tools, such as diamond segments, diamond blade, diamond wire saws, diamond core bits, diamond polishing pads, diamond cup wheels, and diamond profiling wheels.
Our products are widely used for cutting and grinding granites, marbles, concretes, asphalts, tiles, slabs, countertops, pavement, bricks, curb, steps, palisades, wall stones, pillars, memorials, and sculptures.
Based on advanced technology and comprehensively systematic research and analysis of cutting nature of diverse stones and non-metal materials at home and abroad, we have developed unique diamond tools of sawing, cutting, grinding, milling and drilling which are adaptable in different areas. Owing to the latest manufacturing techniques, the most stable products and the best services, our products enjoy high reputation in both domestic and foreign markets such as Europe, America, East Asia and Southeast Asia.
With high quality products at reasonable prices, we sincerely hope to set up close relationships with customers all over the world.
