| Prod Model: |
SGW-GQ-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
11.0~11.5mm |
| Beads: |
40PCS/M |
| Coating: |
Rubber/Plastic |
| Certificate: |
ISO9001:2008 |
| Best Price: |
Diamond Tools Factory |
| Quality: |
a |
| Performance: |
Stable Performance and Long Lifespan |
| Package Details: |
Carton, Box |
| Delivery Details: |
7-15 Days After Payment Received |
| Usage: |
Stone Cutting |
| Manufacturing Arts: |
Cutting |
| Kind: |
Stone Sawing Machine |
| Saw Blade External Diameter: |
11~11.5mm |
Product Description

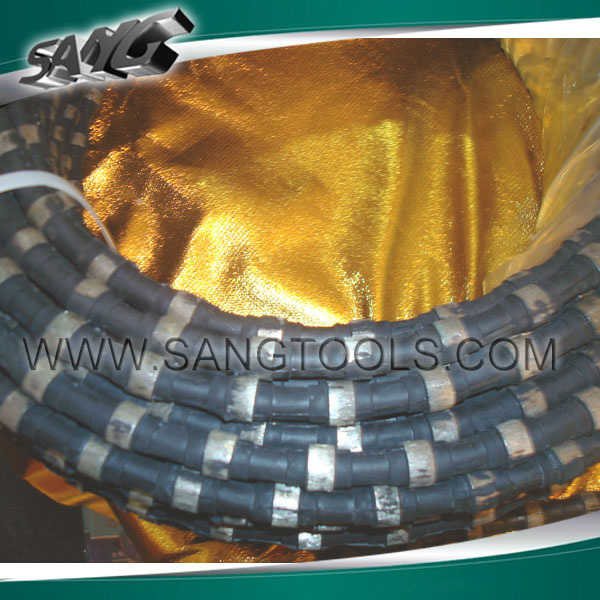

SANG Diamond Wire Saw is with high flexibility, therefore increase working lifetime.
Diamond Wire Features:
1) Diameter: 7.0 - 11.5mm
2) Fixation: Spring, plastic, rubber
3) Used for granite, marble, concrete, construction and stone processing
4) A loop of diamond wire mounted on a flywheel can be driven by a hydraulic Or electric motor
5) Hydraulic drives powered by electric, gasoline, or diesel units are preferred On wire saws when cutting reinforced concrete, since they are reversible And can provide continuously variable speed
6) Water is applied to the cut to provide cooling and to flush the cut
7) More efficient than circular saws, able to cut concrete of almost any thickness
|
Wire Specifications |
|
Item No |
Specification, mm |
Beads, pcs/m |
Application |
Coating |
|
WSQ-G |
D11,5 |
40 |
Granite quarry |
Rubber/Plastic |
|
37 |
|
D11,0 |
40 |
|
37 |
|
Wire Parameters |
|
Application |
Wire liner Speed, m/s |
Cutting Speed , m2/h |
Life, ,m2/m |
|
Soft granite |
30-35 |
15-30 |
20-35 |
|
Medium hard granite |
25-30 |
10-25 |
20-30 |
|
Hard gtanite |
20-25 |
3-10 |
7-15 |
|
Sandstone |
25-30 |
4-8 |
8-10 |
Established in 1993, Sang Diamond Tools Co., Ltd. is an innovative company specializing in research and manufacture of various diamond tools, such as diamond segments, diamond blade, diamond wire saws, diamond core bits, diamond polishing pads, diamond cup wheels, and diamond profiling wheels.
Our products are widely used for cutting and grinding granites, marbles, concretes, asphalts, tiles, slabs, countertops, pavement, bricks, curb, steps, palisades, wall stones, pillars, memorials, and sculptures.
Based on advanced technology and comprehensively systematic research and analysis of cutting nature of diverse stones and non-metal materials at home and abroad, we have developed unique diamond tools of sawing, cutting, grinding, milling and drilling which are adaptable in different areas. Owing to the latest manufacturing techniques, the most stable products and the best services, our products enjoy high reputation in both domestic and foreign markets such as Europe, America, East Asia and Southeast Asia.
With high quality products at reasonable prices, we sincerely hope to set up close relationships with customers all over the world.
