Diamond Wire Saw for Granite Quarry
| Price: |
US $ 28-50/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
GQR114 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter(mm): |
11.4 |
| Fixing: |
Rubber |
| Beads/M: |
40 |
| Cutting Material: |
Granite |
| Manufacturing Arts: |
Sinter |
| Usage: |
Stone Cutting |
| Graininess: |
40 Beads/M |
| Thickness: |
11.4mm |
| Shape: |
Wire Rope |
| Kind: |
Stone Cutting Wire Saw |
Product Description

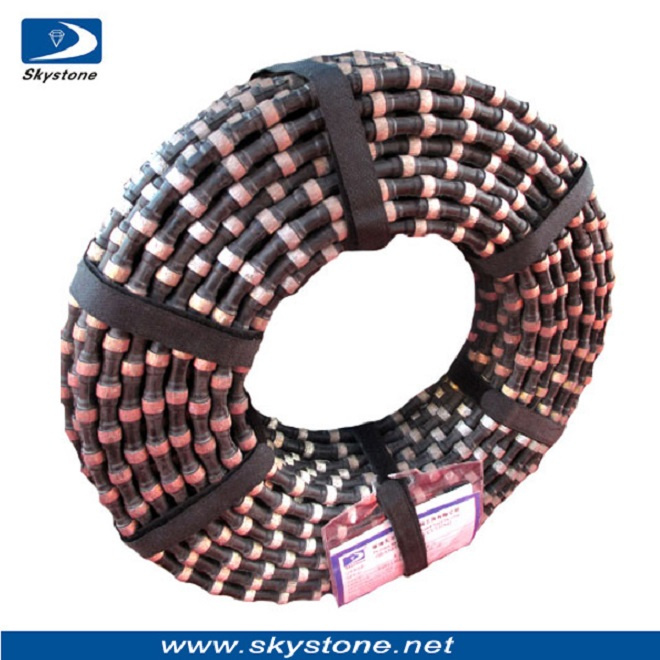

Diamond Wire saw for Granite Quarry
Product Description
1.provide different support designs and sizes beads according to the stone types.
2.Independently developed the special rubber and vulcanized technique to ensure that the diamond wires can work in all sorts of bad environment.
3.The rubber and cable sticking together tightly makes good bonding, and this can be more strikes during the work.
4.The vulcanised rubber easily withstands increases in temperature caused by badly controlled water spraying, which often happens in a quarry.
5.Strong flexibility can reduce the cut-in-one-side problem, and protect cable well when it used for small curvature radius(beginning and end of quarry cuts).
| Model No. | Diameter (mm) | Fixing Type | Beads/M | Material type | Sawing Speed (mm/min) | Lifetime (m2/m) |
| GQR11.4 | 11.4 | RUBBER | 40 | Class1-2
Class 3-4
Class 5 | 12-18
10-15
6-10 | 15-25
12-18
7-12 |
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
