Diamond Wire Saw for Marble and Granite Block Cutting

Prod Model:	JDKWSS002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Diamond Wire Saw
Stone Cut:	Granite, Marble, Sandstone, Limestone
Work Condition:	Wet Cutting
Working Place:	Stone Quarry and Stone Processing Factory
Coated Method:	Rubber, Plastic, Spring, Spring+Rubber
Customized:	Customized
Usage:	Stone Cutting
Manufacturing Arts:	Sinter
Kind:	Stone Sawing Machine
Saw Blade External Diameter:	7.2mm-11.5mm

Product Description

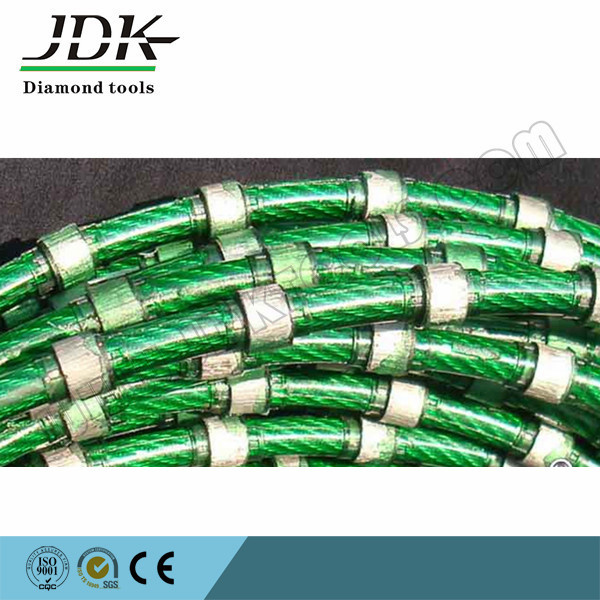

Diamond WIre Saw For Granite and Marble Squaring and Block Cutting Wire Saw
Items
1.Diameter :9.0mm--11.5mm
2.28/33/37/40 pieces beads/Mtr
3.Rubber coated,Spring coated,Plastic coated.
3.Super quality diamond wires at competitive price.

Brife introduction
Diamond wires for marble and granite block is now widely recognized as the good solution for granite,marble,sandstone and limestone processing work, due to it's relatively low comprehensive cost and high output offered.

Diamond wire saw with vulcanised rubber is with exceptional advantages for quarrying and squaring  of hard materials like granite, sandstone and slate etc.

Diamond wire saw with spring is special  for quarrying of soft materials like marble, and limestone slate etc.
Diamond wire saw with high quality plastic is special  for stone processing work such as squairng and profiling cutting.

The Type and Size of DImaond Wire saw

Material	Application	Diameter (mm)	Height  (mm)	Length   (mm)	Reinforcement	Beads/meter
Granite	Profiling	8	6	9.5	Plastic	37
Granite	Profiling	8.5	6	9.5	Plastic	37
Granite	Profiling	9.0	6	9.5	Plastic	37
Granite	Block Cutting	10.5	6.4	10	Plastic	37
Granite	Block Cutting	11	6.4	10	Plastic	37/40
Granite	Quarry	11	6.4	11.5	Plastic/Rubber	40
Granite	Quarry	11.5	6.4	11.5	Plastic/Rubber	40
Marble	Profiling	8	6	9.5	Plastic	37
Marble	Profiling	8.5	6	9.5	Plastic	37
Marble	Profiling	8.8	6	9.5	Plastic	37
Marble	Block Cutting	10.5	6.4	10	Plastic	37
Marble	Block Cutting	11	6.4	10	Plastic	37
Marble	Quarry	11	6	9.5	Spring	28
Marble	Quarry	11	6	9.5	Plastic	37
Marble	Quarry	11.5	6.4	11.5	Rubber	40
Concrete	Cutting	10.5	6.4	10	Rubber+Spring	40
Concrete	Cutting	10.5	6.4	10	Plastic+Spring	40
Concrete	Cutting	11.5	6.4	10	Rubber+Spring	40
Concrete	Cutting	11.5	6.4	10	Plastic+Spring	40


The technical information is only for reference.

Application.
JDK Diamond wire saws for stone cutting sell very well in more than 40 copuntries.
How To Buy Our diamond wire saw?
1)Tell us which type diamond wire and size do you need..
2)Tell us the harness of the stone.(soft,medium or hard).
3)Make the payment after the negotiation.
Terms of Payment
TT, Western Union,
As for bulk order, L/C is also available
100% payment before delivery

Ways of transportation
1.All the diamond wires will be manufactured and sent in 3-10 days after receiving your payment.
2.As for urgent order or sample order with light weight, we recommends Express Service.
3.As for normal (regular) order weighting over 45kgs, we recommends Air Cargo.
4.As for big diameter saw blade or order with heavy weight, we  recommends Sea Cargo.
5.We will inform you the approximate shipping date before order placing.

After-sale service
1. Our technist will test diamond segment before they leave the factory
2. We would give the whole support for customer in raw material formula, selection of extrude saw blade technique and  operation training on the spot
3. We also can supply high quality diamond saw segments and reasonable price depends on customers requests(pictures  or samples
4. We also provide OEM service.
