| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Stone Cutting |
| Manufacturing Arts: |
Sinter |
| Kind: |
Stone Sawing Machine |
Product Description

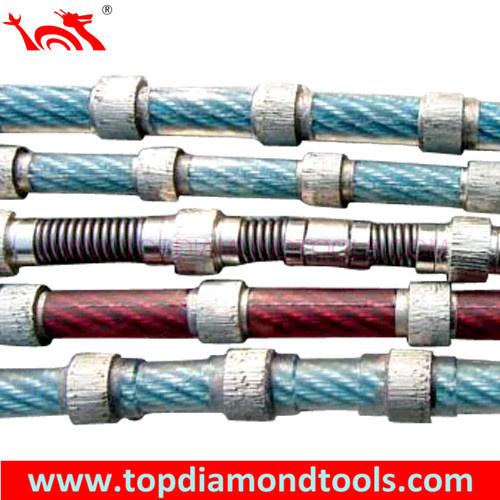

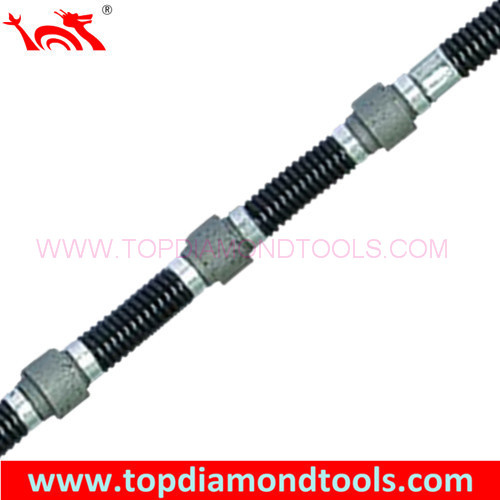

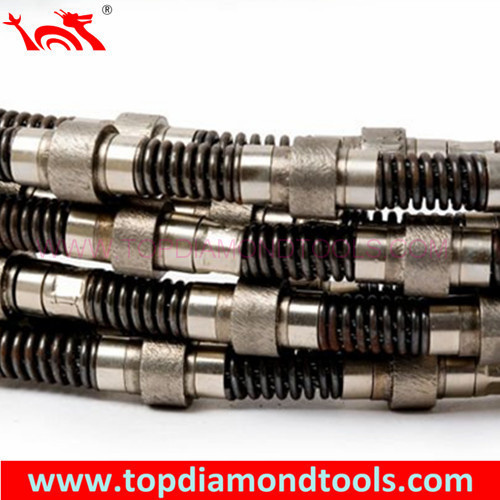

Diamond wire used for marble quarry which can vastly improve the exploiting efficiency and reduce the waste of quarry resource. It is safety when operation & benefit in environmental protection.
· To be able to used for great area marble quarries cutting;
· To get high percentage of forming dimension stone;
· High manufacture efficiency;
· Safety, low-noise, no-dust and friendly surroundings;
· Low cutting cost
|
Item No. |
Diameter(mm) |
Fixing Type |
Beads/m |
Material type |
Sawing speed(m2/h) |
Lifetime(m2/m) |
Line speed(m/s) |
Remark |
|
TMQ11S |
φ 11 |
Spring |
28/30/32 |
Class A:
White Crystalline
Travertine
Class B:
Compact
Class C-D
Coloured abrasive |
10-20
8-16
5-8 |
30-55
15-35
10-25 |
35-40
35-40
33-40 |
Sintered |
|
TMQ11R |
φ 11 |
Rubber |
40/36 |
|
TMQ11SD |
φ 11 |
Spring |
30 |
A_ D: Dry cutting |
7_ 12 |
10-15 |
35-40 |
Sintered |
