| Prod Model: |
SRC114 |
| Rubber With Steel: |
Rubber with Steel |
| Shape: |
Round |
| Manufacturing Arts: |
Sinter |
| Usage: |
Stone Cutting, Granite, Marble, Limestone, Slate |
| Brand: |
Skystone |
| Customized: |
Customized |
| Graininess: |
38-40beads Per Meter |
| Thickness: |
11.4mm |
| Kind: |
Granite Cutting |
| Saw Blade External Diameter: |
11.4mm |
Product Description

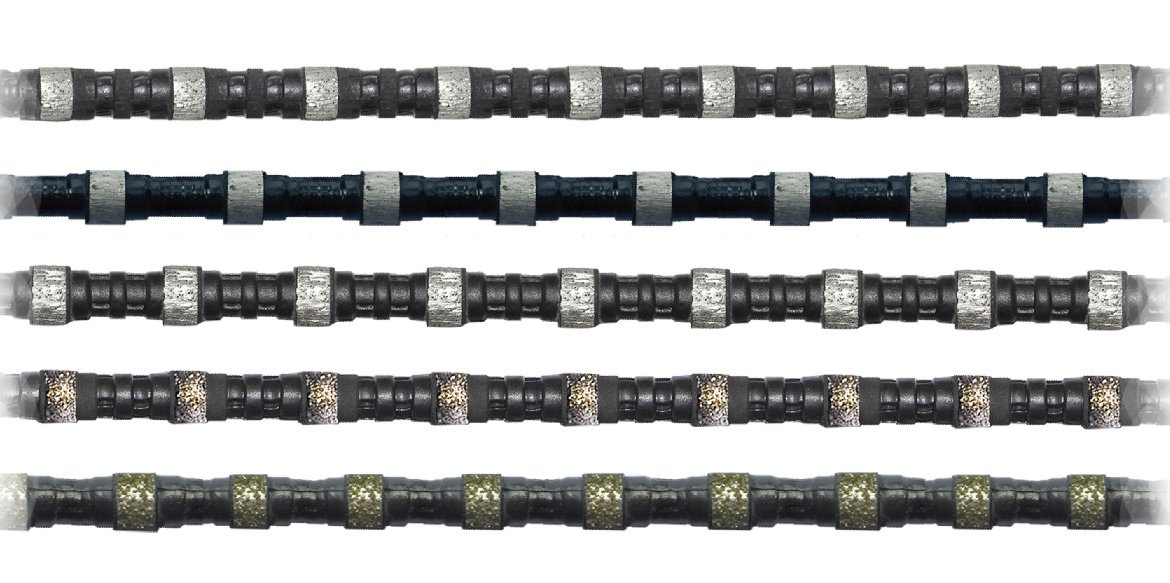

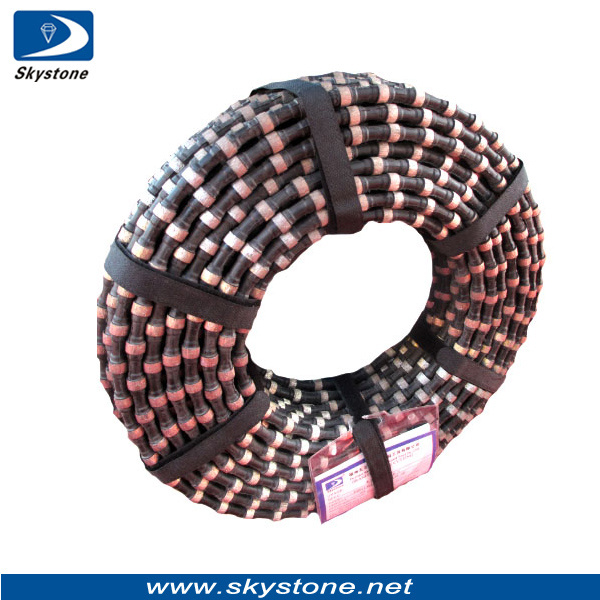

Wire for Granite Quarrying
There is no doubt that the apperance of diamond wires quarrying techineque is a revolution for stone mining . This technique has following advantage in mining:Improve the quarrying effciency ,work safety and environment friendly .High performacne brings good sized blocks without inner breaks ,and can exploit large dimension blocks with low quarry cost .
| Model | Diameter | Fixing | Beads/m | Material | Sawing Speed (/h) | Life Time (/M) | Line Speed
(m/s) |
| GQR11.4 | Φ11.4 | Rubber | 40 | Class1-2 | 20-30 | 25-35 | 28-33 |
| Class3-4 | 15-25 | 15-25 | 28-33 |
| Class4-5 | 10-15 | 10-15 | 28-30 |
1.We can provide different support designs and sizes beads according to the stone types.
2.We have indepenly developed the special rubber and vulcanized technique to ensure that we diamond wires can work in all sorts of bad environment.
3.The Performance of the wire depend on the scientific cutting process.
Emphasize Again :
The result of the wire depend on the scientific cutting process on the skilled worker have been trained more .
Advantage of rubber wire used in the granite quarrying :
1.The rubber and cable sticking together tightly makes good bonding ,and this can bear more strikes during the work .
2.The rubber hage good temperature resistance ,and it can be used wehn the water is not enough .
3.Strong flexibility can reduce the cut-in-one-side problem,and even can be used for smaller curvature radius .
4.Normally wire saw mcahine with 37-110kw main power are used in granite quarrying,according to the size of cutting area ,water supply can be controlled with 25-50L/min.
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
