| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Kind: |
Stone Sawing Machine |
| Manufacturing Arts: |
Sinter |
| Usage: |
Stone Cutting |
Product Description

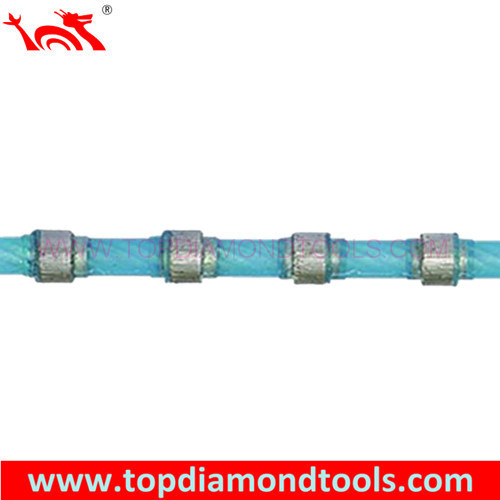

Theses kind Diamond Wire Saw can be used to dissect and get the standard marble block. They have following specialties:
· The wire allows significantly greater sawing heights than large discs. It is possible to cut large block by diamond wire;
· Thinner cutting width, and more precise;
· By virtue of its reliability, adjust the cutting techniques according to different hardness material;
· Noise nuisance generated by diamond wire saw is significantly less than produced by other sawing techniques;
· Less pollution
Diameter
(mm) | Code No. | Fixing Type | Beads No.
pcs/M | Material type | Linear speed (m/s) | Sawing speed (mm/min) | Wire life(m2/m) |
| 11.0 | TGS11 | Plastic | 37 | Class 1-2
Class 3-4
Class 5 | 28-30
26-28
24-28 | 12-20
8-15
6-10 | 13-20
9-14
8-10 |
| 10.5 | TGS10.5 | Plastic | 37 |
| 10.0 | TGS10 | Plastic | 37 |
