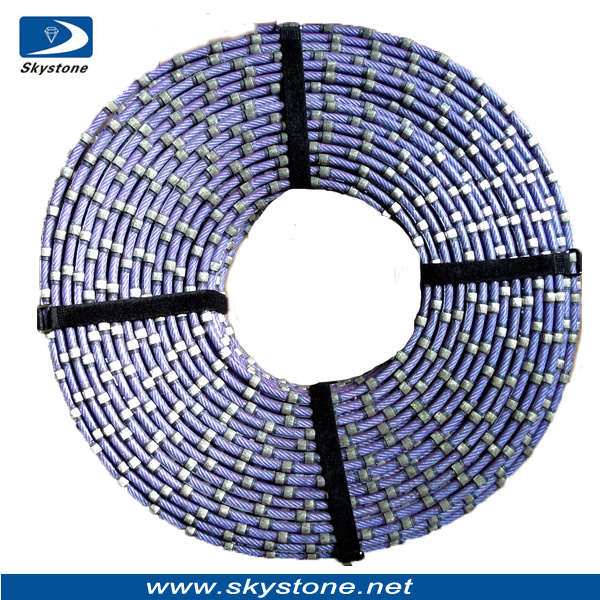

Diamond Wire Saw for Stone Block Dressing

Diamond Wire Saw for Stone Block Dressing
Price: US $ 48-50/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 10/Meter
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: GCP
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fixing: Plastic / Rubber
Customized: Customized
Usage: Stone Cutting
Manufacturing Arts: Sinter
Graininess: 40beads/M
Thickness: 11.4mm/ 11mm/ 10.5mm
Shape: Wire Rope
Brand: Skystone
Kind: Diamond Wire Saw
Saw Blade External Diameter: 11.4mm/ 11mm/ 10.5mm

Product Description

1.Not much block size limited for wire saw stone cutting.
2.inter-space is thinner and more precision.
Company Information

   Skystone has been devoting to manufacture diamond tools for the stone industry since 1994,which has a professional diamond wire saw manufacturing factory ,a stone machine maufacturing factory, a diamond tool R&D center, a equipment R&D center,a mining project technology center and a building cutting technology center. Our range of wires covers all the needs in quarries as well as in processing for marble, granite and abrasive materials. Our product performance have been widely proven in the world, and they are exported to Brazil, Iran, Norway, South Africa, Turkey, Russia, Poland and other 30 countries.




Product Description



Wires for stationary machines


Diamond wire for squaring and blocks cutting


Advantages:

1.There is not much block size limited for wire sawing compare with disk saw.
2.The wire saw inter-space is thinner and more precise than the large disk saw (deviation < 1 mm)
3.Wire saw cutting is more effective and relatively cheaper in long term working.
4.By virtue of its greater and greater reliability, wire sawing technology is more and more automated and thus becomes just as      productive as competing techniques.
5.Noise nuisance generated by diamond wire sawing is significantly less than that produced by other sawing techniques.



Specification:



ModelDiameter(mm)FixingBeads/mMaterialSawing speed (mm/min)Life time (m2/m)line speed   (m/s)
 GCP11.411.4 plastic 40

 class     1-2

 class     3-4

class 5

    12-20



     8-15



     6-10

12-20



10-15



7-10

28-30



28-30



26-30

 GCR11.411.4 rubber 40
 GCP11.0 11.0 plastic 37/40
 GCR11.011.0rubber 40
 GCP10.5 10.5 plastic 37



 Note: Efficiency is measured by down-feed per min.

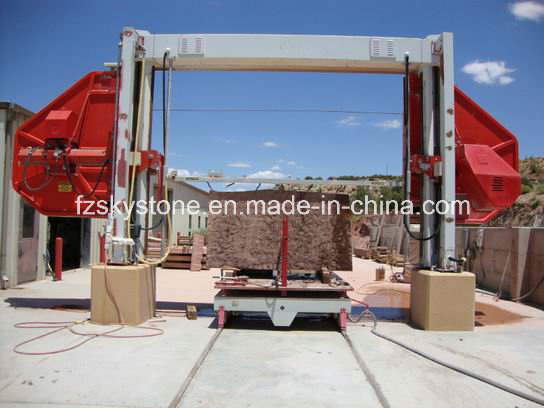

Skystone Diamond wire in the factory:











Profiling - a complementary application for stationary machines.


The introduction of new numerically controlled machines allows the shaping of complex forms in large production getting easily.



Advantages:



The use of our reliable diamond wire for shaping makes possible the optimum use of excellent quality materials ;
The low cost of the cuts, the profiling precision and the surface quality indisputably make our diamond wire very competitive;
The diamond wire used in profiling machines is similar to that found in stationary machines, but it is generally of a smaller diameter (8.2mm).




Specification:

ModelDiameter(mm)FixingBeads/mMaterialSawing speed (mm/min)life time (m2/m)Line speed (m/s)
GPP8.88.8plastic    37

class  1-2

class  3-4

class

 4-5

12-20



8-15



7-10

12-20



10-15



7-10

26-30



26-30



26-30

GPP8.28.2plastic



Note: Efficiency is measured by down-feed per min.

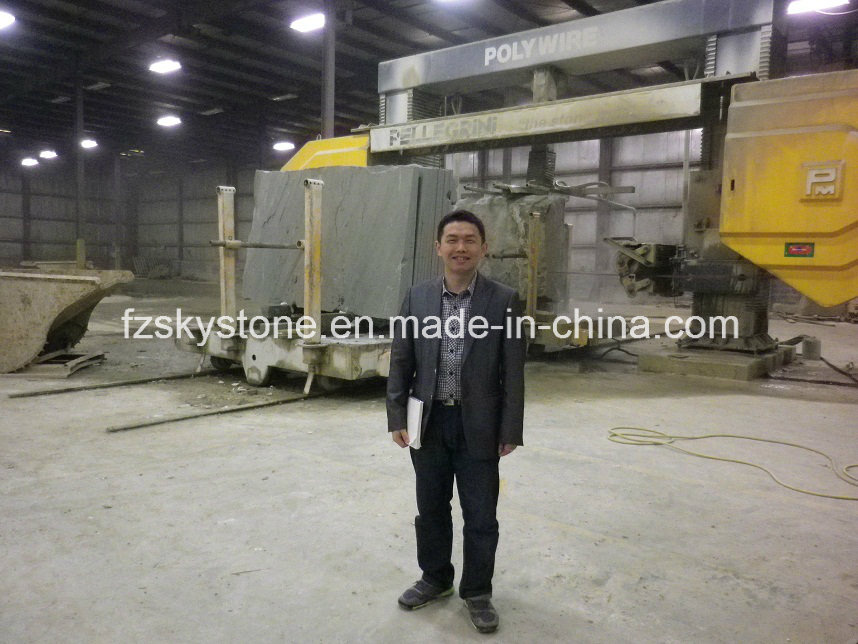

Skystone Diamond wire in factory:













Stone Fair

Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.

We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
