| Price: | US $ 48-50/Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Meter |
| Pay Type: | L/C,T/T,D/P,Paypal |
| Prod Model: | GCP |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fixing: | Plastic / Rubber |
| Manufacturing Arts: | Sinter |
| Usage: | Stone Cutting |
| Customized: | Customized |
| Graininess: | 40beads/M |
| Thickness: | 11.4mm/ 11mm/ 10.5mm |
| Shape: | Wire Rope |
| Kind: | Diamond Wire Saw |
| Brand: | Skystone |
| Saw Blade External Diameter: | 11.4mm/ 11mm/ 10.5mm |
Skystone has been devoting to manufacture diamond tools for the stone industry since 1994,which has a professional diamond wire saw manufacturing factory ,a stone machine maufacturing factory, a diamond tool R&D center, a equipment R&D center,a mining project technology center and a building cutting technology center. Our range of wires covers all the needs in quarries as well as in processing for marble, granite and abrasive materials. Our product performance have been widely proven in the world, and they are exported to Brazil, Iran, Norway, South Africa, Turkey, Russia, Poland and other 30 countries.
Wires for stationary machines
Diamond wire for squaring and blocks cutting
Advantages:
1.There is not much block size limited for wire sawing compare with disk saw.
2.The wire saw inter-space is thinner and more precise than the large disk saw (deviation < 1 mm)
3.Wire saw cutting is more effective and relatively cheaper in long term working.
4.By virtue of its greater and greater reliability, wire sawing technology is more and more automated and thus becomes just as productive as competing techniques.
5.Noise nuisance generated by diamond wire sawing is significantly less than that produced by other sawing techniques.
Specification:
| Model | Diameter(mm) | Fixing | Beads/m | Material | Sawing speed (mm/min) | Life time (m2/m) | line speed (m/s) |
| GCP11.4 | 11.4 | plastic | 40 | class 1-2 class 3-4 class 5 | 12-20
8-15
6-10 | 12-20
10-15
7-10 | 28-30
28-30
26-30 |
| GCR11.4 | 11.4 | rubber | 40 | ||||
| GCP11.0 | 11.0 | plastic | 37/40 | ||||
| GCR11.0 | 11.0 | rubber | 40 | ||||
| GCP10.5 | 10.5 | plastic | 37 |
Note: Efficiency is measured by down-feed per min.

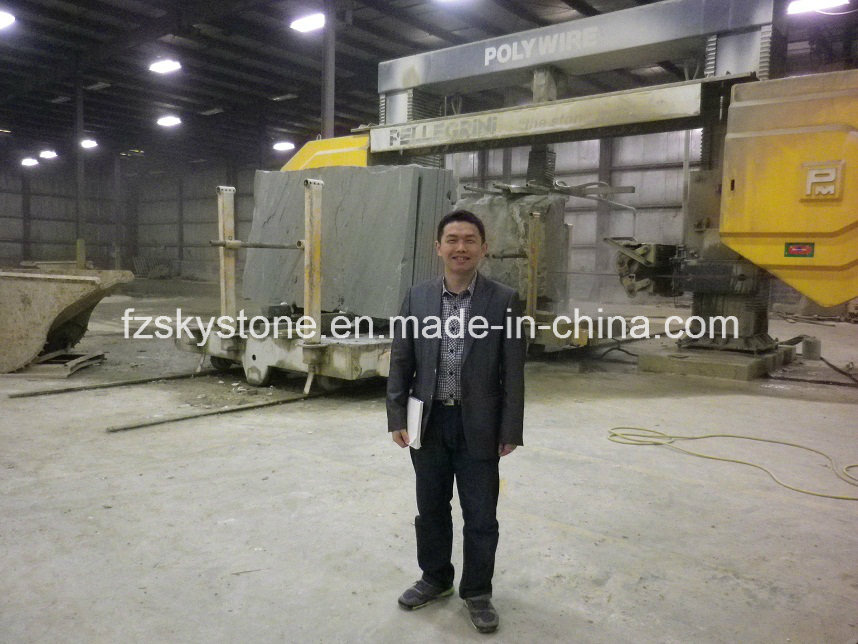

Skystone Diamond wire in the factory:
Profiling - a complementary application for stationary machines.
The introduction of new numerically controlled machines allows the shaping of complex forms in large production getting easily.
Advantages:
The use of our reliable diamond wire for shaping makes possible the optimum use of excellent quality materials ;
The low cost of the cuts, the profiling precision and the surface quality indisputably make our diamond wire very competitive;
The diamond wire used in profiling machines is similar to that found in stationary machines, but it is generally of a smaller diameter (8.2mm).
Specification:
| Model | Diameter(mm) | Fixing | Beads/m | Material | Sawing speed (mm/min) | life time (m2/m) | Line speed (m/s) |
| GPP8.8 | 8.8 | plastic | 37 | class 1-2 class 3-4 class 4-5 | 12-20
8-15
7-10 | 12-20
10-15
7-10 | 26-30
26-30
26-30 |
| GPP8.2 | 8.2 | plastic |
Note: Efficiency is measured by down-feed per min.
Skystone Diamond wire in factory:
