| Prod Model: |
SY-DWS-1000 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Name: |
Diamond Wire |
| Diameter(mm): |
7.2 - 11.5 |
| Inner Hole(mm): |
3.6 - 5.2 |
| Height(mm): |
6.0/6.5 |
| Technical: |
Sinter |
| Fixing Method: |
Rubber |
| Supplier: |
Quanzhou Sunny Superhard Tools Co., Ltd. |
| Grade: |
a-Grade |
| Delivery Detail: |
7 - 15 Days |
| Manufacturing Arts: |
Sinter |
| Usage: |
Stone Cutting |
| Customized: |
Non-Customized |
| Graininess: |
Success Formula for Stone Concrete Cutting |
| Thickness: |
Depend on Diameter |
| Shape: |
Diamond Wire Saw for Stone Cutting |
| Kind: |
Diamond Wire Saw for Stone Cutting |
| Brand: |
Sunny |
| Saw Blade External Diameter: |
Diameter of Bead:8.0-11.5mm |
| Specification: |
11.5mm 11mm 10.5mm 9mm 8.5mm 7.3mm |
Product Description

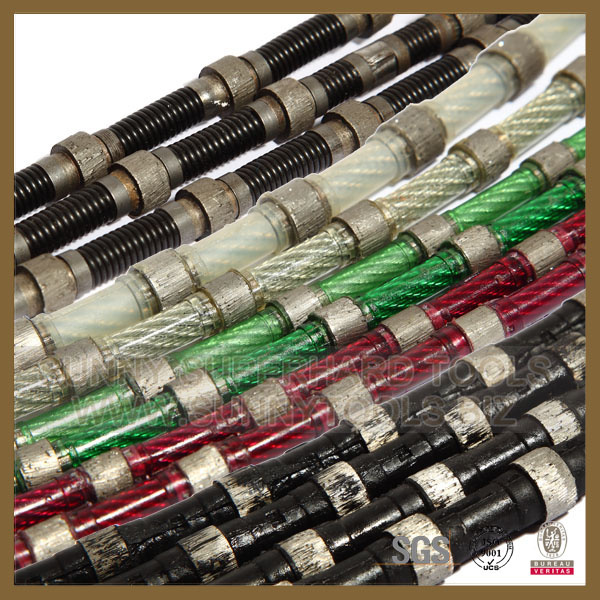

Diamond Wire Saw for Stone Cutting
1. Our diamond cutting wire saw is one of the most advanced tools for marble quarrying, block squaring & profiling.
2. Compared with traditional way, quarrying by diamond wire has the advantages of high efficiency, less waste of material, safety, low noise, etc.
3. There are various specifications can be choose.
The main spec. Series of diamond beads are from 11.5mm, 11mm, 10.5mm, 10mm, 9mm, 8mm, and 7.5mm
Specifications
1. Quarry, special shape processing
2. High sawing speed in diamond cutting wire saw
3. Large and rapid cutting dimension
Advantage
High work efficiency
Durable and long cutting life
Environment-friendly
Reasonable price
Good quality and best service will be provided
More informance:
The DIAMOND WIRE SAW consist of:
A caring wire out of steel
Diamond beads
A rubber or plastic coating
Diamond wire saw is widely used for quarrying, stationary and profiling, it can cut all types of stone and concrete, including the hardest or most abrasive one. It is characterized with high efficiency, lower cost, and safe and environment protection.
Our wire saw have been using very well and have a steady quality. We can offer you not only beads but also the other part of the wire saw.
[2013080906]
[2013081306]
| Model | Diameter | Inner hole | Height | Technology | Cutting Material |
| DB-SY115 | 11.5mm | 5.2mm | 6.0mm
6.5mm | Sintered
or
Vacuum Brazed | Granite
Marble
Basalt
Sandstone
Limestone
Travertine
Reinforced Concrete
Steel |
| DB-SY110 | 11.0mm |
| DB-SY105 | 10.5mm |
| DB-SY90 | 9.0mm | 4.8mm |
| DB-SY85 | 8.5mm |
| DB-SY80 | 8.0mm | 3.6mm |
| DB-SY75 | 7.5mm |
| DB-SY72 | 7.2mm |
