| Price: | Negotiableset |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | TSY-37G |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 37kw Weight 1.95tons: | Make by Steel and Electrical Elements |
| Customized: | Customized |
| Condition: | New |
| Quality: | Good |
| Type: | CNC Cutting Machine |
| Usage: | Slate,Limestoe |
| Application: | Stone Industry |
| Source Voltage: | 380V |
| Automation: | Automatic |

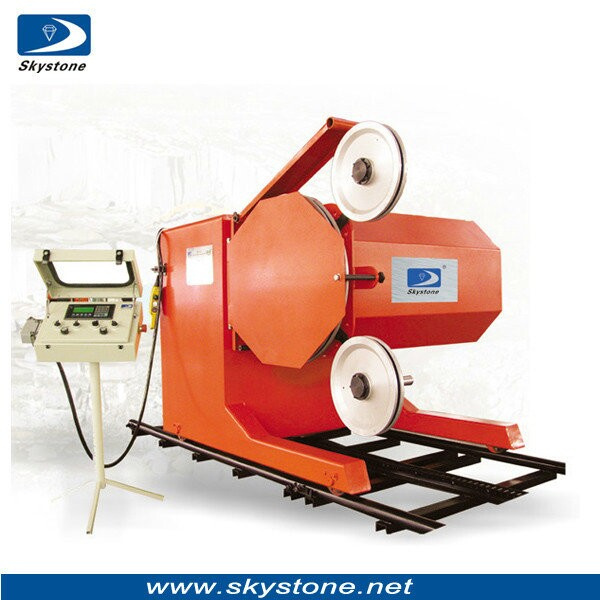

TSY G SERIES
Advantages:
1.Manufactured with first quality materials and components, the TSY G series is a strong and reliable machine that allows to easily make great cuts on any kind of material.
2.The feed movement is automatically controlled by PLC and inverter that allows a precise and complete management of the diamond wire during the cutting , so that to obtain the best output and production on any material.
3.The machine have protection functions which including: wire broken, machine overload, cutting finished,and other malfunction happened, so that to maintain the best efficiency of the system.
4.The motor head can move per side, in order to make two parallel cuts without moving the machine,which is driven by motor with Position Limited Function. The same device allows to make horizontal cuts at ground level without the use of any auxiliary accessories.
G SERIES INVERTER
The model with vectorial inverter control system allows to vary the diamond wire speed from 0 to 40 m/sec. in order to optimize its consumption and get the best output.
Specification:
1.The wire tension and cutting current is closed loop automatic controlled by PLC and inverter.
2.The cutting process can be automatical controlled accurately.
3.The movement and rotation of the cutting head is driven by motor with position Limitation Protection.
4.Machine protection functions including:wire broken,Machine overload,cutting finished,and others malfunction happened
5.Display an saving with digitization:the value of cutting current,linear speed and moving speed indicated on the panel,and the cutting time can be saved.
6.The machine without phase request.It is needn't to change and distinguish.
| Main motor power | 37-55-75-110kw |
| Total power | 40-58.75-78.75-114.5kw |
| Wire tension and cutting current | automatic controled by PLC and inveter |
| Diameter main flywheel | 800mm |
| Lateral movement of cutting head | 1.8 or 2 m |
| Cutting head rotation | 360° |
| Linear wire speed | 0-40 m/s |
| length of rails | 3m*3 |
| Traveling speed | 0-150m/h |
| Workind condition | -15-40 °c humidity < 95% (without dew) |
