| Prod Model: |
TSY-15G-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
1.5 Tons |
Product Description
Product Description

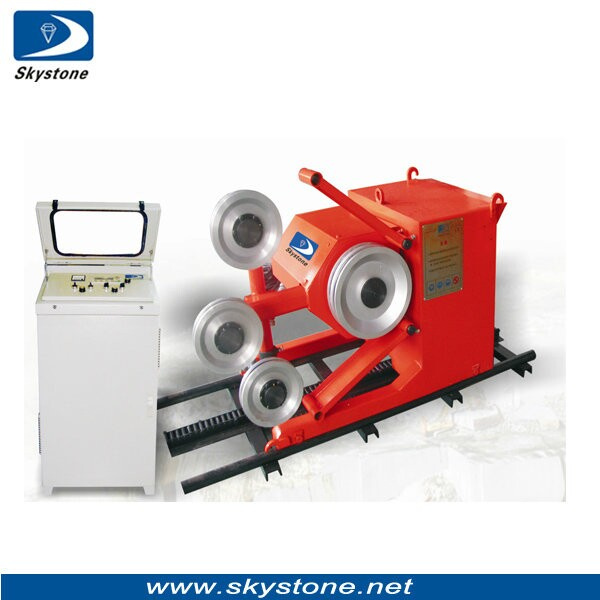

TSY G SERIES
Advantages:
1.Manufactured with first quality materials and components, the TSY G series is a strong and reliable machine that allows to easily make great cuts on any kind of material.
2. The feed movement is automatically controlled by PLC and inverter that allows a precise and complete management of the diamond wire during the cutting , so that to obtain the best output and production on any material.
3. The machine have protection functions which including: wire broken, machine overload, cutting finished,and other malfunction happened, so that to maintain the best efficiency of the system.
4. The motor head can move per side, in order to make two parallel cuts without moving the machine,which is driven by motor with Position Limited Function. The same device allows to make horizontal cuts at ground level without the use of any auxiliary accessories.
G SERIES INVERTER
The model with vectorial inverter control system allows to vary the diamond wire speed from 0 to 40 m/sec. in order to optimize its consumption and get the best output.
Specification:
Main motor power | 15kw |
| Total power | 15.75kw |
| Wire tension and cutting current | automatic controled by PLC and inveter |
| Diameter main flywheel | 800mm |
| Lateral movement of cutting head | 1.8 m |
| Cutting head rotation | 360 |
| Linear wire speed | 0-40 m/s |
| length of rails | 3m*3 |
| Traveling speed | 0-150m/h |
| Workind condition | humidity < 95% (without dew) |
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
