| Prod Model: |
HSJ-15/37/55 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
25 Days |
| Type: |
Hydraulic Cutting Machine |
| Application: |
Stone Industry |
| Automation: |
Automatic |
| Usage: |
Blocks |
| Source Voltage: |
Customized |
Product Description

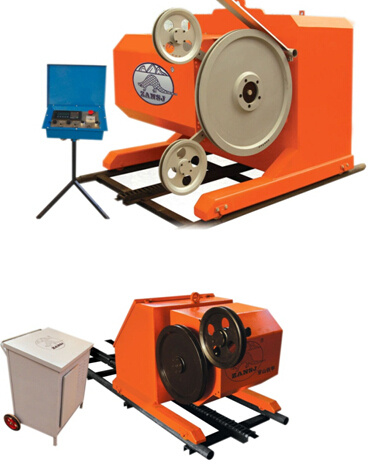

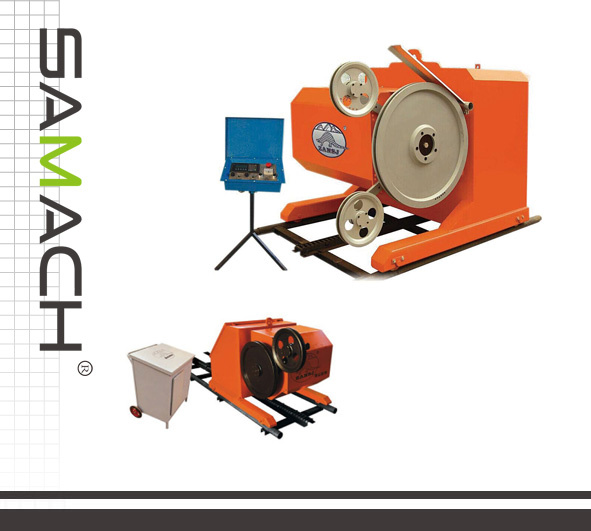

Diamond Wire Saw Machine
Wire Saw Features:
The machine uses dual-frequency + unique PLC control system design,it can automatical control the Wire Saw feeding speed according to machine load in cutting process,maintain the saw rope tension during the cutting process.to extend the service life and ensure the continuity of the cutting process.
The cutting line speed can be adjusted in the range of 0-39m/s,in order to adapt to different hardness of the stone mines cutting(such as:marble,granite,sandstone,slate,etc.)
The nose section can motor drive 360 degrees,in order to meet the horizontal,vertical,and any other angle of the cutting.It can electric sliding in the range of 0-300mm, in order to the flywheel and rope hole butt joint.
Self-protection function,it can automatical stop running in broken rope,overload,over voltage and other emergency situations,to avoid damage to the operator and the machine.
With automatic control functions,it can realize unmanned stations for a short time in needed.with independent remote control cabinet,so that the operator can control the machine far away,ensure the personnel security.
| MODEL | HSJ-15 | HSJ-37 | HSJ-55 |
| Diameter of driving wheel(mm) | 500 | 700 | 800 |
| Saw wire length(m) | 25-40 | 50-80 | 80-100 |
| Saw wire diameter(mm) | 11.5 | 11.5 | 11.5 |
| Sawing efficiency(m2/h) | 3-6 | 8-19 | 9-21 |
| Main flywheel line speed(m/s) | 0-39 |
| Split width of stone(m) | 1.8 | 4 | 5 |
| Host moving speed(m/h) | 0-50 | 0-60 | 0-60 |
| Main motor power(kw) | 15 | 37 | 55 |
| Head rotating degree | ±180° | ±360° | ±360° |
| Head move stroke(mm) | / | 300 | 300 |
| Guide length(m/section) | 2*3 | 2*4 |
| Environment temperature of machine using | -15-- +40 |
| NW(kg) | 430 | 1900 | 2000 |
| Overall dimensions(mm) | 1200*800*750 | 1750*1240*1300 | 1750*1240*1300 |
QingDao Samac International Trading Co., Ltd. Specializes in the export of woodworking, glass processing, metal processing and Stone Processing machinery. Our woodworking machinery series is mainly used to process real wood, wooden plates, plywood and related types of wood.
Since the foundation of our company, we have always introduced first-class Chinese machinery to the entire world. We cooperate with many local famous factories on R&D to keep in pace with this modern world. Our company aims to help our customers select the best quality and most suitable products for their needs. Simultaneously, we also undertake OEM/ODM projects which can satisfy customers' special requirements.
Quality: We are scrupulous about every detail, professional QC and strict checking porcedure ensure our work and guarantee eac machine which is in it's best presentation. All our goods pass through our rigid quality control before shipment.
With high-quality products, powerful strength, a professional team and excellent after-sales service, we have gained a good reputation among our customers. It is our sincere desire to develop more customers' business through trustworthy cooperation.
