| Prod Model: |
HSJ 37 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Host Moving Speed(M/H): |
0-50 |
| Application: |
Stone Industry |
| Automation: |
Automatic |
| Cutting Ability: |
Adjutable |
Product Description

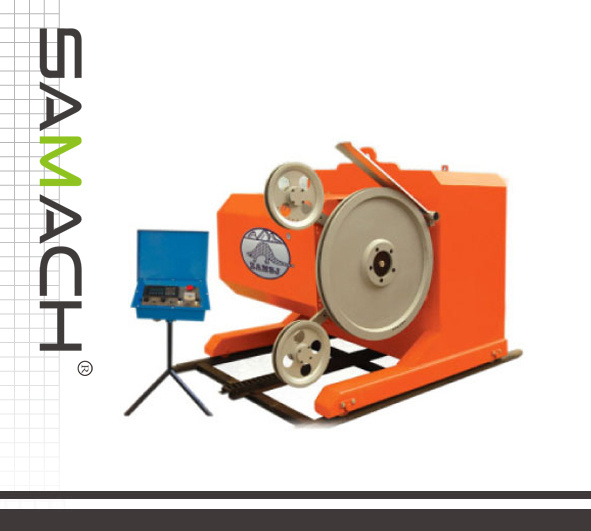

DIAMOND WIRE SAW MACHINE HSJ 37
Wire Saw Features:
The machine uses dualfrequency + unique PLC control system design,it can automatical control
the Wire Saw feeding speed according to machine load in cutting process,maintain the saw rope
tension during the cutting process.to extend the service life and ensure the continuity of the cutting process.
The cutting line speed can be adjusted in the range of 0~39m/s,in order to adapt to different hard-ness of the stone mines cutting(such as:marble,granite,sandstone,slate,etc.)
The nose section can motor drive 360 degrees,in order to meet the horizontal,vertical,and any other
angle of the cutting.It can electric sliding in the range of 0~300mm, in order to the flywheel and rope
hole butt joint.
Selfprotection function,it can automatical stop running in broken rope,overload,over voltage and
other emergency situations,to avoid damage to the operator and the machine.
With automatic control functions,it can realize unmanned stations for a short time in needed.
with independent remote control cabinet,so that the operator can control the machine far away,
ensure the personnel security.
Machine inside features:
1.The internal parts of the wire saw machine is free of lubrication spare parts, can guarantee the
machine continuous work long time.
2. Equipment control system software using the latest Italian wire saw automatic program, work
automatically.
3. The machine appearance using the steel plate with 10 mm thickness welded together, excellent
working stability.
4.The walking part of equipment adopts increased and durable two stage gear drive directly,ensure
the equipment stability.
5.The standard accessories:
A triangular bracket, a steel wire scissor, a hydraulic clamp.
hydraulic clamp
steel wire scissor
triangular bracket
The optional accessories:
main flywheel
guide wheel
MODEL | HSJ-15 | HSJ-37 | HSJ-55 |
| Diameter of driving wheel(mm) | 500 | 700 | 800 |
| Saw wire length(m) | 25-40 | 50-80 | 80-100 |
| Saw wire diameter(mm) | 11.5 | 11.5 | 11.5 |
| Sawing efficiency(m2/h) | 3-6 | 8-19 | 9-21 |
| Main flywheel line speed(m/s) | 0-39 |
| Split width of stone(m) | 1.8 | 4 | 5 |
| Host moving speed(m/h) | 0-50 | 0-60 | 0-60 |
| Main motor power(kw) | 15 | 37 | 55 |
| Head rotating degree | ±180° | ±360° | ±360° |
| Head move stroke(mm) | / | 300 | 300 |
| Guide length(m/section) | 2*3 | 2*4 |
| Environment temperature of machine using | -15-- +40 |
| NW(kg) | 430 | 1900 | 2000 |
| Overall dimensions(mm) | 1200*800*750 | 1750*1240*1300 | 1750*1240*1300 |
