| Prod Model: |
wire saw 004 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Name: |
Diamond Wire |
| Diameter(mm): |
7.2 - 11.5 |
| Inner Hole(mm): |
3.6 - 5.2 |
| Height(mm): |
6.0/6.5 |
| Technical: |
Sinter Granite Wire Saw Cutting |
| Fixing Method: |
Rubber |
| Supplier: |
Quanzhou Sunny Superhard Tools Co., Ltd. |
| Grade: |
a-Grade |
| Delivery Detail: |
7 - 15 Days |
| Manufacturing Arts: |
Sinter |
| Usage: |
Stone Cutting |
| Customized: |
Non-Customized |
| Graininess: |
Success Formula for Stone Concrete Cutting |
| Thickness: |
Depend on Diameter |
| Shape: |
Diamond Wire |
| Kind: |
Diamond Wire |
| Brand: |
Sunny |
| Saw Blade External Diameter: |
Diameter of Bead:8.0-11.5mm |
| Specification: |
11.5mm 11mm 10.5mm 9mm 8.5mm 7.3mm |
Product Description

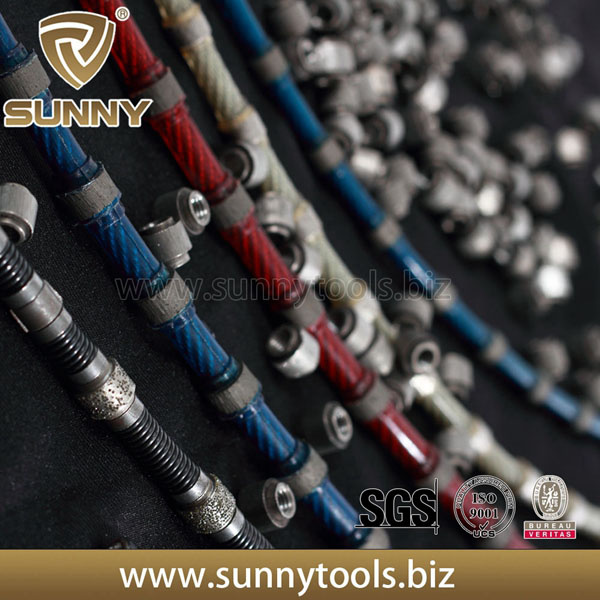

Diamond Wire Saw for Granite Cutting, Diamond Wire Saw
1. Our diamond cutting wire saw is one of the most advanced tools for marble quarrying, block squaring & profiling.
2. Compared with traditional way, quarrying by diamond wire has the advantages of high efficiency, less waste of material, safety, low noise, etc.
3. There are various specifications can be choose.
The main spec. Series of diamond beads are from 11.5mm, 11mm, 10.5mm, 10mm, 9mm, 8mm, and 7.5mm
Specifications
1. Quarry, special shape processing
2. High sawing speed in diamond cutting wire saw
3. Large and rapid cutting dimension
Advantage
High work efficiency
Durable and long cutting life
Environment-friendly
Reasonable price
Good quality and best service will be provided
More informance:
The DIAMOND WIRE SAW consist of:
A caring wire out of steel
Diamond beads
A rubber or plastic coating
Diamond wire saw is widely used for quarrying, stationary and profiling, it can cut all types of stone and concrete, including the hardest or most abrasive one. It is characterized with high efficiency, lower cost, and safe and environment protection.
Our wire saw have been using very well and have a steady quality. We can offer you not only beads but also the other part of the wire saw.
[2013080906]
[2013081306]
| Model | Diameter | Inner hole | Height | Technology | Cutting Material |
| DB-SY115 | 11.5mm | 5.2mm | 6.0mm
6.5mm | Sintered
or
Vacuum Brazed | Granite
Marble
Basalt
Sandstone
Limestone
Travertine
Reinforced Concrete
Steel |
| DB-SY110 | 11.0mm |
| DB-SY105 | 10.5mm |
| DB-SY90 | 9.0mm | 4.8mm |
| DB-SY85 | 8.5mm |
| DB-SY80 | 8.0mm | 3.6mm |
| DB-SY75 | 7.5mm |
| DB-SY72 | 7.2mm |
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
