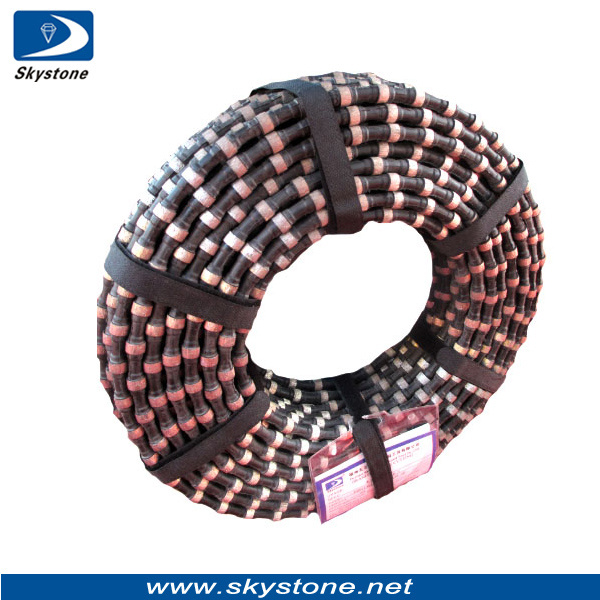

Diamond Wire Use for Granite Marble Quarry
| Price: |
Negotiable/Meter |
| Min Order: |
20/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GQR114 |
| Rubber With Steel: |
Rubber with Steel |
| Shape: |
Round |
| Manufacturing Arts: |
Sinter |
| Usage: |
Stone Cutting, Granite, Marble, Limestone, Slate |
| Customized: |
Customized |
| Graininess: |
38-40beads Per Meter |
| Thickness: |
11.4mm |
| Kind: |
Granite Cutting |
| Saw Blade External Diameter: |
11.4mm |
Product Description

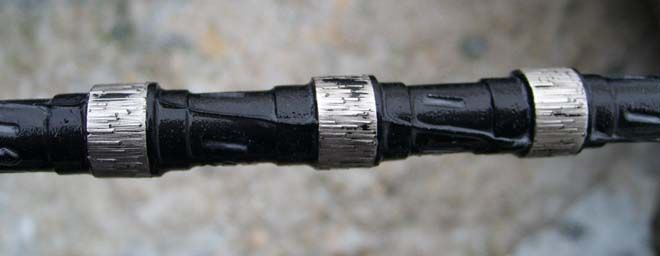

Diamond wire with rubber fitting has many advantages compared with plastic fitting.This type of wire have long lifetime, stable performance and are more flexible to different environment condtion.The advantage of rubber fitting ensures the wire is good before the beads wear out.This diamond wire have been widely used in stone quarrying and concrete cuttingA) Change the diameter according to the request of customersB) Supply different hardness of beads HRB (95-105)C) Supply different length of beadsD) We develop special rubber and the technology of vulcanization, make sure the diamond wire can work in all hard-working condition.| Model No. | Diameter (mm) | Fixing Type | Beads/M | Material type | Sawing Speed (mm/min) | Lifetime (m2/m) | Linear Speed (m/s) |
| GQR11.4 | 11.4 | RUBBER | 40 | Class1-2
Class 3-4
Class 5 | 12-18
10-15
6-10 | 15-25
12-18
7-12 | 28-33
28-33
28-30 |
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
