| Prod Model: |
MQR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fixed: |
Rubber |
| Usage: |
Abrasive and Carving |
| Manufacturing Arts: |
Sinter |
| Brand: |
Skystone |
| Kind: |
Stone Cutting |
Product Description

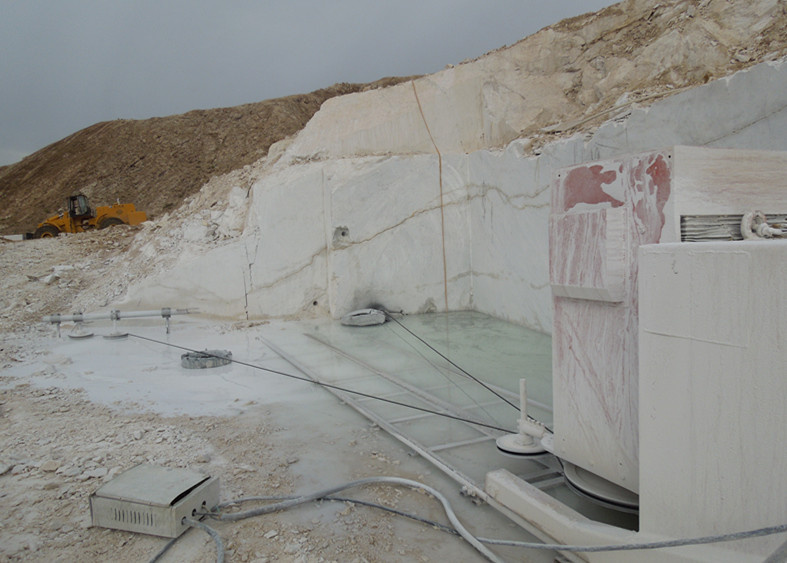

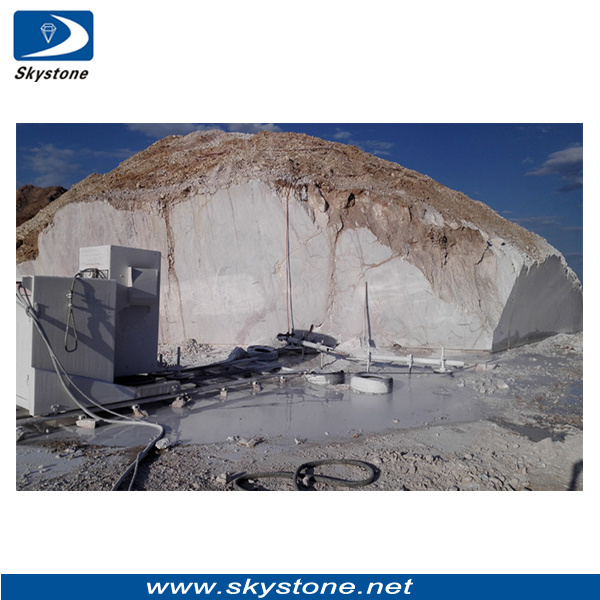

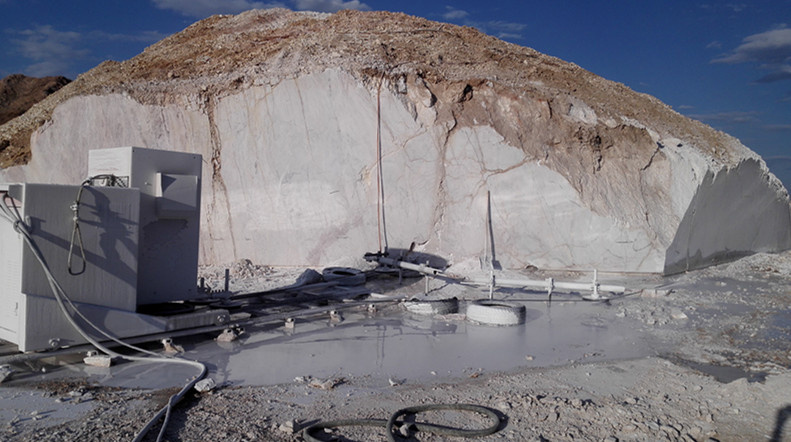

The diamond wire quarrying technique can highly improve the quarrying efficiency, reduce the waste of mining resource, and can exploit large dimension blocks. At the same time, it can be operated safely and it is good for environment protection.
Remark:1. We can provide different support designs and sizes beads according to the stone types
2. We have independently developed the special rubber and vulcanized technique to ensure that the diamond wires can work in all sorts of bad environment.
| Model No. | Diameter(mm) | Fixing Type | Beads/m | Material type | Sawing speed(m2/h) | Lifetime(m2/m) | Line speed(m/s) | Remark |
| MQS110 | φ 11 | Spring | 28/30/32 | Class A:
White Crystalline
Travertine
Class B:
Compact
Class C-D
Coloured abrasive | 10-20
8-16
5-8 | 30-55
15-35
10-25 | 35-40
35-40
33-40 | Sintered |
| MQR110 | φ 11 | Rubber | 40/36 |
| MQS11E | φ 11 | Spring | 28/30/32 | A--D | 15-25 | 10-30 | 35-40 | Electroplated |
| DMQS11 | φ 11 | Spring | 30 | A— D: Dry cutting | 7— 12 | 10-15 | 35-40 | Sintered |
| DMQS11E | φ 11 | Spring | 30 | A— D: Dry cutting | 7— 12 | 10-15 | 35-40 | Electroplated |
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
