| Prod Model: |
DIDTEKFTBV |
| Sizes: |
2''-48" |
| Media: |
Oil, Gas etc. |
| Standard: |
API 6D, BS5351, ASME B16.34 |
| Face To Face: |
ASME B16.10, API 6D |
| Certificate: |
Ce1521, ISO9001, Cu-Tr010/032, API 607, API 6fa |
| End Flanges: |
ASME B16.5/ASME B16.47 |
| Inspection And Test: |
API 598,API6d;100% Quantity Tested Before Delivery |
| Warranty Time: |
18 Months After Shipments/12 Months After Install |
| Delivery Detail: |
15 - 30 Days, Depends on The Order Quantity |
| Pressure Rating: |
ASME Cl, 150, 300, 600,1500 |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Application: |
Water Industrial Usage |
| Nominal Pressure: |
ANSI Class300 |
| Structure: |
Trunnion Ball Valve |
| Type: |
Trunnion Ball Valve |
| Temperature: |
-29ºC~+650ºC |
Product Description

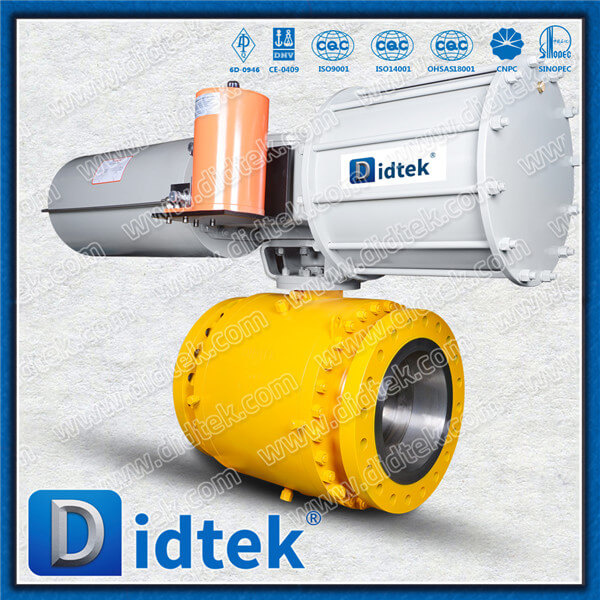

Didtek Industrial Oil Refinery Carbon Steel 2pc Trunnion Mounted Flanged Ball Valve With Pneumatic Actuator
Application & Function:
Didtek Forged Trunnion Ball Valve are suitable to stand the harsh service conditions often present in industrial and petroleum industry. These valves are recommended for tight shut-off in high pressure and arduous fluid applications.
Didtek Forged Trunnion Ball Valve designed the Side-Entry Trunnion-Mounted Ball Valves to assure bi-directional sealing of the valve with two independent floating seats. The design of these seats minimizes the torque required to operate the valve without losing the sealing power. This power is assured by zero differential pressure to the valve's maximum rated pressure. In addition, these repairable valves are manufactured to seal off both seats at the same time and to allow bleeding of the entrapped cavity pressure (DBB) with the ball in the closed position. The DBB feature allows for verifying that the seats are properly sealing.
Technical Specification
Brand: DIDTEK
Size Range: 2"-48''
Pressure Rating: ASME CL150,300,600
Material: A105
Temperature Range: -196°C~650°C
Applicable Standards:
Design: API6D, BS5351, ASME B16.34
Face to face: ASME B16.10, AP6D
End Flanges: ASME B16.5/ASME B16.47
Butt welded ends: ASME B16.25
Fire Safety: API607, API6A
Inspection and test: API 598, API6D
Other Information:
Valve Test: 100% quality tested before delivery
Valve Guarantee: 18 months after shipments or 12 months after installed
Valve Delivery: 15 - 30 days
Valve Sample: Sample Available by Didtek Valve
Valve Color: Customer request
Valve Packing: Plywood Case for Ball Valve
MOQ: 1 Set
Valve Certificate: API 6D, CE1521, PED Model H 2014/68/EU, ISO9001: 2008, ISO14001, CU-TR 010/032, EAC
Place of Origin: Zhejiang, China (Mainland)
Delivery Detail: Shipped in 15-30 days after payment
Port: Shanghai Or Ningbo
Payment Terms: L/C, D/A, D/P, T/T, Western Union

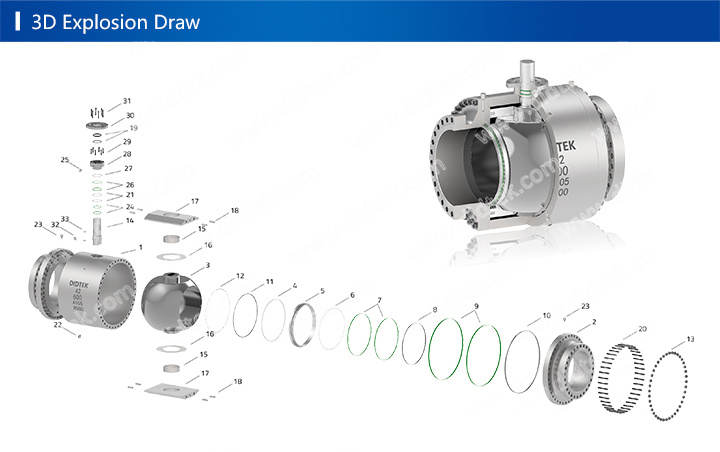

| Parts Num | Part Name | Carbon Steel to ASTM | Alloy Steel to ASTM | Stainless Steel to ASTM |
| 1 | Body | ASTM A105 | A350 LF2 | A182 F11 | A182 F22 | A182 F304 | A182 F316 |
| 2 | Bonnet | ASTM A105 | A350 LF2 | A182 F11 | A182 F22 | A182 F304 | A182 F316 |
| 3 | Ball | A105+ENP | A182 F304 | A182 F304 | A182 F304 | A182 F304 | A182 F316 |
| 4 | Seat | PTFE / PEEK / PPL / NYLON / DEVLON |
| 5 | Sealing Gasket | Graphite/Viton |
| 6 | Spring | SS304 | SS304 | SS304 | SS304 | SS304 | SS316 |
| 7 | Gasket | SS Spiral Wound W/graphite, or SS Spiral Wound W/PTFE, or Reinforced PTFE |
| 8 | O-ring | VITON |
| 9 | Gasket | SS Spiral Wound W/graphite, or SS Spiral Wound W/PTFE, or Reinforced PTFE |
| 10 | Nuts | A194 2H | A194 4 | A194 4 | A194 4 | A194 8 | A194 8M |
| 11 | Stem | A182 F6a | A182 F304 | A182 F304 | A182 F304 | A182 F304 | A182 F316 |
| 12 | Sliding bearing | Metal+PTFE | Metal+PTFE | Metal+PTFE | Metal+PTFE | Metal+PTFE | Metal+PTFE |
| 13 | Thrust Bearing | PTFE |
| 14 | Bearing Holder | A105+ENP | A182 F304 | A182 F304 | A182 F304 | A182 F304 | A182 F316 |
| 15 | Pin | A105 | A182 F304 | A182 F304 | A182 F304 | A182 F304 | A182 F316 |
| 16 | Stem Packing | Braided graphite, or Die-formed graphite ring or PTFE |
| 17 | Stud | A193 B7 | A320 L7 | A193 B16 | A193 B16 | A193 B8 | A193 B8M |
| 18 | Gasket | SS Spiral Wound W/graphite, or SS Spiral Wound W/PTFE, or Reinforced PTFE |
Main Outline Dimensions | 150LB |
| Valve Size | 2" | 2-1/2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" |
| 50mm | 65mm | 80mm | 100mm | 150mm | 200mm | 250mm | 300mm | 350mm | 400mm | 450mm |
| Face to Face | L1: RF | 178 | 190 | 203 | 229 | 394 | 457 | 533 | 610 | 686 | 762 | 864 |
| L2: RTJ | 191 | 203 | 216 | 242 | 407 | 470 | 546 | 622 | 699 | 775 | 876 |
| L3: BW | 216 | 241 | 283 | 305 | 457 | 521 | 559 | 635 | 762 | 838 | 914 |
| Valve Bore(d) | 49 | 62 | 74 | 100 | 150 | 201 | 252 | 303 | 334 | 385 | 436 |
| Valve Height(H) | 130 | 142 | 191 | 200 | 226 | 242 | - | - | - | - | - |
| Valve Height(H1) | - | - | 185 | 235 | 325 | 390 | 445 | 520 | 550 | 580 | 605 |
| Lever Diameter(W) | 250 | 300 | 350 | 500 | 800 | 1000 | - | - | - | - | - |
| Handwheel Diameter(W1) | - | - | 280 | 280 | 300 | 400 | 400 | 500 | 500 | 600 | 600 |
| Weight(Kg) | Lever | 28 | 39 | 49 | 88 | 160 | 248 | - | - | - | - | - |
| Gear | - | - | - | - | - | - | 379 | 571 | 759 | 1150 | 1192 |
Remark: More details from 300LB to 2500LB data please check our catalogs.
