1. Use the highest strength material to get better wearing resistance.
2. Easy maintenance, prolonged life.
3. We have accumulated sales of 20,000 units, rich maintenance experience.
Advantages
1. Selected raw material - high quality heavy duty wear resistant steel 2. Hydraulic-gas system, increase stability 3. High-quality and durable wear parts 4. Advanced manufacturing facilities, introduced from South Korea 5. High energy and impact frequency (high performance) 6. High-performance optimized hydraulic unit 7. Low maintenance, less breakdown, long using life
Specification
Description
Model
SB30
SB40
SB43
SB50
SB70
SB81
SB121
SB131
YLB530
YLB680
YLB750
YLB1000
YLB1350
YLB1400
YLB1550
YLB1650
Operating Weight
KG
150
300
430
860
1650
1825
2850
3350
Optimum Oil Flow
L/min
25-50
40-70
50-90
80-120
100-150
130-170
170-220
200-260
Impact Rate
bpm
550-1000
500-800
450-800
350-700
350-600
350-500
300-450
250-400
Hose Diameter
inch
1/2
1/2
1/2
3/4
1
1
5/4
5/4
Rod Diameter
mm
53
68
75
100
135
140
155
165
Applicable Carrier
ton
2.5-4.5
4-7
6--9
11-16
18-21
20-26
28-35
30-40
Valve Ass'y Position
/
internal
internal
internal
internal
internal
internal
internal
internal
Standard Configurations:
* Chisels x 2 pcs
* Hydraulic Oil Hoses x 2 pcs
* Nitrogen Charging Kit with Pressure Gauge x 1 set
* Nitrogen Bottle x 1 pcs
* Tool Box with necessary maintenance tools x 1 set

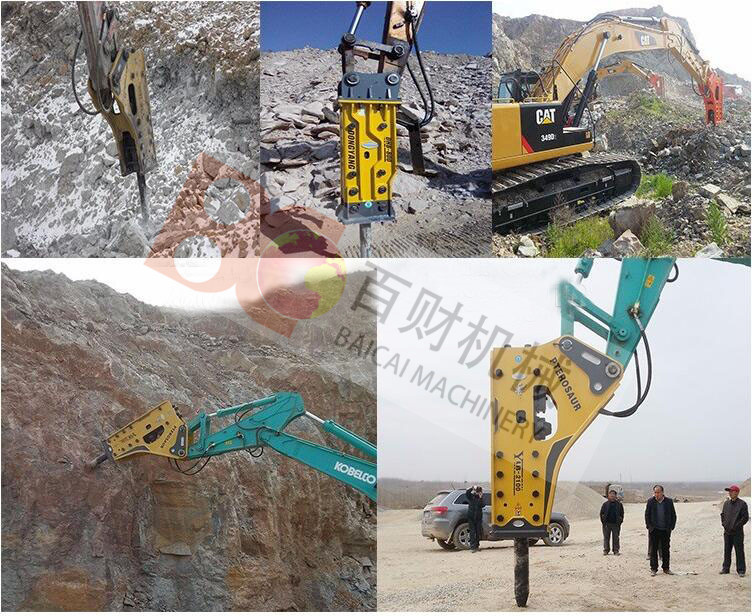

2.Metallurgy, slag cleaning, ladle furnace demolition, demolition equipment foundation body dissatisfied
3.Railway, tunnel bridge, mountain down.
4.Highway: highway repair, cement pavement broken, foundation excavation.
5.Municipal gardens, concrete crushing, gas engineering construction, the transformation of the old city.
6.Building: the old building demolition, reinforced concrete broken.
7.The ship hull in mussels , derusting
8.Other: ice breaking, breaking the permafrost and vibrating sand.
Our company

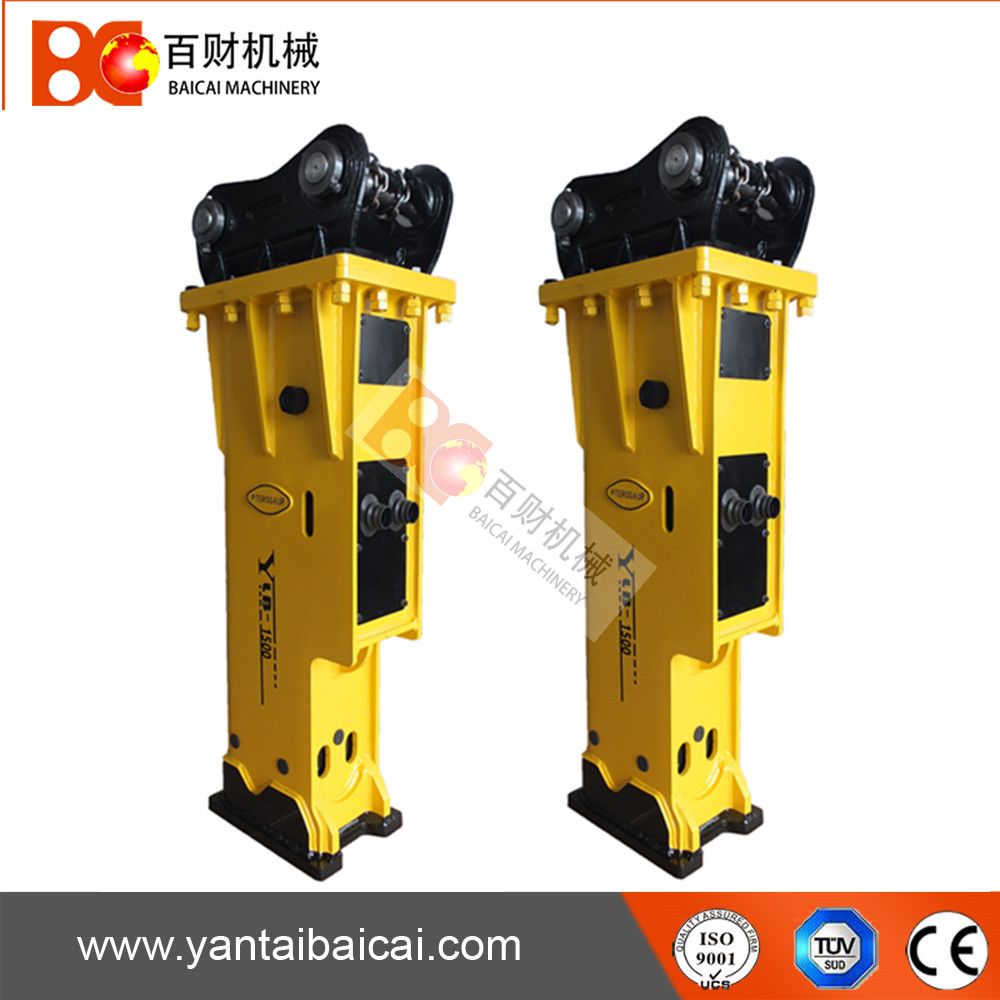

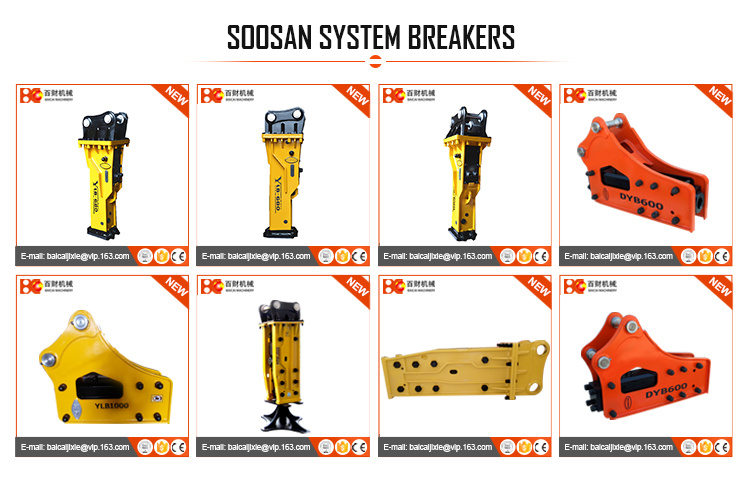

YANTAIBAICAI Hydraulic breakers, we have three types for your choice: Side Type,Top Open type, and Box Silenced Type. YANTAIBAICAI Hydraulic breakers Advantages: 1. High Strength and wear resistance steel plate adopted. 2. Suitable with all brands of excavators. 3. Strong compatibility. 4. Unique valve system. SOOSAN series Hydraulic Breakers adopt simple hydraulic circuit system, which use oil less and improve efficiency more. 5. First-class quality:Korean technology used to guarantee the quality. 6.Powerful stroke. Compared with other brand's products, SOOSAN series Hydraulic Breakers has more powerful stroke and reliable performances.
Exhibition
Package
1. Inner is stretch film 2. Outside is export wooden case 3. As per customer's request
FAQ
1. Are you a manufacturer? Yes, our factory was established in 2004
2. Can you produce according to customers' design? Sure, OEM / ODM service available. We are professional manufacturer for nearly 10 years.
3. What's the MOQ and payment terms? MOQ is 1 set. Payment via T/T, L/C, Western Union accepted, other terms can be negotiated.
4. How about delivery time? 3-7 working days from the date of receiving full payment.
5. After-sale Service 14 months warranty for hydraulic breakers. 24 hour prompt after-sales service to meet your demands.
6. OEM accept Yes, we will provide high quality products with competitive price.
7. Impact Test Every hydraulic breaker will do impact test before sale .
Contact Information
Please tell us your excavator or bachoe loader model,or the hydraulic breaker which you want then I will send you our quotation.
Contact: Nina
Mobile:+86 185 6112 8706
Website: www.yantaibaicai.com
Yantai Baicai Machinery Co., Ltd. Was established in 2004, We are a professional manufacturer for producing hydraulic breakers. Now our factory Mainly produces Soosan System hydraulic breakers, Furukawa system hydraulic breakers and spare parts in China. We supply kinds of Cylinder Assy' to home and abroad.
We sincerely hope that you can join us, we will be glad to support you on quality and technology.
