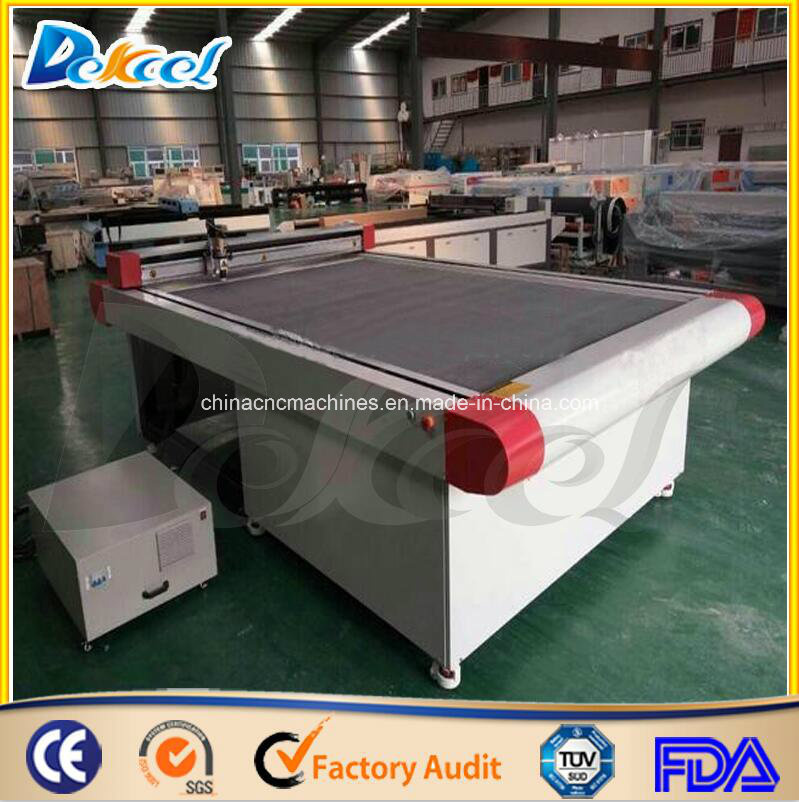

Digital Carton Sample Cutting Plotter CNC Vibratory Knife Cutter

Prod Model:	DEK-1325K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	AC380V/50Hz
Working Area:	1600*2500*120mm
Power(W):	11kw
Dimension(L*W*H):	3450*2300*1250mm
Cutting Speed:	200-800mm/S(According to Different Cutting Materia
Tool Configuration:	2.2kw Fuling Inverter
Drivers:	Multiple Cutting Knives
Transmission:	Taiwan Tbi Ballscrew
Table Surface:	T-Slot Extrusion PVC
Warranty:	12 Months
Spindle Layout:	Vertical
Spindle Number:	Single-Spindle
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	ISO
Type:	CNC Knife Cutting

Product Description

Digital Carton Sample Cutting Plotter CNC vibratory knife cutter

CNC vibratory knife cutter machine Feature

1. Multi-functional digital  sample cutting plotter that can be quickly changed to adapt to different materials.

2. It has an IC control system that offers high-performance and convenient Ethernet with high speed.

3. The DEK  Series  digital  sample cutting plotter has an English and Chinese LCD touch screen panel and a massive storage volume system.

4. The DEK Series  digital  sample cutting plotter has the functions of making dotted lines, partial and whole disconnections, perfect backfins, laser positioning and accurate plotting.

5. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.

6. The DEK Series  digital  sample cutting plotter can induce draft separately and easily cuts small pieces.

7. The anti-collision and the built-in auto-sensing devices ensure the security of the CB Series digital  sample cutting plotter .

8. High efficiency can be realized without making a high-cost knife model.

9. The DEK Series  digital  sample cutting plotter is designed for production with small quantities and can save on costs while maintaining speed and accuracy.

CNC vibratory knife cutter machine Knife tool


No.		Name	Application	Note
1		16 degree knife	Used to cut materials between 10mm to15mm thick.Cutting materials: Corrugated board, paper board, kraft paper, grey board, offset board, Honeycomb board, KT board and compound materials, etc.
2		20 degree knife	Used to cut materials between 7mm to10mm thick.Cutting materials: Corrugated board, paper board, kraft paper, grey board, offset board, Honeycomb board, KT board and compound materials, etc.
3		26 degree knife	Used to cut materials between 5mm to7mm thick.Cutting materials: Corrugated board, paper board, kraft paper, grey board, offset board, Honeycomb board, KT board and compound materials, etc.
4		Drag knife	Used to cut materials within 3mm thick.Cutting materials:Paper board, Kraft paper, grey board, offset board, self-adhesive paper and compound materials etc.
5		Special knife	Used to cut materials within 2mm thick.Cutting materials:Paper board, Kraft paper, grey board, offset board and self-adhesive paper etc.
6		Double edge knife	Mainly for the thick and hard material such as grey board, PP etc.	Option
7		30 degree knife	Mainly for the hard material such as carbon gasket, gasket, rubber, Grey board, PP etc.	Option

CNC vibratory knife cutter machine Creasing wheel

No.		Name	Application	Note
1		3mm creasing wheel	Creasing thickness:Between 3mm and 5mm corrugated board.
2		5mm creasing wheel	Creasing thickness:Between 5mm and 7mm corrugated board.
3		7mm creasing wheel	Creasing thickness:Between 7mm and 10mm corrugated board.
4		2mm creasing wheel	Creasing thickness:Within 2mm,such as corrugated board, paper Board, kraft paper, grey board, offset board and compound materials etc.
5		PVC creasing wheel	Used foe PVC, plastic box, PVC corrugated etc.	Option

Pen

No		Name	Application	Note
1		Pen	Drawing

1.Cutting function of oscillation tool

It can cut many different materials (such as corrugated paper, cardboard, offset  paper, grey board, rubber, honeycomb board, PP,PE,PVC, gasket, leather ,carpet and mat )

2.Folding function

It can fold corrugated paper, card paper and offset board into perfect folding line.

3.Function of dotted line
It is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted line.

4.Location

Location with laser.

5.Drawing function

It can draw various high precision drawing cutting materials:Corrugated board,  foam, PVC, styrene, Coroplast, Celtec, magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyl  etc.

CNC vibratory knife cutter machine parameter


Model No.	DEK-1311	DEK-1815	DEK-2513	DEK-2517	DEK-3020
Cutting speed	200-800mm/s(depends on the kind of material)
Moving Speed	800-1200mm/s
Cutting Depth	≤50mm (depends on the kind of material)
Min.Cutting Diameter	3mm
Cutting Media	Corrugated paper, cardboard, grey cardboard, Plastic board, Foam, EVA foam, rubber, composite material, etc.
Multi-functional Tool Head	Oscillating cutting knife, plotting pen, creasing wheel and laser pointer
Pen/Blade/Wheel	Gel-ink pen /Cutting blades of different type/ Creasing wheel of different size
Media Fixture Device	Individual section vacuum suction
Repeat Cutting Precision	≤0.1mm
Safety device	Infrared sensor, responsive, safe and reliable
Interface	Serial port and Ethernet port RJ45
Transmitting distance	350m
Buffer Memory	2G
Data transfer rate	100MB/S
Command Mode	HP-GL compatible format
Control Panel	Touch screen
Transmission System	Digital servo driver;Straight rail;Synchronous belt
Power Supply	AC 110V/220V/380V±10% 50HZ / 7.5KW AC 110V/220V/380V±10% 50HZ / 11KW
Working Environment	10 to 35 deg.C
Effective Cutting Area (mm*mm)	1300*1000	1800*1500	2500*1300	2500*1700	3000*2000

CNC vibratory knife cutter machine applicable industry :

EVA foam, CUTCNC digital cutter machine can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc.It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.

Using cnc knife cutting technology, our digital cutter machine has no burning and totally environmently.It's equipped with plotting pen, oscillating cutting tool, creasing tool, and drag knife tool to meet customers' different requirements.The heavy duty drag knife tool is available for special materials of the sign making industry.


CNC vibratory knife cutter machine Sample Making

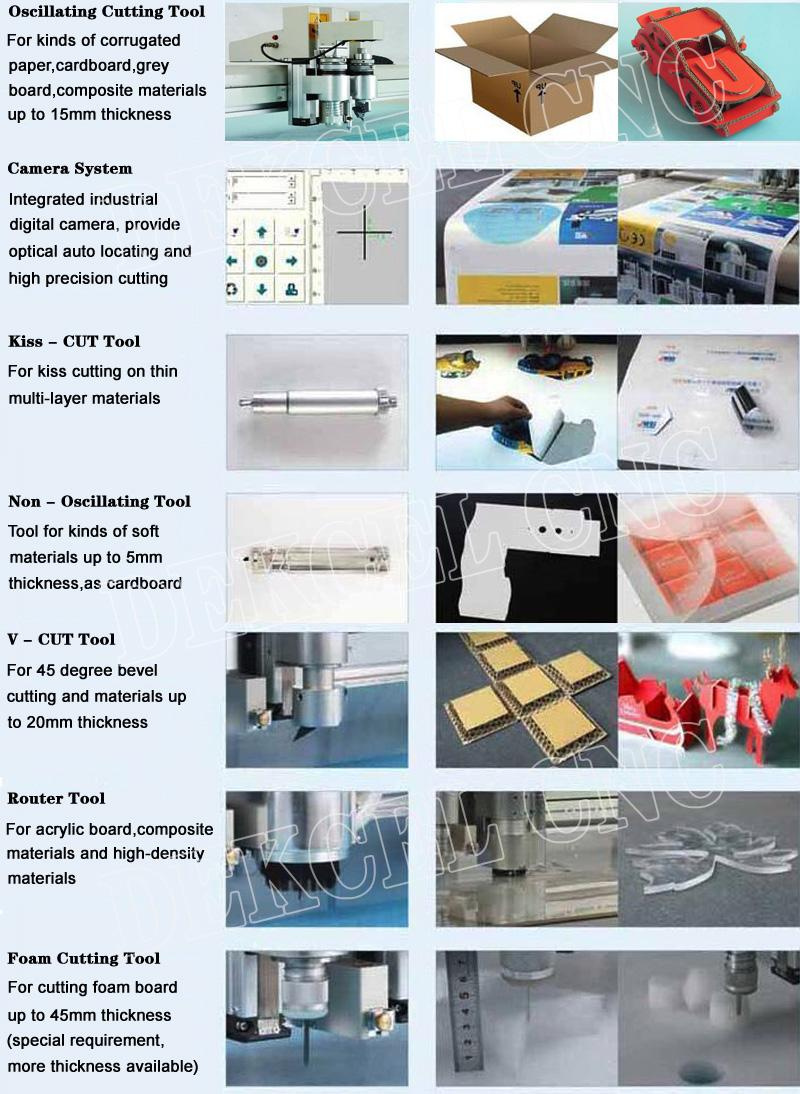

1.Optional tools and application Oscillating Cutting Tool For all kinds of corrugated paper, cardboard, grey board, composite materials up to 15mm thickness
2.Kiss Cut tool For kiss cutting on thin multi-layer materials
3.Non-Oscillating Tool Tool for all kinds of soft materials up to 5mm thickness, as cardboard
4.Multi-Angle Grey Cardboard V-cut Tool with wide range of angle 90-150 degree for thick materials up to 4mm
5.Foam Cutting Tool For cutting foam board up to 45mm thickness (special requirement, more thickness available)

FAQ

Question 1: I want to buy this machine,what suggestion can you give?

Answer: Please tell me:what material do you process? What's the size of your material?(Better show me your product picture)

Question 2: What's the delivery cost & time?

Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.

Question 3: Have you exported to our country?
Answer: We have been in this field for 11 years,we have CE,CO,ISO,FDA certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.

Question 4:  This is the first time I use this kind of machine, is it easy to operate?
1) User manual, CD with video will along with machine for training you how to install, how to use, and how to maintains,

3) Free training will offer you on our factory, Engineer is available to offer international service!
4) Local agent service available is extending all over the world!

If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

Question 5: If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
