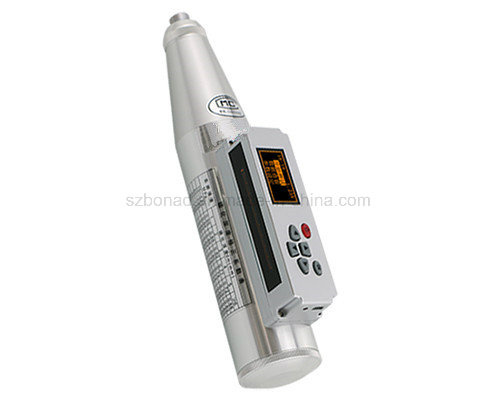

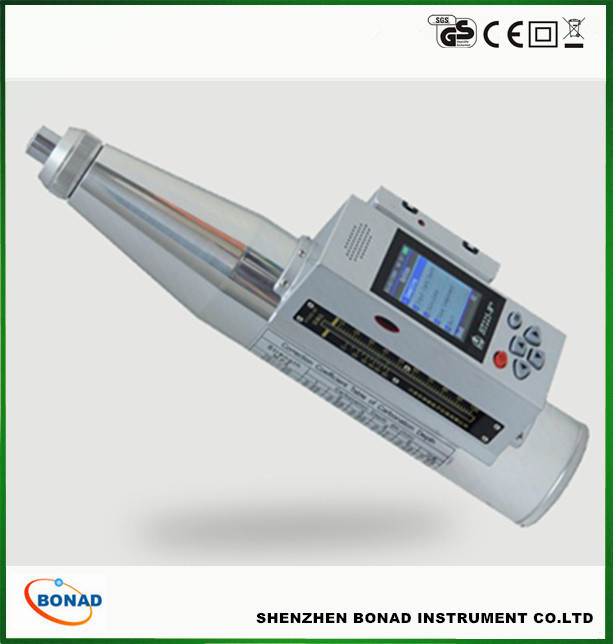

Digital Display Schmidt Concrete Test Hammer for Rebound Test
| Price: |
US $ 99-299/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
BND-J020 |
| Impact Energy: |
2.207j |
| Spring Constant: |
785n/M |
| Spring Extension: |
75mm |
| Size: |
L280mm*D54mm |
| N W: |
1.2kg |
| Dimension(mm): |
123*50*22 |
| Delivery Time: |
3-7days |
| Product Name: |
Digital Display Schmidt Concrete Test Hammer |
| Type: |
Leeb Hardness Tester |
| Measuring Range: |
HLD |
| Application: |
Stone |
| Standard: |
ASTM |
Product Description
digital display schmidt concrete test hammer for rebound test
The quality of concrete is mainly judged by its compressive strength directly affecting the load-bearing capacity and durability of concrete structures. Proceq invented the Original Schmidt, the world's first and now most widely used test hammer for analyzing the compressive strength of concrete properties.
The Original Schmidt will hit the concrete at a defined energy whereas its rebound is dependent on the hardness of the concrete and is measured by the instrument. The Original Schmidt is available in models with different impact energies. Each test hammer is designed for a specific test application, in order to meet the needs of the customers to investigate a wide range of material types and sizes, such as bridge decks, thin walls, cast stone components or small components.
The test hammer submit to standard of GB/T9138-1988 and JJG817-93 and JGJ/T23-2011 and ASTM C 805. HT-225 concrete test hammer is applied to test the compressive strength of building concrete components, bridge and so o
Trait:
1)Center rod is made from imported material, high accuracy and durable resistance.
2)The shell is made form high Aluminum in order to perfect protect instrument from damage and extend use life.
3)Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate. Compared with other suppliers in the line of business, the product is more accuracy, good quality, and best price and longer use life.
Parameter: | Specifications |
| test range: | 10~60 Mpa |
| impact energy: | 2.207J (0.225kgf.m) |
| impact stroke: | 75mm |
| friction of slider: | 0.5~0.8N |
| spherical radius of impact pole: | 25+/-1mm |
| calibration value on test anvil: | 80+/-2 |
| dimension: | 278*D54mm |
| weight: | 1kg |
FAQ1.What about your quality?Each equipment must be carry out 100% examination and test again before shipping 2.What is the MOQ ?Most instruments support MOQ one set.3.How long the delivery time ?Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .4.What is the warranty of the products?One year ,but we can provide you life long support .5.What is the package?Export standard Solid wooden case 6.What is the shipping way ?We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .7.What is the payment term ?T/T, Western Union,Money gram ,Paypal etc 8.Can we buy 1 pcs sample testing Yes, we are glad to send 1pc for quality testing if we have stock of the model you required.
