Digital Electric Invertor for Home Use Solar Inverter
| Price: |
US $ 79/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
FG1005 |
| Item Name: |
Wholesale DC to AC Pure Sine Wave Power Inverter |
| Size: |
428*360*225mm |
| Color: |
Black |
| Output Voltage: |
220-240V |
| Output Frequency: |
50/60Hz |
| Continuous Output Power: |
3000W |
| Max. Output Power: |
4000W |
| Max. Efficiency: |
90% |
| Output Wave Form: |
Pure Sine Wave |
Product Description
Digital Electric Invertor for Home Use Solar Inverter
Features:1.Pure sine wave output2.CPU control technology; SCM control3.Strong ability of impact resistance4.Wide input voltage range: 90-280V; Four step AVR (three step boost, one step reduction voltage)5.Protection against overload, short-circuit, overvoltage, under-voltage and over-temperature, etc.6.Anti reverse connection protection and high-low voltage protection(option)7.Special overload protection: When it is overload, it will lock the unit automatically, when it restores, it will restart the unit automatically again.8.Strong inverter ability. It can change frequency immediately and it is able to drive the inductive load such as air conditioner, refrigerator, motor, etc.9.Powerful charge current10.LED or LCD display (option)11.Meet the need of different power supply12.Use MOSFET and IGBT Protect function:1. Lack-voltage alarm protection2. Low-voltage protection3. Over voltage protection5. Short-circuit protection6. over temperature protection7. AC input low voltage protection8. AC input over voltage protection9. Battery reverse connection protection (Optional) | Pure Sine Wave Solar Power System (Built-in Inverter,Solar Controller,Battery) Technical Specifications |
| Model | 1000W | 2000W | 3000W |
| Inverter Rated capacity(W) | 1000W | 2000W | 3000W |
| Inverter Input | Rated Battery Voltage | 24V | 24V | 24V | 24V |
| Commercial Power range (VAC) | 100/110/120/127/220/230/240 (+25%,-35%) |
| Frequency(Hz) | 50±0.5/60±0.5 |
| Solar Input | Input power(W) | 480W | 720W | 960W | 1200W |
| Maximum power (WP) | 960WP | 1440WP | 1920WP | 2400WP |
| Solar Controller | Control Type | PWM or MPPT (Optional) |
| Rated Voltage | 24V | 24V | 24V | 24V |
| Rated Current | 20A | 30A | 40A | 50A |
| Equilibrium charging | 29V |
| Float charging pressure | 27.4V |
| Under voltage protection | 22.2V |
| Inverter Input | Commercial Power range (VAC) | 100/110/120/127/220/230/240 (+25%,-35%) |
| Frequency(Hz) | 50±0.5/60±0.5 |
| Inverter Output | Rated capacity | 1000W | 2000W | 3000W |
| Waveform | Pure sine wave |
| Frequency(Hz) | 50±0.5/60±0.5 |
| AVR voltage range(VAC) | 100/110/120/127/220/230/240±10%
(Auto-sensing ) |
| Protection | Over Load Protection | 30 seconds delay shutdown for 105~130% exceeded |
| Battery | Type | Sealed, maintenance-free lead acid |
| Battery protection | Automatic self-test, discharge protection, over-charge protection, smart management system. |
| Recharge current | 30A(Maximum) |
| DC voltaget | 24VDC |
| built-in battery capacity and number | 2PCS*200AH(Maximum) |
| battery input voltage range | DC:22V~30V |
| Working Environment | Working Temperature | 0ºC ~ 40ºC (0m~1500m) |
| Noise | 60dB |
| Store Temperature | 0ºC ~ 40ºC |
| Humidity | <95% |
| Size(L*W*H) | 550*550*640mm |
| Packing Size(L*W*H) | 620*620*710mm |
| Net weight(kg) | 33 | 40 | 47 | 47 |
| Gross weight(kg) | 40 | 47 | 54 | 54 |
| Pure Sine Wave Solar Power System (Built-in Inverter,Solar Controller,Battery) Technical Specifications |
| Model | 3000W | 5000W | 8000W | 10000W |
| Inverter Rated capacity(W) | 3000W | 5000W | 8000W | 10000W |
| Inverter Input | Rated Battery Voltage | 48V | 48V | 96V | 96V |
| Commercial Power range (VAC) | 100/110/120/127/220/230/240 (+25%,-35%) |
| Frequency(Hz) | 50±0.5/60±0.5 |
| Solar Input | Input power(W) | 2400W | 2400W | 4800W | 4800W |
| Maximum power (WP) | 4800WP | 4800WP | 9600WP | 9600WP |
| Solar Controller | Control Type | PWM or MPPT (Optional) |
| Rated Voltage | 48V | 48V | 96V | 96V |
| Rated Current | 50A | 50A | 50A | 50A |
| Equilibrium charging | 58V | 116V |
| Float charging pressure | 54.8V | 110V |
| Under voltage protection | 44.4V | 88.8V |
| Inverter Input | Commercial Power range (VAC) | 100/110/120/127/220/230/240 (+25%,-35%) |
| Frequency(Hz) | 50±0.5/60±0.5 |
| Inverter Output | Rated capacity | 3000W | 5000W | 8000W | 10000W |
| Waveform | Pure sine wave |
| Frequency(Hz) | 50±0.5/60±0.5 |
| AVR voltage range(VAC) | 100/110/120/127/220/230/240±10%
(Auto-sensing ) | NO |
| Protection | Over Load Protection | 30 seconds delay shutdown for 105~130% exceeded |
| Battery | Type | Sealed, maintenance-free lead acid |
| Battery protection | Automatic self-test, discharge protection, over-charge protection, smart management system. |
| Recharge current | 30A(Maximum) |
| DC voltaget | 48VDC | 96VDC |
| built-in battery capacity and number | 4PCS*200AH(Maximum) | 8PCS*150AH(Maximum) |
| battery input voltage range | DC:44V~60V | DC:88V~120V |
| Working Environment | Working Temperature | 0ºC ~ 40ºC (0m~1500m) |
| Noise | 60dB |
| Store Temperature | 0ºC ~ 40ºC |
| Humidity | <95% |
| Size(L*W*H) | 550*550*1100mm | 600*750*1400mm |
| Packing Size(L*W*H) | 670*730*1230mm | 670*810*1560mm |
| Net weight(kg) | 85 | 95 | 125 | 136 |
| Gross weight(kg) | 106 | 116 | 145 | 155 |
| Remarks | Specifications subject to change without prior notice |
| Our company accept customized special specifications products |

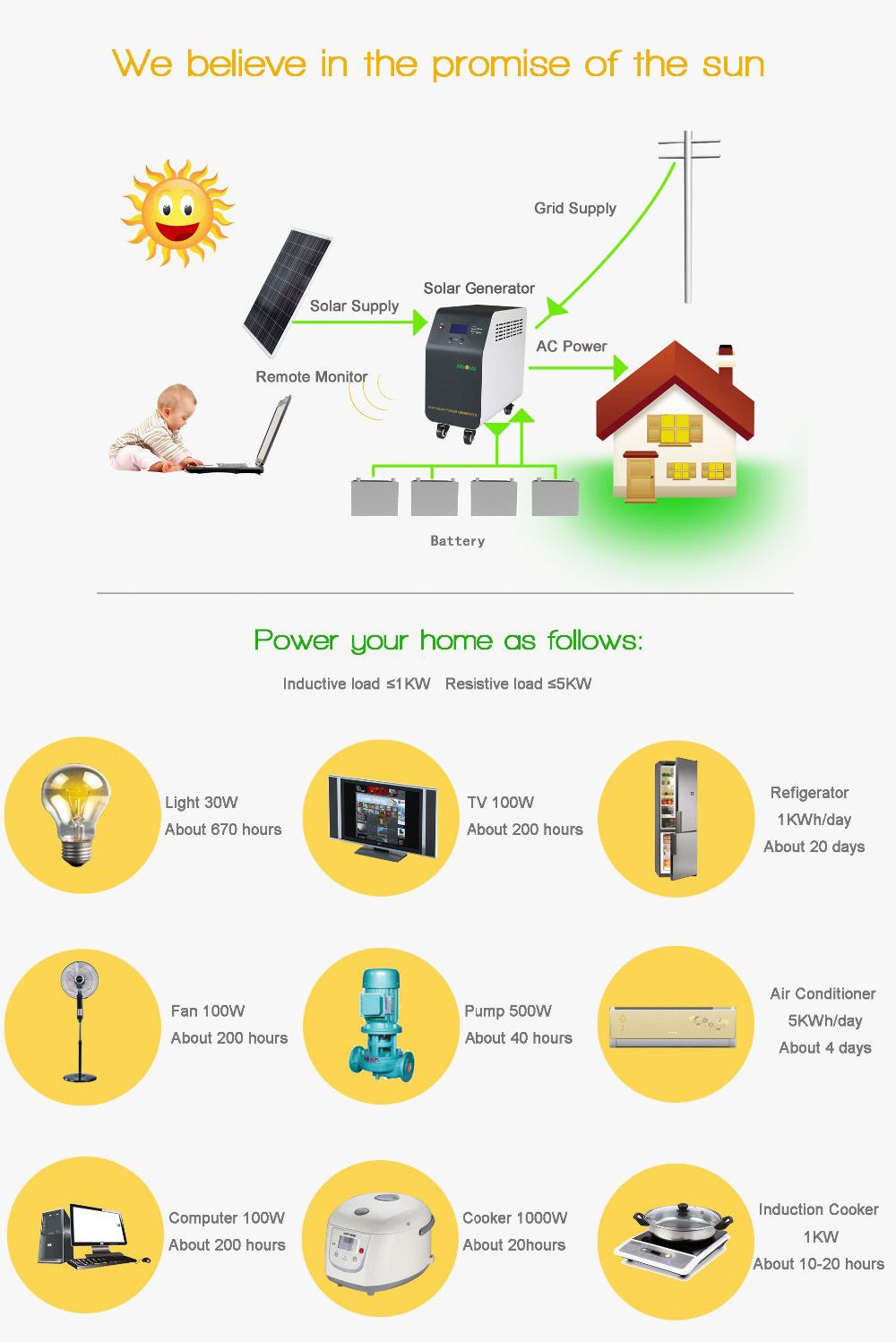

Application:1.Power Supply Field: Solar System, wind power system, gas discharge lamp and etc. 2. Household Appliances: lamps ,refrigerator,TV,washing machine,electric fans, vacuum cleaner, air conditioner, satelliate receiver, micro-wave oven, induction cooker etc.3. Office area: Computer, printer, copier, scanner, digital camera and etc.4. Power tools series: Electric saw, drilling machine, punching machines, air compressor etc. 5. Irrigating system:solar pumping system6.Traffic Devices: Military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
Warranty: two yearsIf you can cooperate with us, we will be honored and you will benefit from:1. Professional engineers and professional analysis equipements and testing decives support professional aftersales services2. The good construction warranty is 2 years3. Your client will be satisfied on the right schedule and quality4. Your can get good reputation from your market and obtain more orders5. The free inverter samples will be provided after your first 2 orders6. The reasonable prices7. Any question from you are welcome and will be replied in 24 hours.
Payment Terms | Payment Terms | T/T | EXW | 30% T/T in advance, paid the balance before shipment |
| FOB |
| CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L |
| CIF |
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight |
| West Union | Amount lower than 5000usd |
| Paypal |
| Delivery time | 10 working days after receiving payment for one container |
FAQQ1: How to choose a right inverter?A1:Tell us your demand, then our sales will recommend a suitable inverter to you. Q2: What's the different between inverter and solar inverter?A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power. Q3: How about the delivery time?A3: 7 days for sample; 25 days for bulk order. Q4: What is the warranty of inverter?A4: One year warranty on Must-Solar product. Q5: How to solve the technical problem?A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
