| Prod Model: |
SY-MULTI BLADE-238 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Segment Size: |
1: 24X7.0/6.4X13mm for 5.5mm Core |
| Raw Material: |
Element Six Diamond |
| Segment Size2: |
24X8.0/7.4X13mm for 6.5mm Core |
| Segment Size3: |
24X9.0/8.4X13mm for 7.2mm Core |
| Quality: |
European and USA Market Approved |
| Performance: |
Smooth & Fast Cutting |
| Support: |
OEM & ODM |
| Grade: |
a-Grade |
| Certification: |
BV/SGS/ISO |
| Graininess: |
600# |
| Shape: |
Round |
| Manufacturing Arts: |
Welding |
| Usage: |
Stone Cutting, Abrasive and Carving |
| Customized: |
Customized |
| Thickness: |
5.0 - 7.2 mm |
| Kind: |
Diamond Multi Blade |
| Brand: |
Sunny |
| Saw Blade External Diameter: |
680 - 2584mm |
Product Description
It characterized by:
1). Fast Cutting Speed
2). Long Cutting Life
3). High Precision
4). High Efficiency.
5) Low energy consumption.

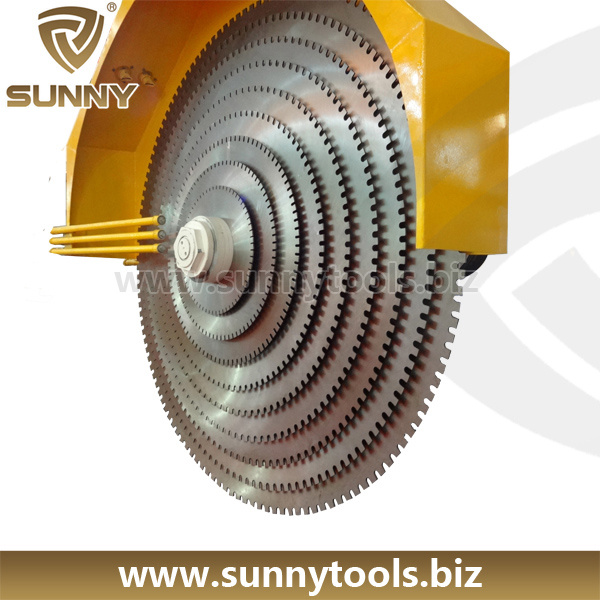

Multi Blade
Different size combination |
| Diameter | Core Thickness | Segment Size | Segment
Number |
| 2584mm | 7.2mm 6.5mm 5.5mm Available |
24x9.0/8.4x13mm for 7.2mm core
24x8.0/7.4x13mm for 6.5mm core
24x7.0/6.4x13mm for 5.5mm core
| 146 |
| 2184mm | 132 |
| 1784mm | 120 |
| 1400mm | 96 |
| 1040mm | 90 |
| 680mm | 80 |
|
|
|
|
| Same size combination |
| SPECIFICATION | Core Thickness | Segment Size | Segment Number |
| 1200 | 5.5mm | 24/23x7.5/6.5x13mm | 80 |
| Other Specifications Are Available Upon Request |
About us:
We Sunny Super hard Tools Co., Ltd are specialized in diamond tools manufacture with long history.
Our main products including:
1. Cutting Tools (Saw blade, Wire saw, Diamond segment...)
2. Grinding Polishing Tools (Calibration roller, flickers, Frankfurt, Cup wheel, Profiling wheel, polishing pad...)
3. Drilling tools (Finger bit, core drill...)
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
