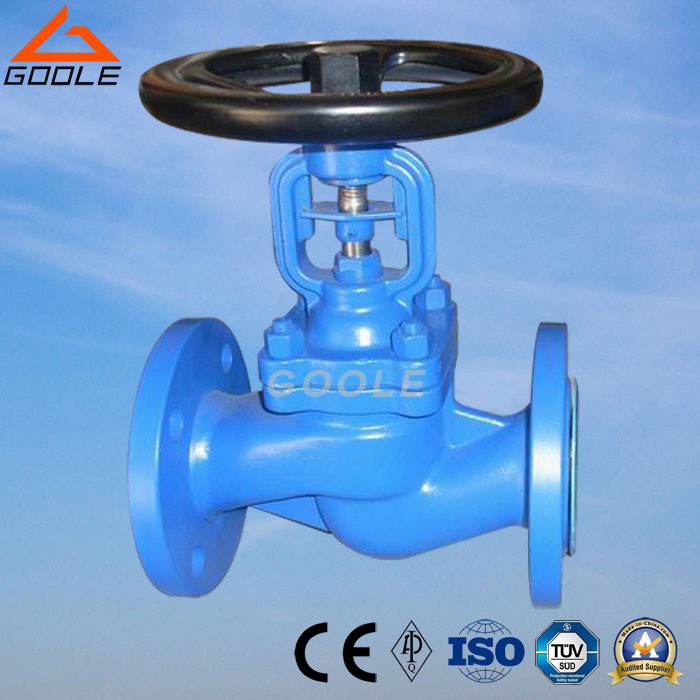

DIN Standard Bellow Sealed Globe Valve (GWJ41H)
Price: |
US $ 1/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
GWJ41H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model No: |
Gwj41h |
Size: |
1/2"-20" |
Category: |
DIN Valve |
Connection: |
Flange |
Medium: |
Water, Steam, Oil, etc. |
Working Temperature: |
-20 Deg C to 350 Deg C |
Usage: |
Flow Control |
Structure: |
Through Way Globe Valve |
Sealing Form: |
Bellows Globe Valve |
Stem Thread Position: |
Outside Screw Stem Globe Valve |
Application: |
Bellows Globe Valve |
Standard: |
DIN |
Product Description
Structural Features: Construction: BB-BG-OS&Y Operation: Manual, Pneumatic Design Standard: DIN3356 Face to Face Dimension: DIN3202 Flange Ends: DIN2543-2545 Test & Inspection: DIN3230 Technical Specifications:Pressure Rating: 1.0-4.0MpaSpecification: DN15-DN500Material: GS-C25,CF8,CF3Standard flanges: DINPN (MPa) | Shell Test (MPa) | Sealing Test (MPa) | Suitable Temp (ºC) | Suitable Medium |
1.6 | 2.4 | 1.76 | -20ºC-350ºC | Water, Steam, Oil, Etc. |
2.5 | 3.75 | 2.75 |
4.0 | 6.0 | 4.4 |
Main Parts Materials: NO. | PART NAME | MATERIAL |
1 | Body | GS-C25, CF8, CF3 |
2 | Disc | 2Cr13, F304, F316 |
3 | Hinge Pin | F304, F316 |
4 | Bellows combination | F304, F316 |
5 | Bonnet | GS-C25, CF8, CF3 |
6 | Packing | Flexible graphite, PTFE |
7 | Gland | 25#, F304, F316 |
8 | Locator | 25#, F304, F316 |
9 | Stem Nut | ZQA19-4 |
10 | Hand wheel | Carbon Steel |
11 | Cap | 25# |
12 | Oil Nozzle | Brass |
13 | Hexagon Nut | ASTM A193 2H, A193-8, A193-8M |
14 | Bolt | ASTM A193 B7, A193-B8, A193-B8M |
15 | Gasket | Flexible graphite+S.S. PTFE |
16 | Stem | 2Cr13, F304, F316 |
Main Dimension: PN | PN16 |
DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
L | 130 | 150 | 160 | 180 | 200 | 230 | 200 | 310 | 350 | 400 | 480 | 600 | 730 | 850 |
H | 195 | 195 | 207 | 218 | 225 | 230 | 272 | 290 | 355 | 410 | 425 | 540 | 665 | 720 |
W | 120 | 120 | 140 | 140 | 160 | 180 | 180 | 200 | 250 | 300 | 300 | 100 | 520 | 520 |
Wt.(kg) | 4 | 4.5 | 5 | 7 | 9 | 12 | 18.5 | 23 | 38.5 | 56 | 75 | 113.5 | 235 | 395 |
H | 7 | 7 | 12 | 13 | 14 | 15 | 19 | 23 | 28 | 35 | 42 | 52 | 64 | 75 |
kv | 4.2 | 7.4 | 12 | 19 | 30 | 47 | 77 | 120 | 188 | 288 | 410 | 725 | 1145 | 1635 |
PN | PN25 |
DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
L | 130 | 150 | 160 | 180 | 200 | 230 | 200 | 310 | 350 | 400 | 480 | 600 | 730 | 850 |
H | 195 | 195 | 207 | 218 | 225 | 230 | 272 | 290 | 355 | 410 | 425 | 540 | 665 | 720 |
W | 120 | 120 | 140 | 140 | 160 | 180 | 180 | 200 | 250 | 300 | 300 | 100 | 520 | 520 |
Wt.(kg) | 4 | 4.5 | 5 | 7 | 9 | 12 | 18.5 | 23 | 38.5 | 56 | 75 | 113.5 | 235 | 395 |
H | 7 | 7 | 12 | 13 | 14 | 15 | 19 | 23 | 28 | 35 | 42 | 52 | 64 | 75 |
kv | 4.2 | 7.4 | 12 | 19 | 30 | 47 | 77 | 120 | 188 | 288 | 410 | 725 | 1145 | 1635 |
PN | PN40 |
DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
L | 130 | 150 | 160 | 180 | 200 | 230 | 200 | 310 | 350 | 400 | 480 | 600 | 730 | 850 |
H | 195 | 195 | 207 | 218 | 225 | 230 | 272 | 290 | 355 | 410 | 425 | 540 | 665 | 720 |
W | 120 | 120 | 140 | 140 | 160 | 180 | 180 | 200 | 250 | 300 | 300 | 100 | 520 | 520 |
Wt.(kg) | 4 | 4.5 | 5 | 7 | 9 | 12 | 18.5 | 23 | 38.5 | 56 | 75 | 113.5 | 235 | 395 |
H | 7 | 7 | 12 | 13 | 14 | 15 | 19 | 23 | 28 | 35 | 42 | 52 | 64 | 75 |
kv | 4.2 | 7.4 | 12 | 19 | 30 | 47 | 77 | 120 | 188 | 288 | 410 | 725 | 1145 | 1635 |
Application.DIN Standard Bellow Sealed globe valve ( Os & Y Type ) is applied to various kinds of working conditions of pipelines such as petroleum, chemical industry, pharmacy, fertilizer, and power industry, etc, under nominal pressure in the PN1.6-40 MPa and operating temperature at -20 - 350ºC, that is used to cut off or connected to the pipeline medium.
