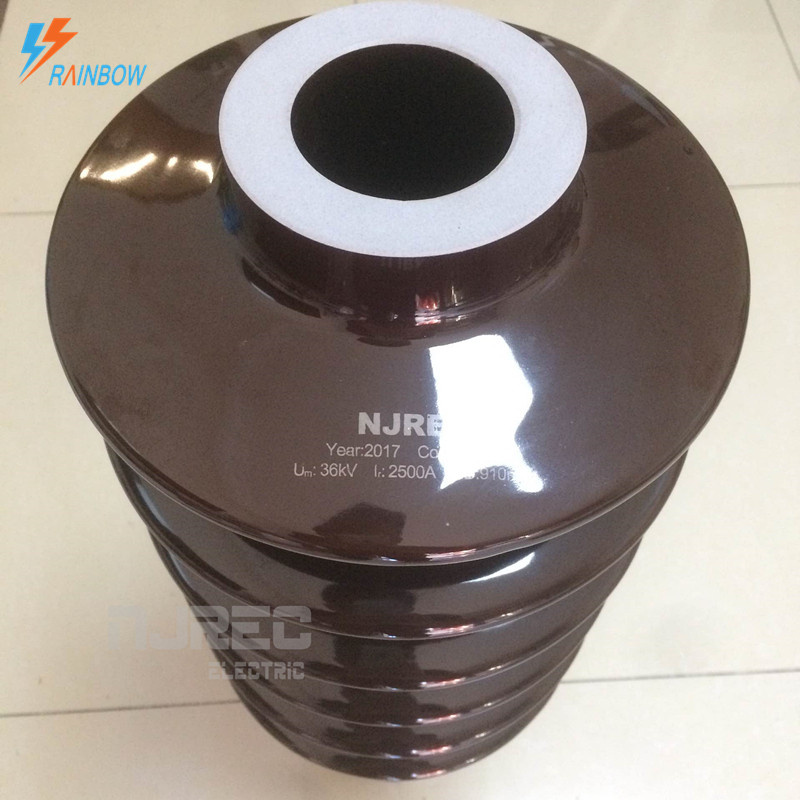

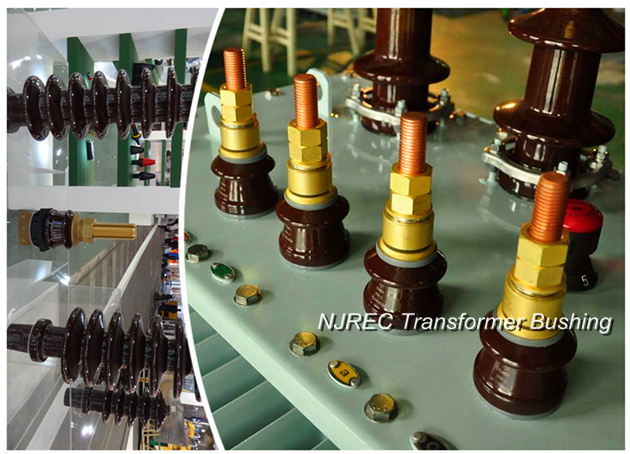

DIN42533 Transformer Bushing for Distribution Transformer

DIN42533 Transformer Bushing for Distribution Transformer
Price: US $ 6-18/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: DIN42533
Voltage: 12kv-24kv-36kv
Current: 1000A-2000A-3150A
Application: High-voltage
Material: Porcelain
Structure: Bushing Insulator
Type: B Type Insulator
Color: Brown

Product Description

Transformer Bushings DIN 42533 MV
12kV 1000A / 24kV 1000A / 36kV 1000A
12kV 2000A / 24kV 2000A / 36kV 2000A
12kV 3150A / 24kV 3150A / 36kV 3150A

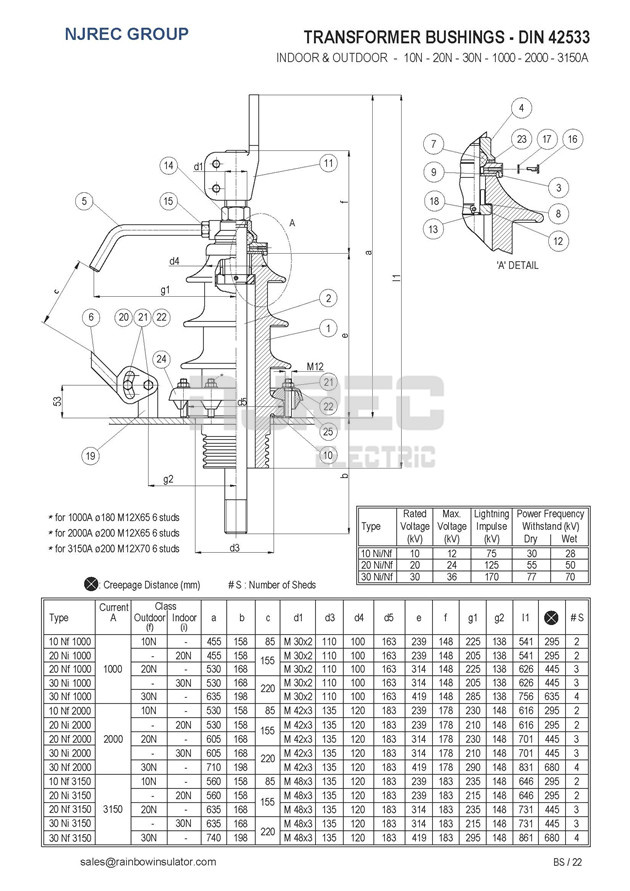

Drawings:


Technical Specifications:
Maximum Rated VoltageFrom 12kV up to 52kV
Maximum Rated CurrentFrom 250A up to 4500A
Nominal Creepage DistanceFrom 290mm to 1655mm
Standard ReferenceDIN42533 and EN50180
Rod MaterialCopper / Brass
Special FinishingTinplating / Silverplating
Multiple Connection Styles



Our Plants:


Certificates:



FAQ:


Q1. What's the payment term ?
A. T/T and L/C is acceptable and TT will be more appreciated. 30% deposit, 70% balance against B/L copy.
    Or 100% irrevocable LC at sight.

Q2. How to buy your ideal products?
A. You can provide us with your drawings with specifications, we will produce as per your drawing.
     Or we can design as your requirements if you do not have a clear plan.

Q3. What is your Packing/Package ?
A. Standard export packing or Customized packing as your request.

Q4. Would you accept to use our logo ?
A.  OEM/ODM can be acceptable.

Q5. What kind of certificate you have ?
A. Our company already achieve ISO9001 certificates and we have test reports.

Q6. What else can I do for you?
A. Our salesmen will reply your inquiry within 24 hours. We can give you any support on the technique
    & other aspects.



Contact Us:


Nanjing Rainbow Electric Co., Ltd
Add:No.396 Heyan Road, Nanjing, Jiangsu China
Tel:  +86-025-86705902
Fax: +86-025-86705902
Post:  210028
Website: http//www.insulatormfg.com



Nanjing Rainbow Electric Co., Ltd (NJREC GROUP) is one of leading insulators and transformer components manufacturer in China. We also undertake new transmission line projects and substation constructions, as well as swithgear and capactior insulator & bushing production and exporting.

NJREC Group headquarters is located in nanjing city. We consist four branches: 1- Insulators and Powerline hardwares plant, 2- Transformer bushing and accessories plant, 3- Silicone rubber insulator & bushing plant, 4- OIP & RIP bushing plant.

NJREC has already exported to North America, South America, Australia, Southeast Asia, Africa, Europe and 20 other countries and regions. Our manufacture applies to ISO 9001 Quality Management System, and we always focus on research, development and innovation.

NJREC has built a reputation for high quality products, short, consistent lead-times and responsive customer service. And has kept its development process, considering his responsibilities and missions about being one of the esteemed and respectful companies in the substation, transformer industry, transmission and distribution sector.
