DIN741 Wire Rope Clip
| Price: |
US $ 0.017/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
DIN741 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface: |
e.g |
| Size: |
3mm-50mm |
| For: |
Wire Rope |
| Material: |
Metal |
| Usage: |
Heavy Duty Clamp |
| Standard: |
Standard |
| Structure: |
U Clamp |
| Brand: |
Ty |
Product Description

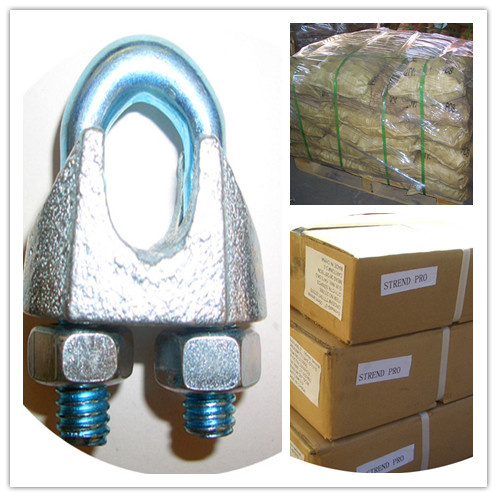

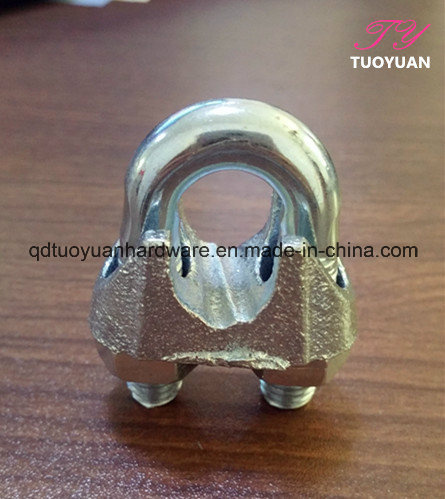

DIN741 Wire Rope Clip
Product Description
Model No.: din741 wire rope clip fastener
Material: Malleable Iron
Surface: Galvanized / self colour
Size: From 3mm to 50mm
Packing: Carton and iron pallet, gunny bag+ iron pallet, carton+ wooden pallet

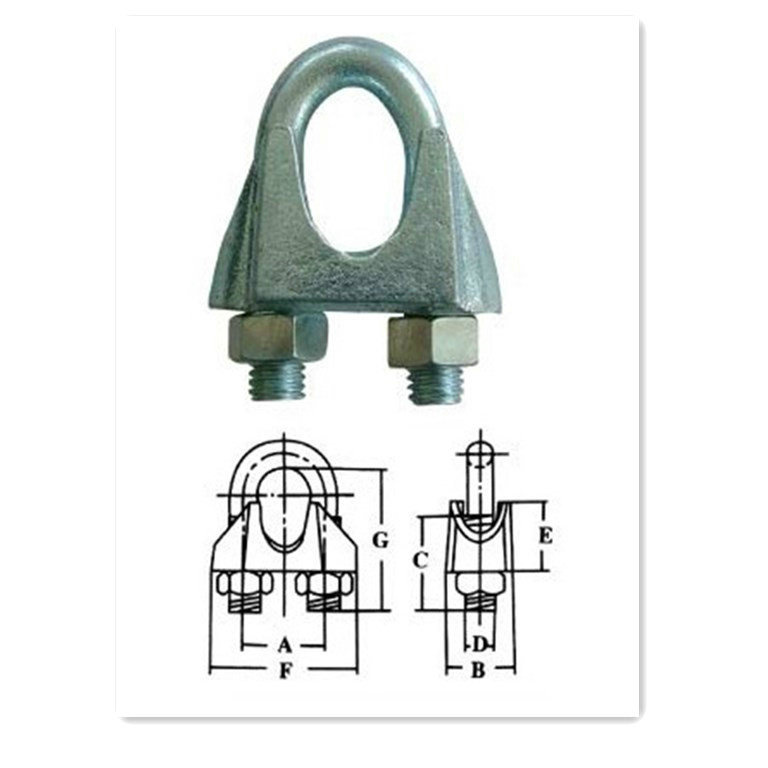

DIAMETER
| Size | A | B | C | D | E | F | G |
| Mm | in |
| 3 | 1/8 | 9 | 10 | 12 | 4 | 10 | 21 | 16 |
| 5 | 3/16 | 11 | 11 | 13 | 5 | 10 | 23 | 19 |
| 6 | 1/4 | 13 | 12 | 15 | 5 | 11 | 26 | 23 |
| 8 | 5/16 | 16 | 14 | 19 | 6 | 15 | 30 | 26 |
| 10 | 3/8 | 19 | 18 | 22 | 8 | 17 | 34 | 34 |
| 11 | 7/16 | 20 | 19 | 22 | 8 | 18 | 36 | 36 |
| 13 | 1/2 | 24 | 23 | 30 | 10 | 21 | 42 | 45 |
| 14 | 6/19 | 25 | 23 | 30 | 10 | 22 | 44 | 47 |
| 16 | 5/8 | 29 | 26 | 33 | 12 | 26 | 50 | 51 |
| 19 | 3/4 | 32 | 29 | 38 | 12 | 30 | 54 | 63 |
| 22 | 7/8 | 37 | 33 | 44 | 14 | 34 | 61 | 71 |
| 26 | 1 | 41 | 35 | 45 | 14 | 37 | 65 | 81 |
| 30 | 1 1/8 | 48 | 37 | 50 | 16 | 43 | 74 | 94 |
| 34 | 1 1/4 | 52 | 42 | 55 | 16 | 50 | 80 | 104 |
| 40 | 1 1/2 | 56 | 45 | 60 | 16 | 55 | 88 | 124 |
Advantageous Service.1. Customers' special need is welcomed, From mold making to export in just 10 days.
2. Our management team averages about 30 years' experience; They ensure all Inquiries are responded to within 12 hours.
3. We export to over 50 countries .
4. No MOQ limit, Timely delivery, High quality and competitive prices.
5. Better because of specialization.
Our Main Products.
Our main produce include shackles, turnbuckles,wire rope clips,wire rope tensioner,thimble, load binders, hooks, eye bolts and nuts, , swivels, snap hooks, stainless steel riggings etc.
