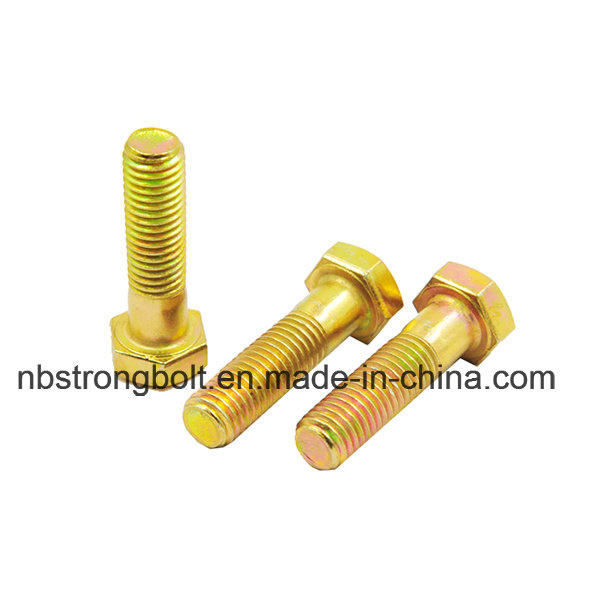

DIN933/DIN931 Hex Bolt with Yellow Zinc Plated
| Price: |
US $ 0.1/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
M10-1.50X80 |
| Process: |
Cold Forging,Hot Forging,Machining |
| Material: |
Carbon Steel |
| Type: |
Hexagon Head |
| Connection: |
Common Bolt |
| Head Style: |
Hexagonal |
| Standard: |
GOST |
| Grade: |
4.8&5.8&6.8&8.8&10.9&12.9 |
| Finish: |
Yzp&Blk&Zinc Plated&HDG |
Product Description
| Item | DIN933 / DIN931 Hex Bolt Gr.8.8 Yellow Zinc Plated |
| Grade | 4.8 & 5.8 & 6.8 & 8.8 & 10.9 & 12.9 |
| Material | Carbon Steel ,Alloy Steel,Stainless Steel and Copper |
| Surface Treatment | Black, Zinc Plated(ZP), Yellow Zinc Plated (YZP)and Hot DIP Galvanizing(H. D. G. ), Dacromet, Nickel Plated, Brass Plated. |

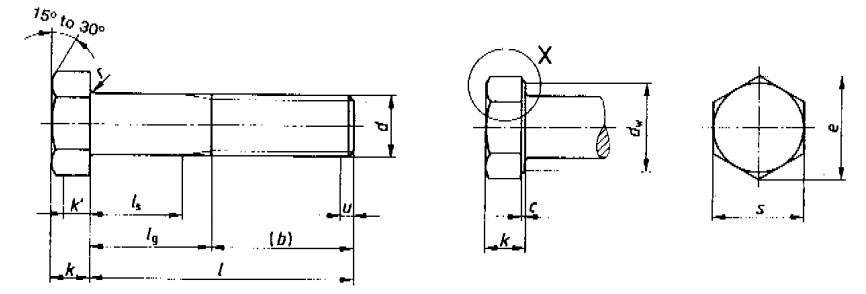

| Size | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 |
| K | 2 | 2.8 | 3.5 | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | 14 | 15 | 17 | 18.7 | 21 | 22.5 | 25 | 26 | 28 | 30 | 33 |
| S | 5.5 | 7 | 8 | 10 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
• Carton size : The ordinary carton (27*25*14.5CM) , or according to the demand of the customers.
• Packing : plastic bags,Box, carton , then put on pallets, or according to the demand of the customers.
• We are a typical China supplier with more than 10 years experiences on fasteners.We are professionally exporting under the standards of DIN, JIS, GB, ANSI, and BS, as well as nonstandard fasteners. Now we have gained close cooperation with clients from Canada, Dubai, Europe, India,Chile,Peru and Russia, and won good comments from users. We always fulfilling customers' expectations by following the principle of "Providing services whenever and wherever our customers need it" to establish a steady beneficial relationship and wining customers' hearts. If you need more information, please contact our sales department.
Ningbo Strong Bolt Trade Co., Ltd is located in Ningbo, China which is international city and with the biggest port in China. Company has been committed to manufacturing & exporting fasteners, which mainly manufacture fasteners such as bolts, screws, nuts, washers, rivets, pins, anchors, chains, self tapping or drilling screws, threaded rod or studs, which are made from both carbon steel, stainless steel, alloy steel, brass, etc. The products are exported to North & South America, Europe, Australia, Russia, Southeast Asia and Middle East with the standard of DIN, ANSI, ASTM, ISO, JIS, BS and customization parts per prints or sample. The size range is from M1 up to M80 and #0 up to 4", max Length 1, 000mm by cold forged, hot forged and lathe machine.
The Surface treatments are available for: Black Oxide, Gray Phosphate, Black Phosphate, Zinc Plated, Yellow Zinc Plated, Black Zinc Plated, Nickel Plated, Chrome Plated, Zinc-Nickel Plated, Hot DIP Galvanized, Mechanical Galvnized, Wax, Dacromet Coating and brass plated, etc. The mechanical performance class/grade of carbon steel are 4.8(4.6, 5.8), 8.8, 10.9, 12.9 according to DIN standard, and GR2, GR5, GR8, B7 according to ANSI standard; Stainless steel 201, 304, 316. Which are applied to connectors of shield tunnel segment (concrete), wind-power screws series, nuclear-power assembling fasteners, steel structure bolts series and other non-standard components for solar power, etc, both of which enjoy great popularity among customers at home and abroad.
Furthermore, We have our own factory and hundreds of cooperative factories, So we can provide very good products and services, better prices. Products cover fastener, auto parts, bearing, motorcycle accessories, plastic products children's toys, various hardware accessories.
Focusing on products quality, our company has enjoyed high reputation in both domestic and overseas markets over the past years. As a forward thinking company, we are striving to improve our knowledge and expertise to enable us to offer the good quality and value-added service to our customer. We are looking forward to cooperating with you and establish long-term business relationship with our partner in future.
