| Prod Model: |
DM160 |
| Model: |
Dm160 |
| Power: |
2200W |
| Voltage: |
230V / 50Hz, 110V / 60Hz |
| Neck Diameter: |
60mm |
| Dimension: |
552mm X 110mm X 150mm |
| Weight: |
6.0 Kgs ( 13.2 Lbs ) |
| No Load R.p.m : |
400-3450 |
| Max. Core Bit: |
on Rig 8 in |
| By Hand: |
6 in |
| Soft Start & Overload Protection : |
Yes |
| Type: |
Core Drill |
| Drill Brand: |
China Coal |
Product Description
Introduction of Dm160 Wet Dry Concrete Diamond Core DrillDm160 Wet Dry Concrete Diamond Core Drill is equipped with an outer adjustable safety clutch and a current overload protection switch. When the drill is blocked or the twisting force is too strong, it can break off the clutch or the switch automatically to protect the drilling machine. It is also safe and reliable for its double insulation.
Quick-release water hose coupling; Suitable for various materials such as reinforced concrete brick and other construction materials; Different drilling speed version for appropriate situations; Electric leakage protection; Low noise,vibration,power consumption.
Technical Parameters of Dm160 Wet Dry Concrete Diamond Core Drill| Model | DM160 |
| Power input | 2200W |
| Voltage | 230V / 50Hz, 110V / 60Hz |
| No load r.p.m | Speed 1 | 400 - 850 |
| Speed 2 | 750 - 1640 |
| Speed 3 | 1550 - 3450 |
| Max. core bit | On rig | 8 in. (200mm) |
| By hand | 6 in. (150mm) |
| Available arbor thread | Male: 1-1/4"-7 UNC or Female: 1/2 BSP |
| Neck diameter | 60mm |
| Dimensions | 552mm X 110mm X 150mm |
| Soft Start & Overload Protection | With |
| Weight | 6.0 kgs ( 13.2 Lbs ) |
| Brand | China Coal |
| Packing Details | carton box, plastic bags, wooden cases or as your requirement |
| Delivery Time | 5-10 days after your payment |
| Payment Terms | TT, Western Union and Paypal |
| Supply Ability | 1000 sets per month |
| Minimum Order Quantity | 1 set |
| Price Terms | FOB |
| Port | Qingdao,Ningbo,Shanghai,Shenzhen |

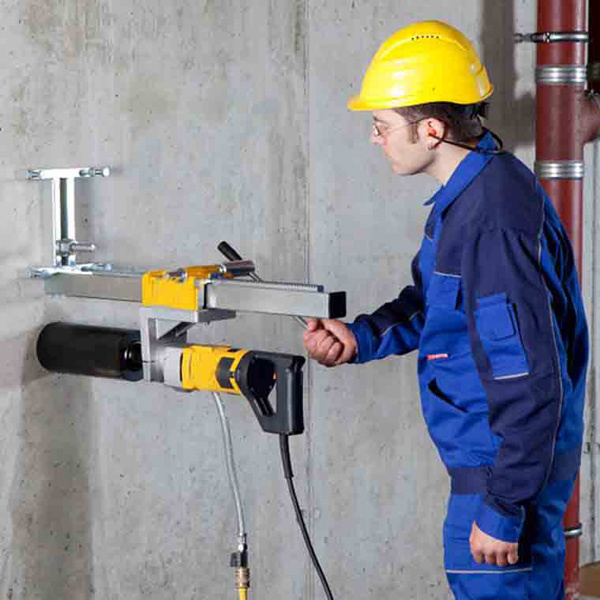

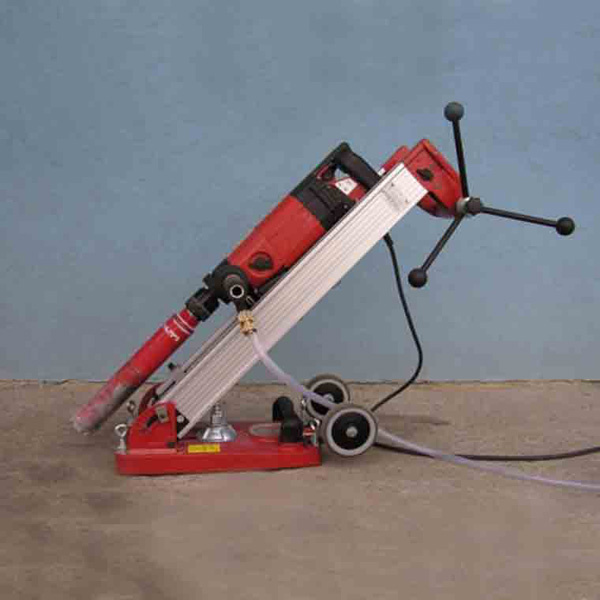

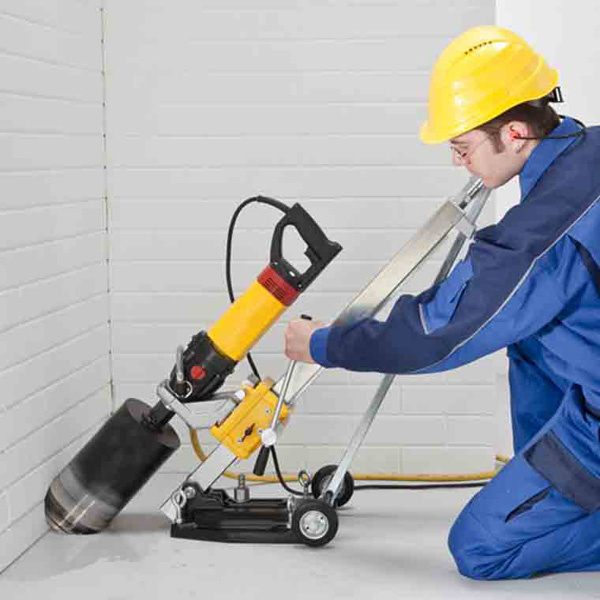

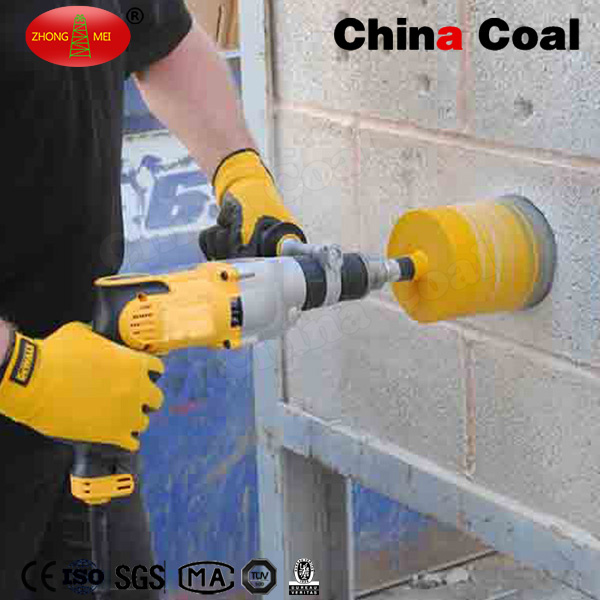

Photos Of Dm160 Wet Dry Concrete Diamond Core Drill
