| Prod Model: |
DH-602 door holder |
| Standard: |
ANSI |
| Material: |
Stainless Steel |
| Connection: |
Welding |
Product Description

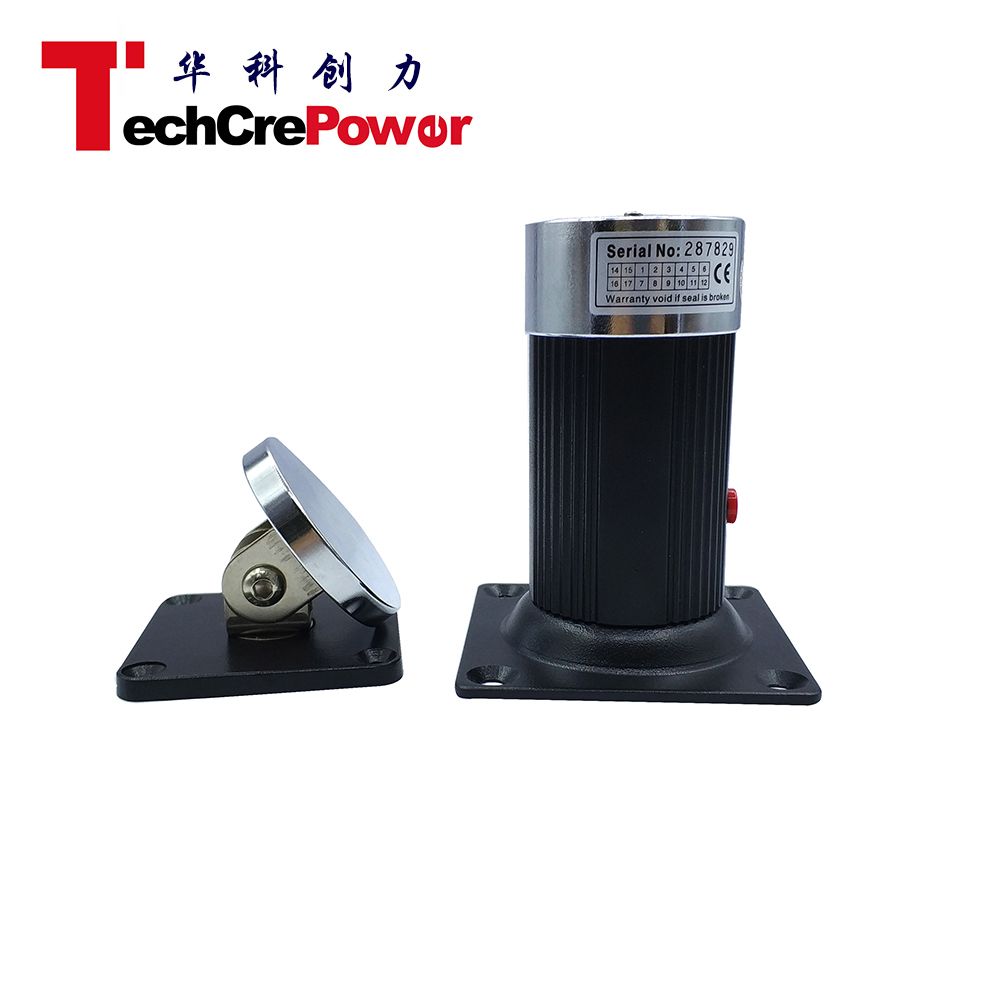

Door holding magnet/magnetic door holder/door hold open hardware Features:
• Dual Voltage Selectable(12VDC or 24VDC)
• Emergency Release Button/Test Button
• Wall Mounting Direction
• Low Current Consumption
• Reliable Fail-Safe Mechanism
• Durable and Silence Operation
Specifications:
| Product Parameter | Parameter Description |
| Dimensions | L80xW80xH105(mm) L90xW90xH47(mm) (DH-601L) |
| Holding Force | 50kg(110Lbs) |
| Voltage | DC24V+10%(Adjustment) |
| Current Draw | 12V/140mA 24V/70mA |
| Optional | Manual door release button |
| Suitable for | All Kinds of Single & Double Smokeproof Doors |
| Surface Temp | ≤+20°C |
| Operating Temp | -10~+55°C(14-131F) |
| Suitable Humidity | 0~90%(relative humidity) |
| Finishes for Shell | High Temperature Paint and Environmental Protection Zinc |
| Finishes for Armature | Zinc |
| Weight | 1.0kg |
Advantages:
• Collinear Load Test 50kg,110pounds.
• Dual Voltage 12 or 24 VDC(optional).
• The Standad Voltage is 12VDC when Finished.
• MOV Provides Reverse Current Protection.
• Low Power,Environmental Protection.
• Anti-Residual Magnetism Design.
• Professional Design, Dual Insulative Housing.
• Automatically close the smokeproof door when fire happens.
• CE Certificate by European Union
Established in 2003, Shenzhen Techcrepower Technologies Limited (Subsidiary of Shenzhen Huake Tech. ) is specialized in R&D and production of access control Products, including RS485 and TCP/IP based control panel, IE web based Control panel, RFID network and single door offline access controller, wiegand reader and other peripheral access control products. As a manufacturer with strong developing team and production capacity, we always look at the forefront of the world advanced technologies, dedicated to developing the clients' most requested products, we always improving and improving!
We strictly control the quality and regard it as our base for existence! Our products are chosen high quality materials and ensure the prophase stability. Our 5 assembly line workers are well trained and can provide very professional work. All our products will be conducted aging test for 72 hours. QC staffs make piece-by-piece checks for all products. The RFID Reader monthly Production Capacity is 15000PCS in our ISO 9001: 2000-certified factory. With multi-kind of test equipments, our quality can be ensured to meet international Standards.
We are proud of our advanced technologies, top quality products, as well as fast services! At present, we are an affordable hardware provider, supply strong support for distributors, resellers and integrators. In future, we aim to become an excellent solution provider for SME (small & medium enterprise) in security sector!
Our Target: Provide cost-effective products and timely services with the concept of "one store purchasing", realize win-to-win cooperation!
