| Prod Model: |
SC50X50 |
| Air Pressure: |
0.1-0.7MPa |
| Bore: |
32-250 |
| Standard Stroke: |
25-1000 |
| Material: |
Aluminum |
| Structure: |
General Cylinder |
| Power: |
Pneumatic |
| Standard: |
Standard |
| Pressure Direction: |
Double-acting Cylinder |

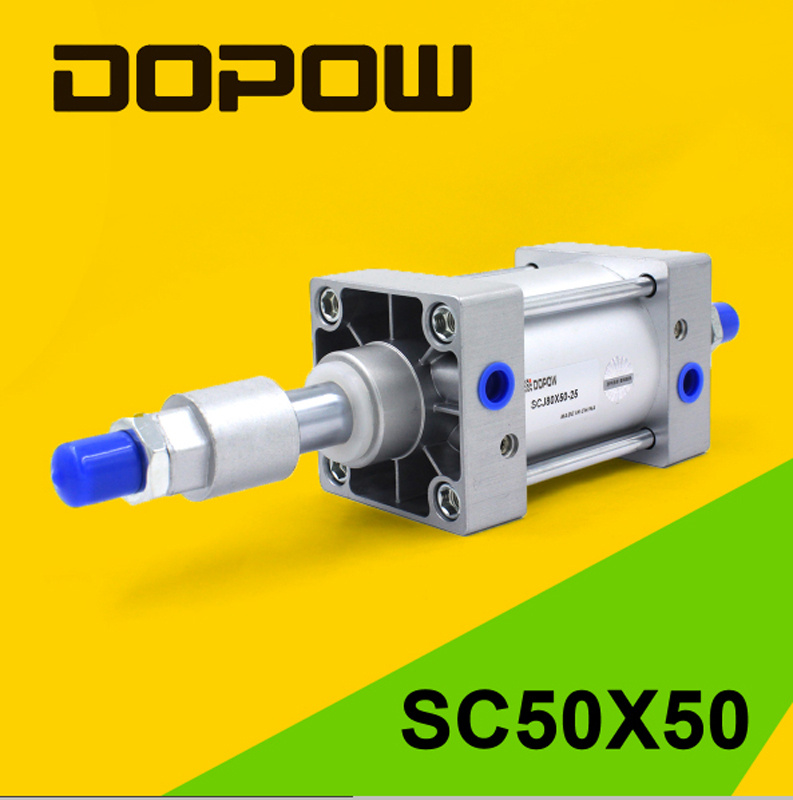

Product Description
Pneumatic cylinders are mechanical devices which use the power of compressed gas to produce a force in areciprocating linear motion.
Body material: Aluminium
Bore size: 32, 40, 50, 63, 80, 100 ,125,160,200,250,320
Magnetic: With or without
Fittings: LB, FA brackets
1.Standard cylinder manufactured by our enterprise.
2.The seal of piston adopts heterogeneous two way seal structure. It's dimension is tight and it has the function of
grease reservation.
3.It is tie rod cylinder.The cylinder barrel and front/rear cap is jointed by tie rods with high reliability.
4.Compared with ISO15552 standard cylinder,SC series cylinder with the same bore size is shorter.
5.The buffer adjustment of cylinder is smooth and steady.
6.Cylinders and mounting accessories with several specifications are optional.
| Bore (mm) | 32 | 40 | 50 | 63 | 80 | 100 |
| Motion pattern | Double acting |
| Working medium | Filtered air |
| Max. operating pressure | 1.0 MPa |
| Min. operating pressure | 0.1 MPa |
| Buffer type | Air (standard) |
| Ambient temperature | 5~60C |
| Operating speed | 50~500mm/s |
| Operating life | More than 4000Km |
| Lubricate | Not require |
| Port size | 1/8" | 1/4" | 3/8" | 1/2" |
