| Prod Model: |
SFHSG90/63-655*1030 |
| Product Name: |
Hydraulic Cylinder |
| Working Pressure: |
200 Bar |
| Rod Dia.: |
63mm |
| Bore Dia.: |
90mm |
| Stroke: |
655mm |
| Color: |
Customized |
| Application: |
Trucks,Forklift,Crane,Loader, Road Machinery |
Product Description

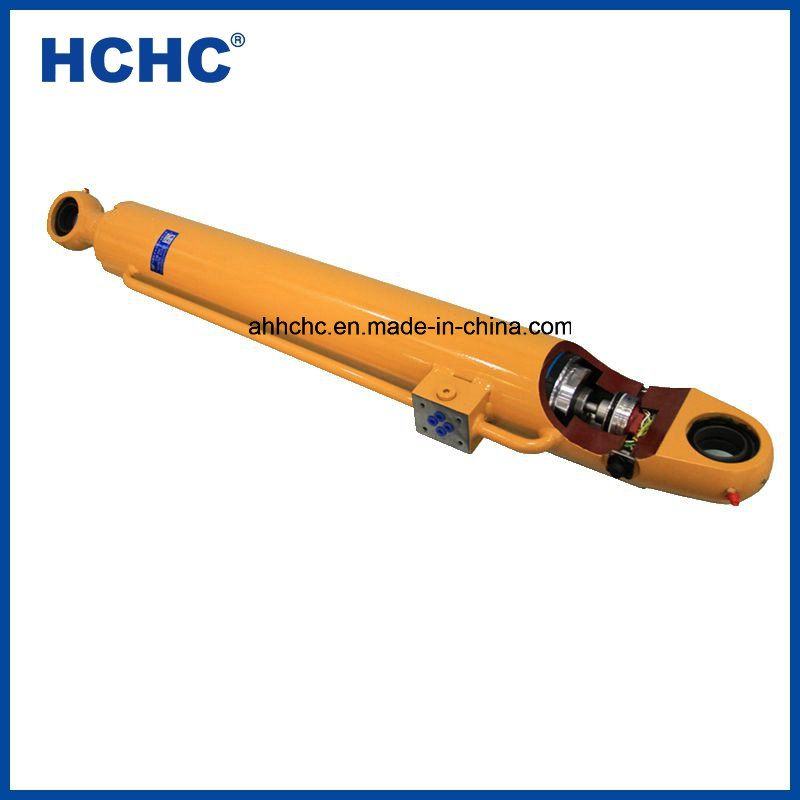

China supplier of double acting hydraulic cylinder with servo sensor SFHSGThe cylinder SFHSG series had magnetostrictive displacement sensor inside and with compact structure. The installation place is near to the normal cylinders.
Based on the character of servo cylinder, 1. we improved the design of sealing system, let the piston rod get the best oil film, to ensure the dynamic quality of servo cylinder under high pressure and bad condition.
2. Regarding the material of piston rod, we changed normal standard to higher standard and chroming, to improve the performance of anti-bending, anti-rust, wear-resisting and anti-damage.
3. Improve the surface roughness grade of cylinder bore and piston rod, satisfy the comprehensive performance of servo cylinder with low friction, no crawling and fast response. To improve the reliability and service life.
Model
|
Name
|
Pressure
bar |
Stroke
mm |
Bore dia. mm |
Rod dia. mm |
| SFHSG90/63-655*1030 | Lifting cylinder | 200 | 655 | 90 | 63 |
Founded in 1966, Hefei Changyuan Hydraulic Co., Ltd (HCHC) is a high-tech enterprise specializing in R&D, production and sales of various hydraulic components. The main products include hydraulic pump (hydraulic motor), hydraulic valve and hydraulic cylinder, which covers power, controlling and actuating of the hydraulic system. All these products are in wide varieties of more than 200 series with more than 4500 specifications, and widely applied in modern agricultural machinery, forklift truck, construction machinery, special vehicles and other non-moving field.
By increasing R&D investment, we have developed a series of core technologies and achievements that are at the leading level in China. It contains 170 national patents, 37 of which are for invention. We had also conducted or participated in the formulation or revision of 23 industry standards, 15 of which are for hydraulic cylinder. In addition, our company always adheres to the strategy of product quality first, and continuously strengthens the brand building, in 2014, our trade mark "HEYE" and "HCHC" were identified as National famous trademark in China.
With excellent product quality and good market reputation, we have established long-term stable cooperative relations with many well-known enterprises at home and abroad, such as China YTO, Foton Lovol, Zoomlion, HELI forklift, Hangcha group, XCMG group, Liugong Group, TLD, BYD, CLAAS, SHANTUI, Caterpillar, FURUKAWA, Wirtgen, etc. And HCHC was awarded excellent supplier for many years.
HCHC Sincerely looks forward to cooperate with you.
