| Prod Model: |
LJB2EA-600*6000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

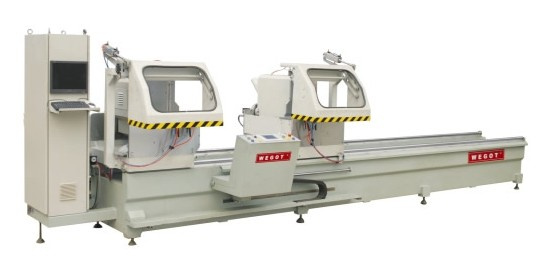

| Double-Head Cutting Saw CNC: |
Aluminum Window and Door |
Product Description
Features:
The machine uses European models, with neat appearance and beautiful style. The control system uses a new closed-loop system, which ensures the accuracy of repeated length. The imported motor contacts the saw blades directly, and the cutting action is lever swing form.The Saw blade feeds is driven by gas-liquid damping cylinders, the cutting is stability.With high-quality industrial control computer, this is to support the direct transfer of external data.It can enter the root of the tree for cut, it is to achieve continuous cutting with different lengths.With a follow-up opening and closing saw, safe and reliable, good working environment.With a movable profile-holding bracket, it has a compact structure and needs only a small area.Each machine head has two cylinders for clamping profiles, which ensures cutting safe and reliable.Can automatically complete the function of ultra-short cutting and ultra long cutting.Optional bar code printer, the formation of E-works digital factory system.Technical parameters
Technical parameters:
| Power supply | 380V 50Hz |
| Cutting motor | 2*3.0Kw Rotary speed: 2800r/min |
| Operation pressure | 0.5~0.8MPa |
| Air Consumption | 60L/min |
| Saw blade | Ø600* Ø30*4.8-Z144 |
| Cutter feeding speed | Stepless speed regulation 0-3m/min |
| Cutter moving speed range | 0~20m/min |
| Cutting length | Max. 6000mm min. 520mm at 90o
Max. 6000mm min. 820mm at 45o |
| Cutting width | 180mm |
| Cutting height | 240mm |
| Cutting angle | any angle in the range of 45o -157.5o |
| Repeat positioning length tolerance | ±0.2mm |
| Profile surface plane after cutting | ≤0.10mm |
| Cutting angle tolerance | ±5′ |
| Profile surface Roughness after cutting | Ra12.5µm |
| Dimension | 8000*1500*2040mm |
| Weight | 2800Kg |
Jinan Tianchen is a professional manufacturer of all kind of window, door and curtain wall processing machines, with large sales and service net, including equipemnts of aluminum windows, curtain wall, aluminum & wood window, solar board aluminum frame, industry aluminum profile etc, and steel tower machines, steel structure machines, which is affiliated with Jinan Tianchen Machine Group. The main products are Machining center, CNC Machining Center, CNC Machine, Processing center, Aluminum Window Machine, Alumunum Curtain Wall Machine, CNC Machine Tool, CNC angle line machines for telecommunication tower and power transmission tower, CNC steel structure processing machines, etc. The main machine types are: CNC Punching, Marking and Cutting machine for angle bars; CNC Drilling and Marking machine for angle bars; CNC Punching and Marking machine for steel plates; CNC Drilling machine for H-beams; etc.
Tianchen machines have very good quality with quite competitive price, they are very popular in the market, specially for Aluminum curtain wall, Aluminum window & door, tower manufacture industry and steel structure fabrication industry.
