| Prod Model: |
LJZ2-450X3700 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Machinery & Hardware |
| Type For Cutting Machine: |
Hydraulic Cutting Machine |
| Type For Fold-bending Machine: |
Hydraulic Fold-bend Machine |
| Automation: |
Automatic |
| Type: |
Aluminum Cutting Machine |
Product Description

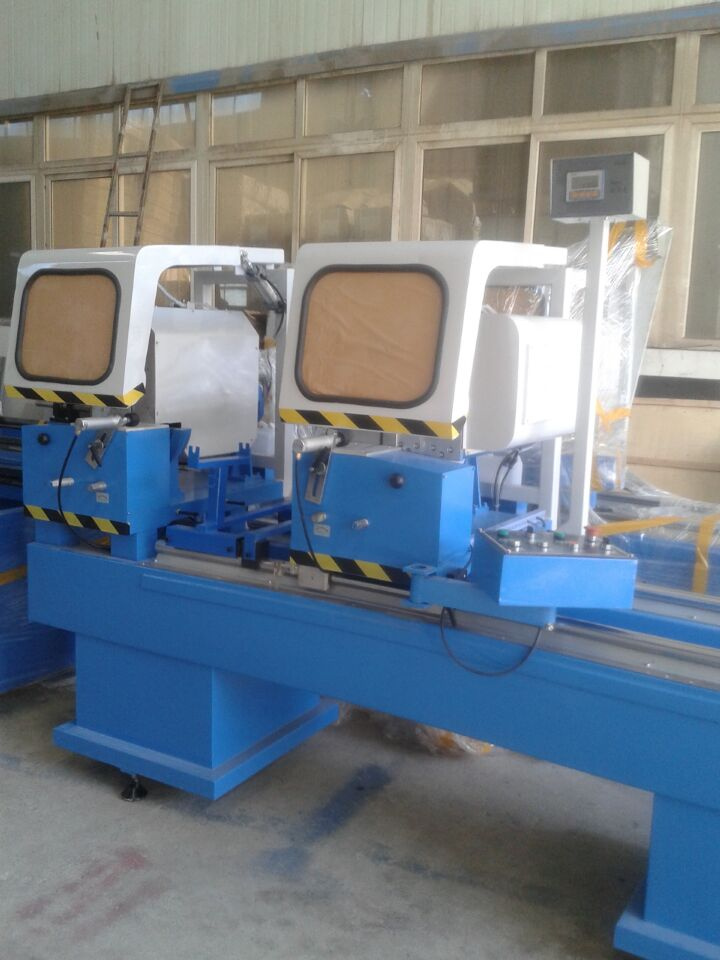

Double-head cutting saw (LJZ-450X3700)
1. Description:
The main axle of the saw is made precisely highly, and is specialized for the hard alloy saw. The go and back of the cutting can synchronous with the left and right moving of the head of the machine, is made by the bearing pair. The moving of the saw is motivates by the hydraulic damper cylinder. The range of the production is very large, and the length of cutting can arrive 4200mm, the cutting angles are 90, 45 and 22.5. They can change into another automatically. The frame can go and back automatically with the head of the machine. The safety precaution can up and down with the saw safely. The air valves control the corner cylinder, and save the electricity of the machine.
2. Technical Parameter:
| Air pressure | 0.5-0.8MPa |
| Air consumption | 200L/min |
| Power | 380V 50Hz |
| Motor power | 2.2KWx2 |
| Cutting angle | 90 45 65.5 (22.5) (degree) |
| Saw blade standard | 500x4.4x30xZ120 |
| Cuttting length | 400x3700mm |
3. Payment: Telex Transfer (T/T), 30% be paid after confirming the order and the rest 70% is effected while delivering the goods.
Package: Each PC in wooden cases.
Port of Loading: Qingdao, China
Delivery Time: During 20 days after we receive your first payment.
Guarantee & Aftersales service:
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
Contact person: Ms. Ceci Liu
Mobile: +86 15098968538
Since established the company, relying on its mighty real development strenght, advanced management mode, and excellent officers and workers, becomes gradually the professional enterprise with the produces, profession management, sale and after-sales services in a whole. Now our equipments has been exported to many foreign countries. New generation alumi doors and windows that company develops and research concentrates on the industrial development in building materials in Chinese chemistry, can produce the every kind of products with such good functions as elegant appearance, varied colors, soundproof, watertightness and etc. And it can satisfy aluminum and pve doors and windows and insulating glass machine's building requests, improved the Chinese living environment.
