| Prod Model: |
LJZ2X-500*4200 |
| Weight: |
1850kgs |
Product Description

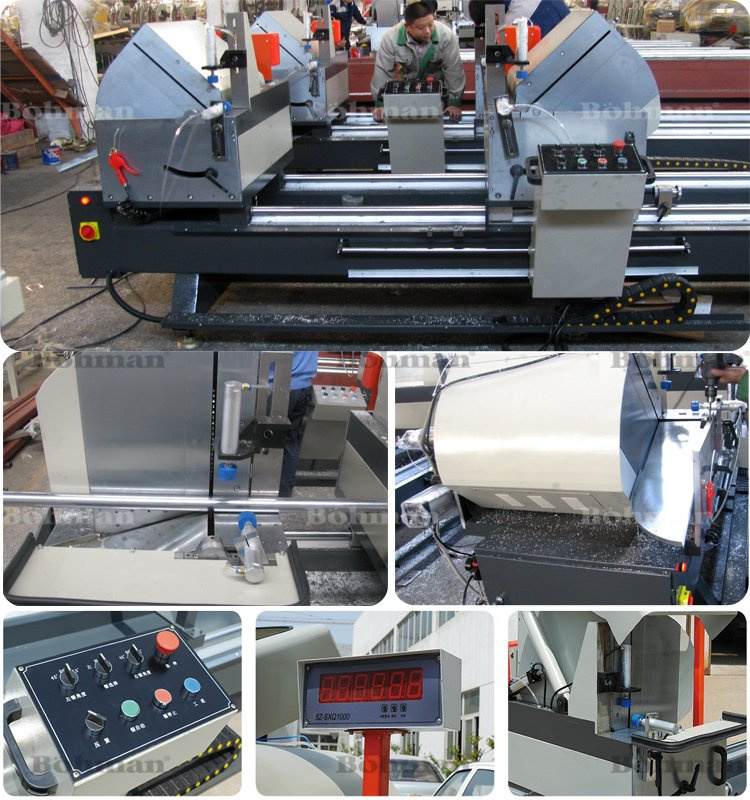

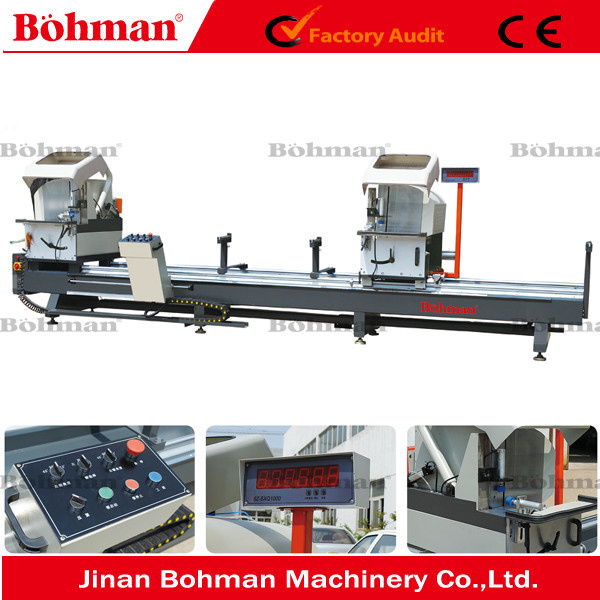

Production Name: Aluminum Digital Display Double Mitre Saw Features: - Imported carbides blase is of accurate processing and high endurance.
2.Saw blade rotates smootjly due to gigh accurate main spindle.
3.Uniformspeed feeding and smooth motion is due to air hydraulic damping cylinder.4.Saw blade rotates smoothly due to high accurate main spindle. 5.The feeding system adopts the importecd linear guide pair,with high accuracy and stability.
6 Two saw heads are adjustable and cut the profiles in 67.5,45 and 90 freely.. 7.Auto-opening shield maked the operation safety.
8.The machine adopts digital display device,the length is more accurate,more intuitive to operate. Technical Parameters: | Power supply | 380V 50Hz |
| Power | 2x2.2Kw |
| Operation air pressure | 0.5-0.8Mpa |
| Motor speed | 2800r/min |
| Blade specification | Φ500xφ30mmx4.4xZ120 |
| Max. Cutting length | 400-4200mm |
| Cutting angle | 90º~67.5~45º |
| Cutting widthxheight | 135mmx200mm |
| Overall dimension | 5530*1650*1500 |
| weight | 1850kgs |

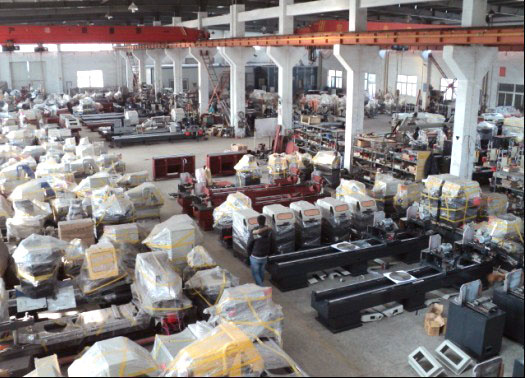

Jinan Bohman Machinery Co., Ltd., located in West-high Speed Railway Station, Jinan City, Shandong Province, is a high-tech enterprise specialized in the research, manufacture and sale of aluminum-plastic door & window production equipment, high and medium grades of insulating glass production equipment and CNC router. Our products sell very well in China and are exported to many foreign countries and regions. We have many experienced technical engineers and experts who have been worked in this industry for many years. We are familiar with the situation of this industry at home and abroad. We have mastered the latest technique of the similar equipment, and have got strong ability of product research and technique support.
Based on the modern technique, we have produced all kinds of aluminum-plastic door & window production equipment and high and medium grade insulating glass production equipment, with modern technology and stable performance. Our main products are saw cutting equipment, milling equipment, angle seam cleaning equipment, angle joint equipment, various specifications of vertical insulating glass production lines, glass curtain wall production lines, LJT butyl coating machines, GT03 bicomponent rubber spreading machines, compound sealing spacer insulating glass production lines and all kinds of auxiliary equipment.
By virtue of specialized production, good quality and excellent after-sales service, Bohman has got wide recognition and praise from customers at home and abroad. Since the establishment of our company, we have taken "being an honest enterprise, producing the best equipment" as our tenet and taken the quality of our products as the lifeline of our enterprise. We also focus on the research and development of energy saving and environmentally friendly products, try to make the best equipment for manufacturing aluminum-plastic doors & windows and insulating glass and make Bohman a world famous brand.
