| Prod Model: |
HKL221 |
| Long Working Lifetime: |
45days |
| Suitable: |
Ceramic Tile and Stone |
| Characterstics 1: |
High Sharpe]Ness |
| Characterstics 2: |
Good Polishing |
| Characterstics 3: |
Low Noise |
| Characterstics 4: |
Stable Quality |
Product Description
DIAMOND TOOLSAs increasing of the higher quality and performance requirement of diamond tools by customers, diamond tools become the most important polishing tools that widely ues in grinding and cutting of ceramic,stone,and artificial stone area. The product series including diamond roller, diamond cylindrical wheel, diamond squaring wheel, diamond chamfering wheel, diamond resin bond squaring wheel, diamond abrasive, cutting blade, segment, diamond chamfering wheel , diamond resin bond squaring wheel, diamond abrasive, cutting blade, segment, diamond gang saw etc, it has the characteristic of high sharpness, good effect, long working lifetime, high efficiency&environment protecting and low cost, we can also supply other size and formula upon different requirements, different processed material.DIAMOND SQUARING WHEELDiamond Squaring Wheels are used to make modifying the uprightness of ceramic tiles four edges in
order to achieve scheduled size It is a necessary squaring tool for big size glaze ceramic tiles,porcelain tiles and polished porcelain tiles. The advantages of our diamond squaring wheels can be summarized as following:- Good sharness, long working lifetime and low working noise.
- Good uprightness and precise size of processed tiles edges without breaking and chipping
- Strict production process control and stable quality
- Individual formulation and grit match are available for different ceramic tiles quality.
Diamond Squaring Wheel is classified into Diamond Squaring Peripheral Wheel and Diamond Squaring Disk Wheel according to different grinding and cutting modes,and it is classified into Metal-Bond Diamond Squaring Wheel and Resin-Bond Diamond Squaring wheel according to different bond used.

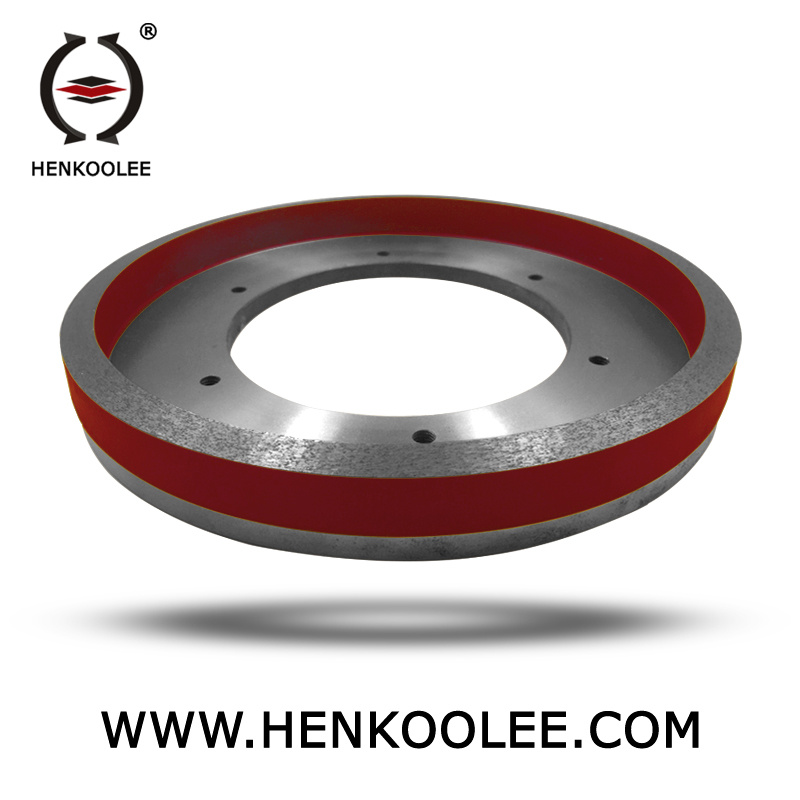

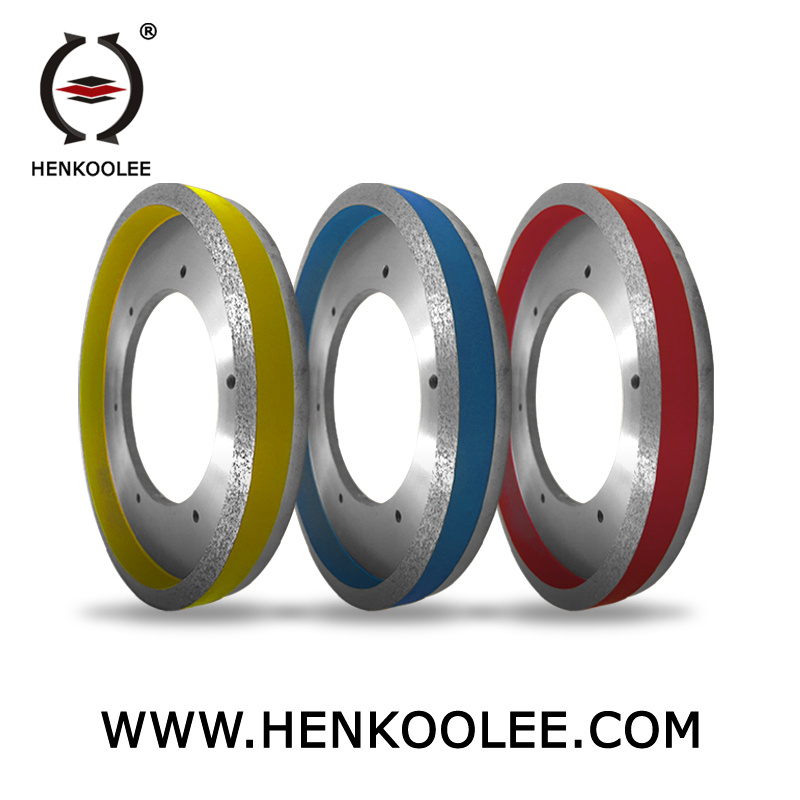

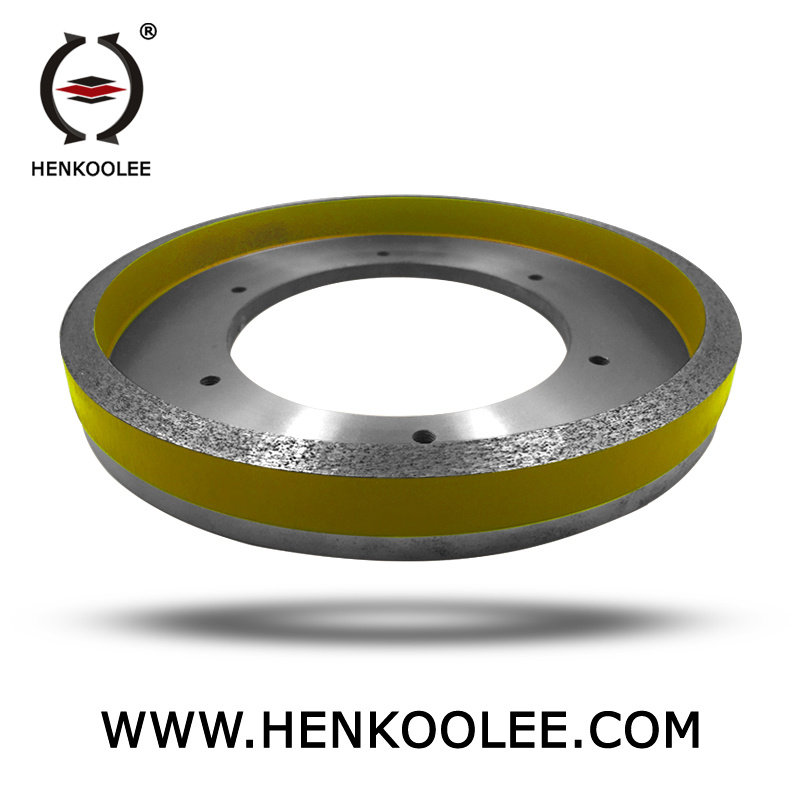

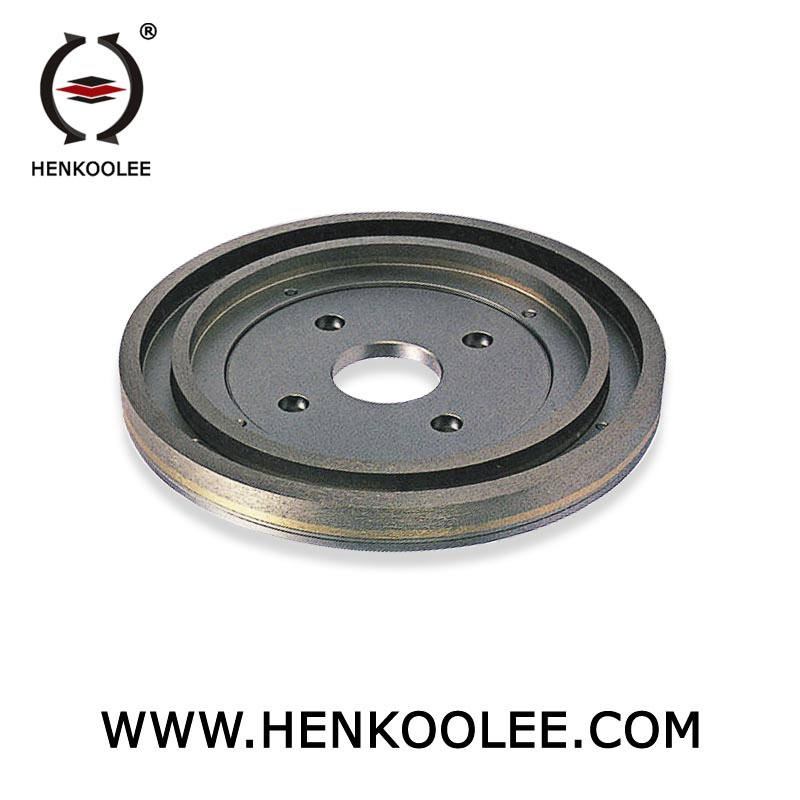

We can produce any required specs of diamond squaring wheels used on different ceramic squaring machines.CONTINUOUS-RIM DIAMOND SQUARING WHEELThis is the most common used squaring tools for ceramic tiles edges According to the segment structure it is classified into Segmented Squaring Wheel, Segmented-Continuous Rim Squaring Wheel and Continuous-Rim Squaring Wheel.METAL-BOND DIAMOND DISC SQUARING WHEELThis is the most common used squaring tools for ceramic tiles edges According to the segment structure it is classified into Segmented Squaring Wheel, Segmented-Continuous Rim Squaring Wheel and Continuous-Rim Squaring Wheel.

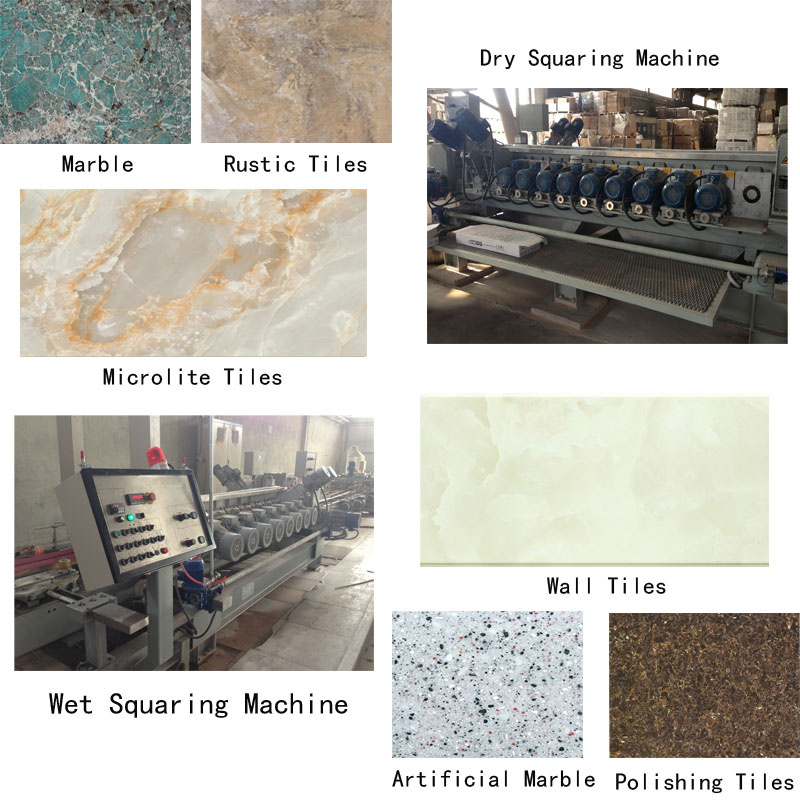

APPLICATION
SPEC AND PARAMETER| DESCRIPTION | OUTER DIAMETER
(MM) | SEGMENT
(MM) | GRIT | USED FOR |
| CONTINUOUS RIM DIAMONE SQUARING WHEEL | Φ250 | 10x20
12x20 | D301(50#) D251(60#) D181(80#) D151(100#)
D126(120#)
D107(140#) D91(170#) | ROUGH AND MEDIUM AND FINE GRINDING |
| Φ300 | 10x20
12x20 |
REMARK:OTHER SPESC SPECS ARE AVAILABLE UPON REQUEST.
