| Prod Model: |
TSY-PH90A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Granite Drill |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Structure: |
Vertical and Horizontal Drilling |
| Layout: |
Vertical and Horizontal |
Product Description
Skystone has been devoting to manufacture diamond tools for the stone industry since 1994,which has a professional diamond wire saw manufacturing factory ,a stone machine manufacturing factory, a diamond tool R&D center, a equipment R&D center,a mining project technology center and a building cutting technology center.Our range of wires covers all the needs in quarries as well as in processing for marble, granite and abrasive materials.Our product performance have been widely proven in the world, and they are exported to Brazil, Iran, Norway, South Africa, Turkey, Russia, Poland and other 30 countries.
For granite quarries, the cables are in general fitted by injection of a vulcanised rubber, whereas cable used in granite and marble sawing works are more often injected with plastic.The ongoing research allows the our products can satisfy all the customer need.

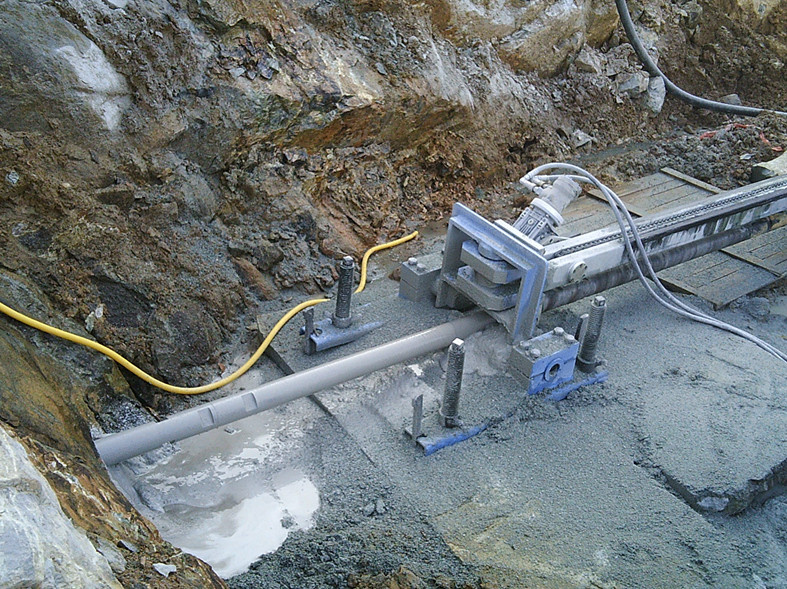

The TSY-PH90A drill is a new model drill we developed specially used for stone quarry and the drill hole can be different diameter, depth, multi-orientation & angle. Now it is indispensable for mine quarrying, stone dynamite and diamond wire passing.
The characters of the drill:
1. Light weight, easy installation and transportation;
2. The high quality pneumatic components ensure lower energy & air consumption and high efficiency;
3. The good hoisting ability;
4. The particular mechanical tube devices for screwing and discharging to reduce the labor intensity;
5. The Particular design for guiding drilling.
Remark
The total weight of machine is 800kg(including 20 drill pipes and 1 aiguille).
| Technical Parameter |
| Power voltage | 380V/50HZ |
| Power of rotation motor | 5.5KW |
| Maximum pressure of ratating | 12.5Mpa |
| Maximum pressure of forward & withdraw | 8Mpa |
| Diameter of the drill hole | 90mm-100mm |
| Depth of the drill hole | ≥30m |
| Drill speed | 5-10m/h |
| Single Feeding distance | 1500mm |
| Hoisting ability | 1300kg |
| Air consumption | 6-10m 3/min |
| Working air pressure | 0.5-0.8Mpa |
| Weight of main drill frame | 150kg |
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
