| Prod Model: |
diamond core drill bit |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Diamond Core Drill Bit |
| Dimension(mm): |
55 |
| Spec(mm): |
10*3*10 |
| Tooth(Entries): |
3 |
| Wsable Length(mm): |
40 |
| Suggested R. P. M: |
1500-2000 |
| Feed Speed(mm/Min): |
40-60 |
| Usage: |
Drilling |
| Manufacturing Arts: |
Sinter |
| Feature: |
Fast Cutting Efficiency |
| Type: |
Core Drill Bit |
Product Description

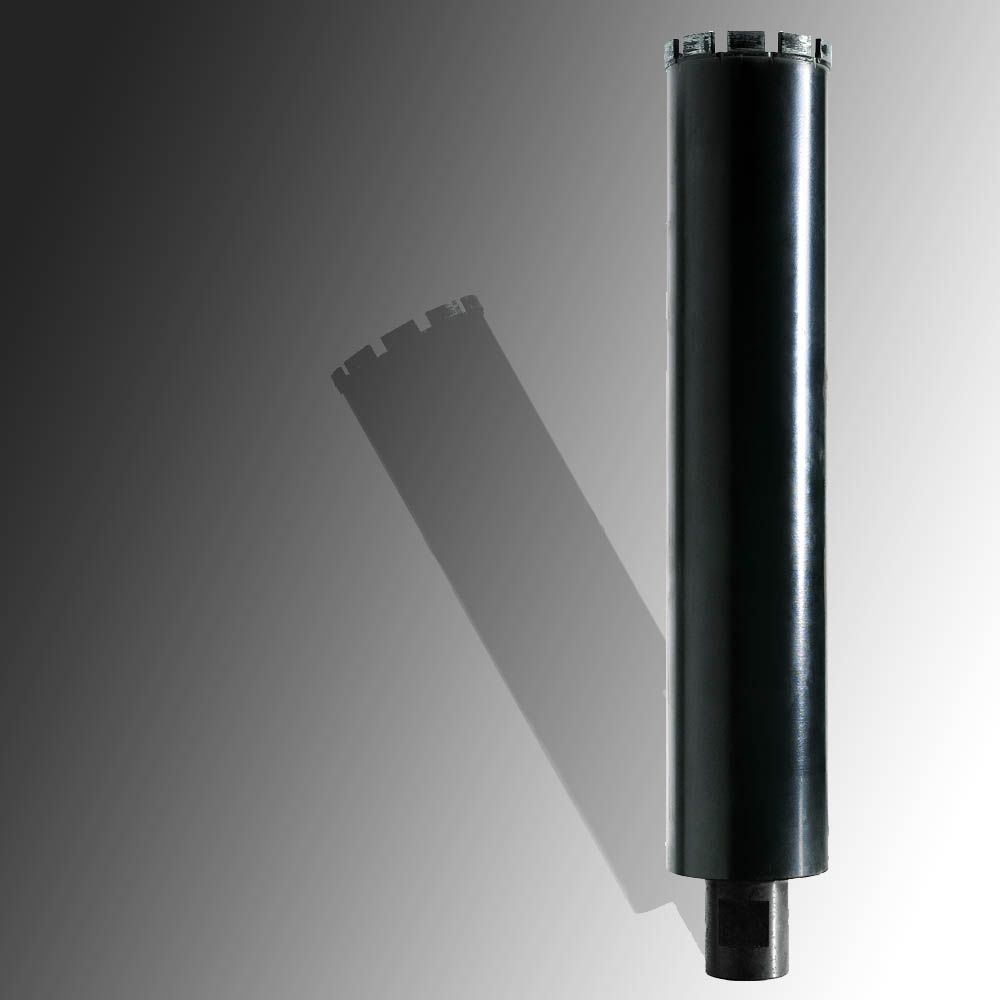

CORE DRILL BITS
CHARACTERISTICS OF PRODUCTS
1. High effciency, long life and no breaking of segments.
2. Sizes of adaptor for threaded bit: M14, M16, G1/2", 5/8"-11.
3. Applicable for drilling of brick wall, concrete, concrete with steel.
| Type | Code | Description
(mm) | Spec
(mm) | Tooth
(Entries) | Usable
Length(mm) | Suggested
R. P. M | Feed Speed
(mm/min) |
| Core Drill Bit | CDB | 19-22 | 10*3*10 | 3 | 40 | 3000-3500 | 70-90 |
| Core Drill Bit | CDB | 25 | 10*3*10 | 3 | 40 | 3000-3500 | 70-90 |
| Core Drill Bit | CDB | 30-32 | 10*3*10 | 3 | 40 | 3000-3500 | 70-90 |
| Core Drill Bit | CDB | 35-40 | 10*3*10 | 3 | 40 | 2000-2800 | 60-80 |
| Core Drill Bit | CDB | 45-50 | 10*3*10 | 3 | 40 | 2000-2800 | 50-60 |
| Core Drill Bit | CDB | 55 | 10*3*10 | 3 | 40 | 1500-2000 | 40-60 |
| Core Drill Bit | CDB | 60 | 10*3*10 | 3 | 40 | 1500-2000 | 40-60 |
| Core Drill Bit | CDB | 65 | 10*3*10 | 3 | 40 | 1500-2000 | 40-60 |
| Core Drill Bit | CDB | 70 | 10*3*10 | 3 | 40 | 1500-2000 | 40-60 |
| Core Drill Bit | CDB | 75-85 | 10*3*10 | 3 | 40 | 1500-2000 | 40-60 |
| Core Drill Bit | CDB | 90 | 10*3*10 | 3 | 40 | 1500-2000 | 40-60 |
| Core Drill Bit | CDB | 95-100 | 10*3*10 | 3 | 40 | 1000-1500 | 05-45 |
| Core Drill Bit | CDB | 125 | 10*3*10 | 3 | 40 | 1000-1500 | 25-45 |
| Core Drill Bit | CDB | 150 | 10*3*10 | 3 | 40 | 1000-1500 | 25-45 |
