Prod Model: |
HH130 |
Packing: |
Follow Customer's Requested |
MOQ: |
1 Set |
Loading Port: |
Tianjin Port |
Drill Angle: |
90-75 |
Weight Without Power: |
620 |
Usage: |
Exploration of Railway,Road,Bridge |
Our Main Market: |
Mide, Africa, North/South America, Asia |
Weight: |
620 |
Warranty: |
Within 3 Years |
Payment: |
T/T, L/C or as Buyer Required |
Product Description
Drill tool machine tool Multipurpose drilling machine manual mining drilling machine

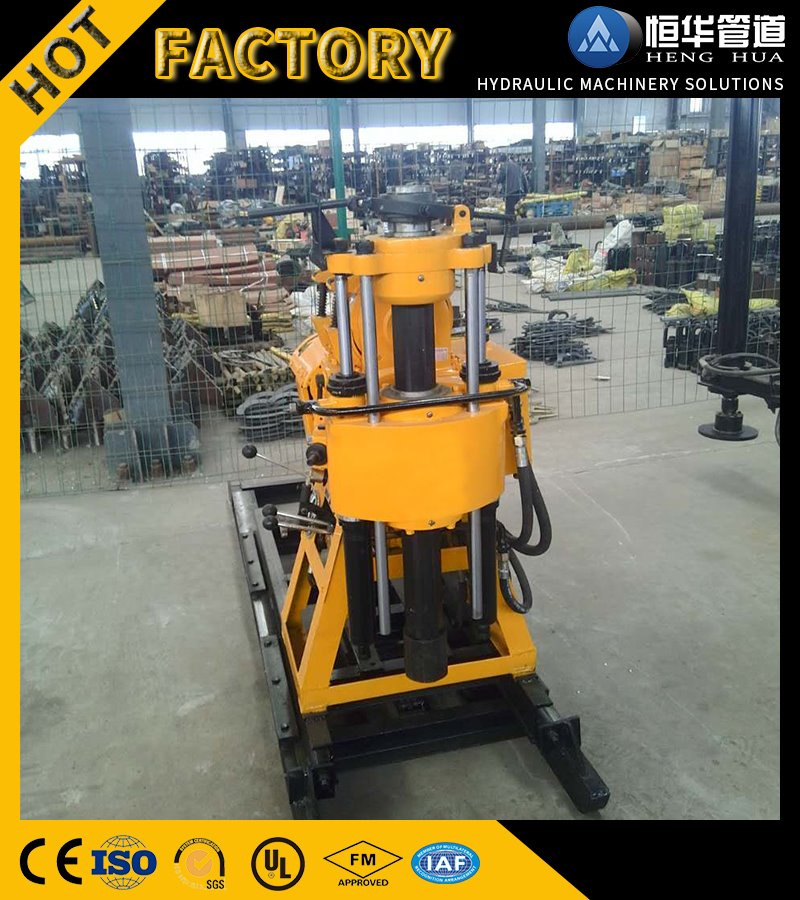

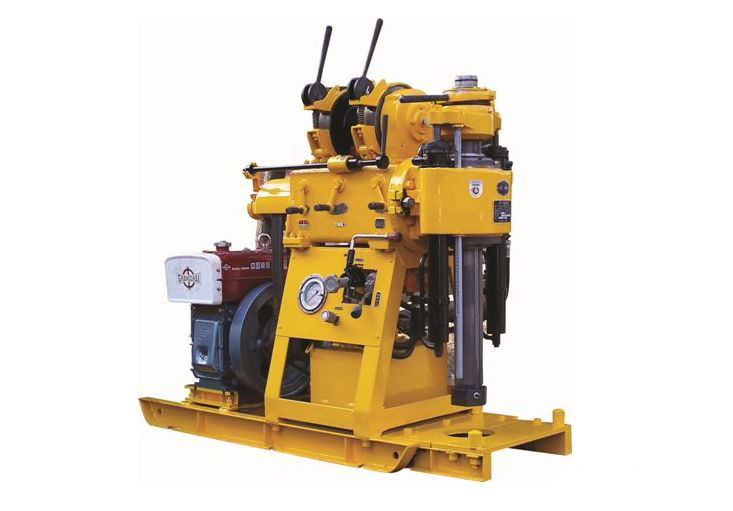

Our Drilling Rig Photo

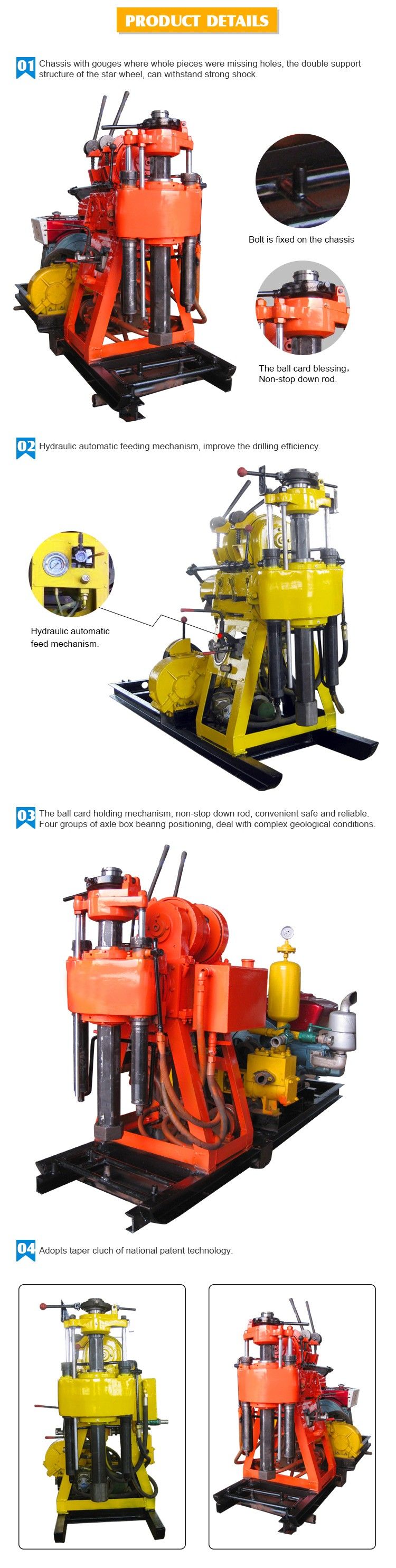

What is our Drilling Rig features & Application?
a. Keeping bracket is installed on the hosit to form a double wheel support structure, able to withstand strong blow
b. Vertical box are fixed by four groups of bearings to ensure that the rotary machine has sufficient rigidity to overcome gravel layer and other complex geological conditions.
c. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.
d. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.
General investigation, geophysical survey, road and tall building base prospecting, drilling projects like water well, blast hole and so on. According to different geological conditions, you can choose drilling bit kinds: diamond, alloy and steel particles to drill.
What is our Drilling Rig technical paremeter? | Model | HH-130 | HH-180 | HH-200 |
Tech Parameter | Drilling Depth(m) | 130 | 180 | 200 |
Open hole dia.(mm) | 220 | 220 | 220 |
End hole dia.(mm) | 75 | 75 | 75 |
Drill rod dia. | 42-60 | 42-60 | 42-60 |
Drilling angle(°) | 90-75 | 90-75 | 90-75 |
Matching power(kw) | 13.2 | 13.2 | 14.7 |
Weight without power | 620/750 | 620/750 | 880/970 |
Dimension | 2.4x0.8x1.3 | 2.4x0.8x1.3 | 2.7x0.9x1.5 |
Spindle | Speed(r/min) | 142/285/570 | 130/300/480/ 730/830/1045 | 64/128/287/557 |
Stroke(mm) | 450 | 450 | 450 |
Winch | Max pull force(kg) | 2100 | 2100 | 2500 |
Pull speed(m/s) | 0.35-2.23 | 0.35-2.23 | 0.12-0.95 |
Rope dia.(mm) | Φ9.3 | Φ9.3 | Φ12.5 |
Roll capacity(m) | 27 | 27 | 35 |
Drill Mast | Rated load(ton) | 18 | 18 | 18 |
Height(m) | 6.5 | 6.5 | 6.5 |
Mud pump | Flow(L/min) | 95 | 95 | 145 |
Max. pressure(Mpa) | 1.2 | 1.2 | 2 |
times/min | 93 | 93 | 93 |
| Inlet hose dia.(mm) | 51 | 51 | 51 |
Outlet hose dia.(mm) | 32 | 32 | 38 |
Product Details Why Choose Us HENGHUA?
Customer's satisfaction is our success. HENGHUA will assist customers to build product lines at any time any place. We can supply our customers products, at the same time with technical support and professional service. HENGHUA endeavor ourselves to render best relationship, friendship and high reputation from overseas customers.
What Certificate & Quality Assurance We Have?
We have obtained a number of qualified certificates from international quality assurance organization, such as ISO9001:2000, CE certified, SGS 3-party verifications, etc. We welcome customers with high and strict quality requirement so that we could get win-win cooperation and improve mutually hand in hand.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a professional drilling rig and its parts manufacturer.
Q2: What does your company produce?
A: The main products of our company include rotary drilling rig, Kelly bar, drilling bucket, drilling auger, casing oscillator, desander and tricone bit, etc.
Q3: How about your delivery time?
A: Normally the delivery time is about 35 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C, Western Union or as customer requested
Q5: What is the MOQ?
A: Small trial order is acceptable, like 1 set, 2 sets…
Q6: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
Why Not Sending Enquiry to Us NOW?!?!
