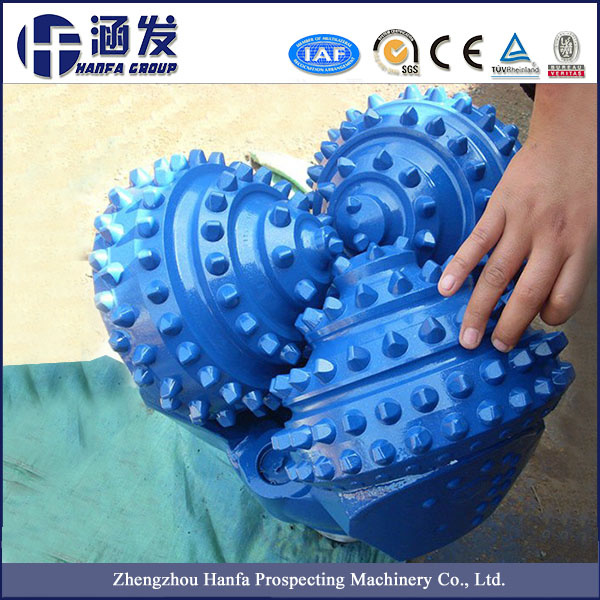

Drilling Equipment Tricone Bit
| Price: |
US $ 200-800/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
Tricone Bit |
| Model: |
TCI Bit, Steel Tooth Bit |
| Delivery Terms: |
by Sea or by Air |
| Button Size: |
Button Bit,Saw Teeth |
| Type: |
Cone Drill Bit |
| Use: |
Drilling Machine |
Product Description
Drilling Equipment Tricone Bit
1.Tricone bit cutting structure
Adopting new formula of new technology of the high quality hard alloy tooth, enhance the cutting teeth mechanical properties.
2. Tricone bit diameter structure
Using multiple gage protection structure: Die with multidrug trimming tooth (GT teeth), round back, claw back set have cemented carbide gear, surfacing resistance mo alloy, strengthen ZhaoJian and anterior apply welding, greatly improving the drill gage protection ability.
3. Tricone bit bearing structure
Adopting high precision with radial sliding, two way thrust bearings, ball tight. Tooth claw big shaft neck and two stop surface welding have wear-resisting alloy, cone big hole and two stop surface solution and silver inlaid special alloy, increase the abrasion resistance and resistance bearing vice occlusive ability, improve bearing ability of high speed vice adapt.
4. Tricone bit seal lubricants
Adopting advanced metal seal, greatly extend the drill life.
5. Tricone bit applicable
Metal seal bit stable performance, than common rubber seal bit longer life, suitable for underground power drill and high penetration rate turntable drilling.
| IADC | WOB | RPM | Application |
| (KN/mm) | (r/min) |
| 111/114/115 | 0.3-0.75 | 200-80 | very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk |
| 116/117 | 0.35-0.8 | 150-80 | very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk |
| 121 | 0.3-0.85 | 200-80 | soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone |
| 124/125 | 180-60 |
| 131 | 0.3-0.95 | 180-80 | soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds |
| 136/137 | 0.35-1.0 | 120-60 |
| 211/241 | 0.3-0.95 | 180-80 | medium formations with high compressive strength, like medium, soft shake, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbeds. |
| 216/217 | 0.4-1.0 | 100-60 |
| 246/247 | 0.4-1.0 | 80-50 | medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite |
| 321 | 0.4-1.0 | 150-70 | medium abrasive formations, like abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble |
| 324 | 0.4-1.0 | 120-50 |
| 437/447/435 | 0.35-0.9 | 240-70 | very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk, gypsum, salt, soft limestone |
| 517/527/515 | 0.35-1.0 | 220-60 | soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone |
| 537/547/535 | 0.45-1.0 | 220-50 | soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds |
| 617/615 | 0.45-1.1 | 200-50 | medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite |
| 637/635 | 0.5-1.1 | 180-40 | hard formation with high compressive strength, like limestone, sandstone, dolomite, hard gypsum, marble |
| Note: Above limitts of WOB and RRPM should not be used simultaneously |
PIN SIZE
| Bit Diameter | API PIN |
| (inch) | (mm) |
| 3 7/8"~5 1/4" | 98~134 | 2 3/8", 2 7/8" |
| 5 5/8"~6 3/4" | 143~171 | 3 1/2" |
| 7 1/2"~9 1/2" | 190.5~241 | 4 1/2" |
| 9 5/8"~13 3/4" | 245~350 | 6 5/8" |
| 14 5/8"~26" | 371~660.4 | 7 5/8" |
