| Prod Model: |
HQZ-155 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dia Of The Hole: |
80-100mm |
| Depth Of The Hole: |
≥20m |
| Rotation Speed: |
0-84rmp |
| Working Pressure: |
0.5-0.7MPa |
| Specification Of Drill Rod: |
60*1000mm |
| Air Consumption: |
≥7m3/Min |
| Lifting Power: |
9600n |
| Weight: |
500kg |
| Motor Power: |
4kw |
| Capacity (M³/Min): |
9 |
Product Description

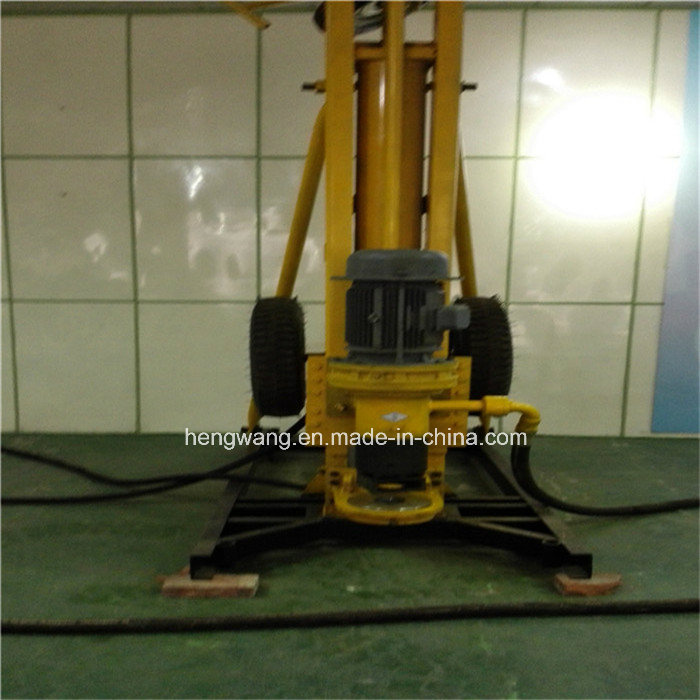

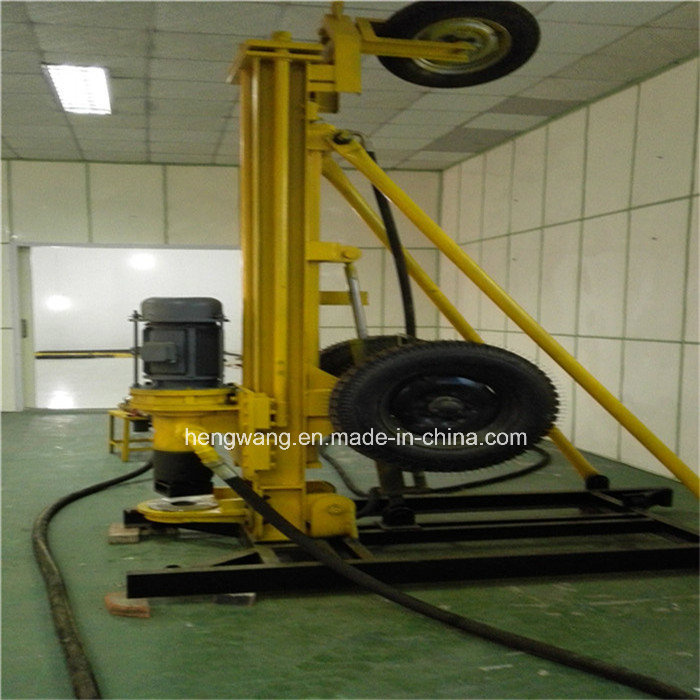

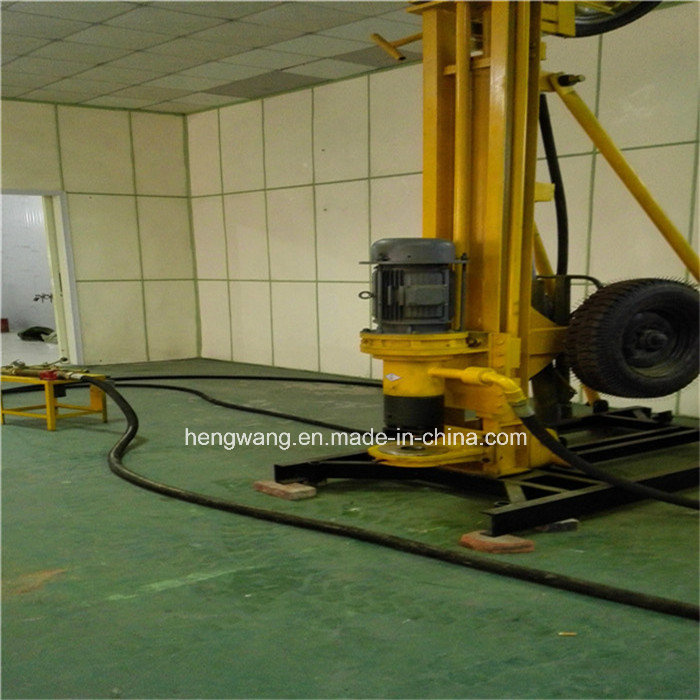

DTH Hammer Air Compressor Hydraulic Hard Rock Drilling Machine (HQZ-155)
Features:
1.High drilling efficiency, power provided by energy saving motor
2.High efficiency, large rotary torque
3.Simple structure and easy to move
4.Adopt consummate design, long service life
5.Easy to operating
Introductions:
HQZ100B core drill rig is a high adaptability pneumatic DTH drill rig, with the characteristic of simple structure, easy operation and energy saving. It can also drill vertical and horizontal blast holes in the fields of mines,national defence, water conservation, road building and
stonework. It has low center of gravity and its detachability is good.
It is essential for open mining drilling equipment, especially for the other drill rigs that do not work in the uneven rugged terrain; It is with the characteristic of compact structure, easy operation,
fast cutting speed, high efficiency, good removable.
Technology Parameters
Specification of HQZ100B Core Drill Rig:
Dia of The Hole |
80-100mm |
Depth of The Hole |
≥20m |
Rotation Speed |
0-84rmp |
Working Pressure |
0.5-0.7Mpa |
Specification of Drill Rod |
60*1000mm |
Air Consumption |
≥7m3/min |
Lifting Power |
9600N |
Weight |
500KG |
Motor Power |
4KW |
Matched Portable Diesel Piston Air Compressor:
Model |
CVFY-9/7 |
Capacity (m³/min) |
9 |
Working Pressure (Mpa) |
7 |
Weight (kg) |
2200 |
Dimension (mm) |
2800*1500*1850 |
Specifications of Other DTH Drill Rigs:
Model |
Hole Diameter |
Hole Depth |
Working Pressure |
Air Consumption |
Remark |
(mm) |
(m) |
(MPa) |
(m3/min) |
HQZ70 |
60--80 |
≥15 |
0.5-0.7 |
≥3.5 |
3kw |
HQZ90 |
80--100 |
≥20 |
0.5-0.7 |
≥6 |
4kw |
HQZ100 |
80--100 |
≥20 |
0.5-0.7 |
≥6 |
4kw |
HQZ100B |
80--100 |
≥20 |
0.5-0.7 |
≥6 |
4kw |
HQZ120B |
80-100 |
≥20 |
0.5-0.7 |
≥6 |
5.5kw |
HQZ145B |
90-130 |
≥50 |
0.7-1.4 |
≥12 |
7.5kw |
HQZ155B |
90-130 |
≥50 |
0.7-1.4 |
≥12 |
7.5kw |
HQZ165 |
90-150 |
≥50 |
0.7-1.4 |
≥15 |
11kw |
