DTH Hammer Drill Rig / Portable Rock Drilling Machine

DTH Hammer Drill Rig / Portable Rock Drilling Machine
Price: US $ 2000/Set
Min Order: 1/Set
Pay Type: T/T,Western Union
Prod Model: HW
Dia Of The Hole: 80-100mm
Depth Of The Hole: ≥20m
Rotation Speed: 0-84rmp
Working Pressure: 0.5-0.7MPa
Specification Of Drill Rod: 60*1000mm
Air Consumption: ≥7m3/Min
Lifting Power: 9600n
Weight: 500kg
Motor Power: 4kw
Capacity (M³/Min): 9

Product Description

 DTH Deep Rock Drill Rig
Product Introduction
 Features:
1.High drilling efficiency, power provided by energy saving motor
2.High efficiency, large rotary torque
3.Simple structure and easy to move
4.Adopt consummate design, long service life
5.Easy to operating
Introductions:

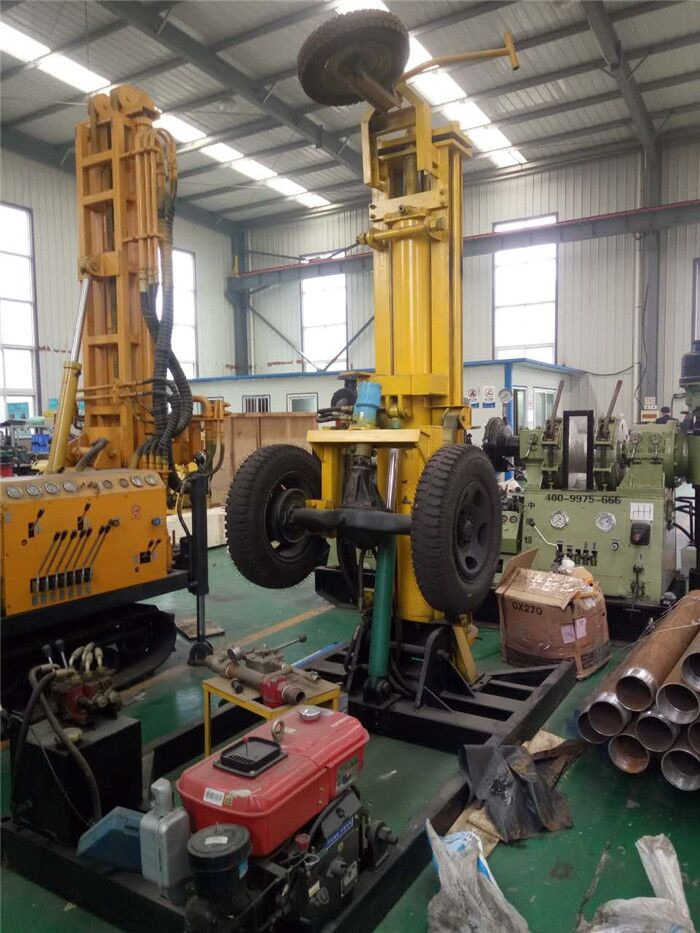

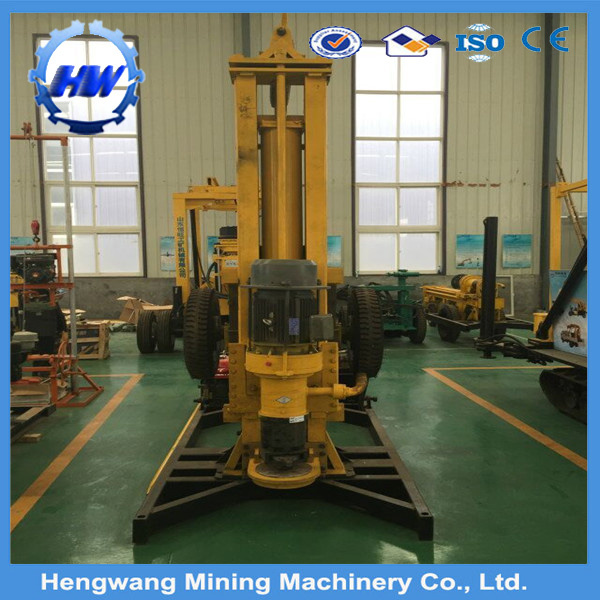

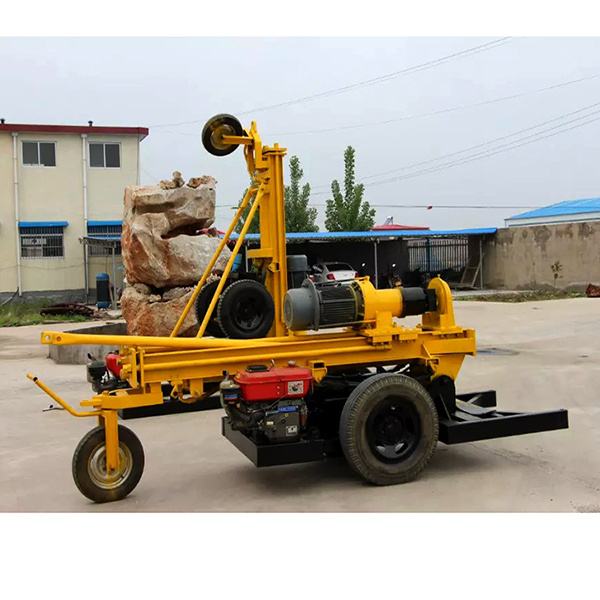

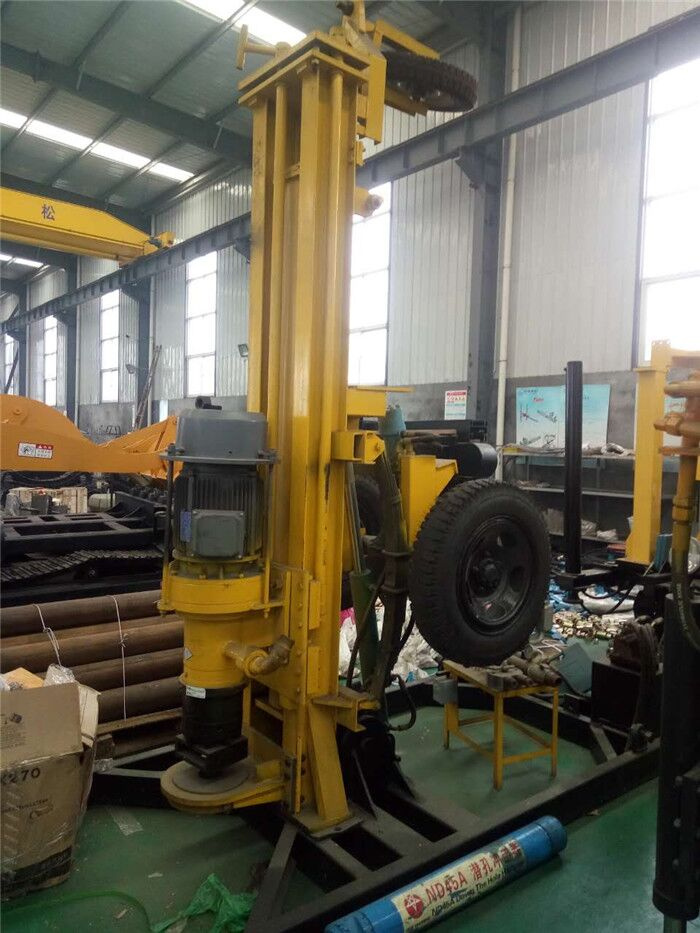

HQZ100B core drill rig is a high adaptability pneumatic DTH drill rig, with the characteristic of simple structure, easy operation and energy saving.  It can also drill vertical and horizontal blast  holes   in the fields of mines,national   defence,  water conservation,  road building and
stonework.  It has low center of gravity and its detachability is good.
It is essential for open mining drilling equipment, especially for the other drill rigs that do not work in the uneven rugged terrain;  It is with the characteristic of compact structure,  easy operation,
fast cutting speed, high efficiency, good removable.




Technology Parameters
 Specification of HQZ100B Core Drill Rig:

Dia of The Hole

80-100mm

Depth of The Hole

≥20m

Rotation Speed

0-84rmp

Working Pressure

0.5-0.7Mpa

Specification of Drill Rod

60*1000mm

Air Consumption

≥7m3/min

Lifting Power

9600N

Weight

500KG

Motor Power

4KW

Matched Portable Diesel Piston Air Compressor:

Model

CVFY-9/7

Capacity (m³/min)

9

Working Pressure (Mpa)

7

Weight (kg)

2200

Dimension (mm)

2800*1500*1850

Specifications of Other DTH Drill Rigs:

 Model

Hole Diameter

Hole Depth

Working Pressure

Air Consumption

Remark

(mm)

(m)

(MPa)

(m3/min)

HQZ70

60--80

≥15

0.5-0.7

≥3.5

3kw

HQZ90

80--100

≥20

0.5-0.7

≥6

4kw

HQZ100

80--100

≥20

0.5-0.7

≥6

4kw

HQZ 100B

80--100

≥20

0.5-0.7

≥6

4kw

HQZ120B

80-100

≥20

0.5-0.7

≥6

5.5kw

HQZ145B

90-130

≥50

0.7-1.4

≥12

7.5kw

HQZ155B

90-130

≥50

0.7-1.4

≥12

7.5kw

HQZ165

90-150

≥50

0.7-1.4

≥15

11kw
Jining Hengwang Mining Machinery Co., Ltd. is located in Jining, Shandong Province, China. Established in 2002, comprehensive enterprise, collection of marketing, scientific research, trade. Registered capital of 10.8 million, Existing staff 200 persons, including 3 engineering experts, senior software engineer 8 persons, network information technicians 28 persons, ecommerce division, more than 80 persons, the international trade commissioner, 18 persons, logistics division 9 persons, all kinds of technical personnel more than 50 persons.

Specializing in the Drilling equipment; Railway equipment; Road machinery; Electrical equipment; Pumps; Hydraulic tools; New energy etc.

Our products sell to Vietnam, Malaysia, South Korea and other southeast Asia, Africa and the Middle East, South America, North America, Europe etc, is popular among the masses of customers. Our Companies adhere business philosophy "to provide convenient service to customers, to create development opportunities for employees" and "continuous improvement, enjoy the" spirit of enterprise. Warmly welcome new and old friends from home and abroad came to our company, to make negotiation.

Our company long term commitment to science connect with market, keep up with Reform Development, take science to be commercialization, marketization and industrialization, work with Coal science and design institute, Metallurgy Design institute, Coal science and technology university and some other famous scientific research, develop and research some mine machines and devices, we not only sell at home but also abroad, Southeast Asia: Vietnam, Malaysia, Korea, Africa and Middle East, our products get great popular from clients. We rely on top quality,

Competitive price and good service to offer metallurgy, coal, hydroelectric, railway, highway, mine etc, we quickly Occupied the Market, Achieved remarkable results.

Insist on "offer excellent service for customers, create development chance for employees" as operation principle and take "keep forging ahead, enjoy great success" as enterprise spirit, we sincerely welcome friends from home and abroad to visit us for business, Let us create great undertaking and brilliant togerther!
