| Drilling Depth: |
130-200m |
| Open Hole Dia.: |
220-325mm |
| End Hole Dia.: |
75mm |
| Drill Rod Dia.: |
42-60mm |
| Drill Angle: |
90°-75° |
| Matching Power: |
13.2, 14.7 |
| Wright: |
600-970kg |
| Spindle Speed: |
142/285/570(R/Min) |
| Mud Pump Flow: |
95-145(L/Min) |
| Mud Pump Max.Pressure: |
1.2-2MPa |
Product Description

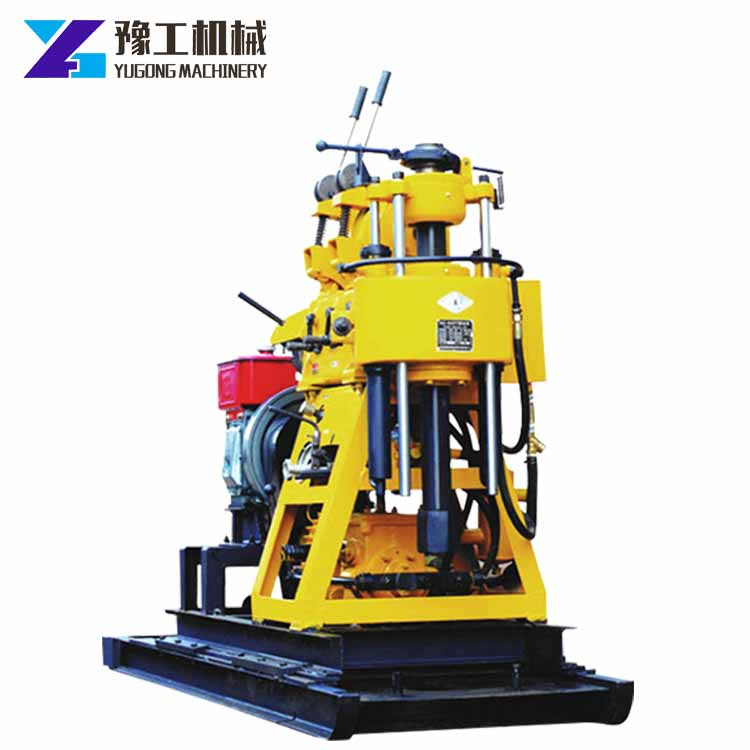

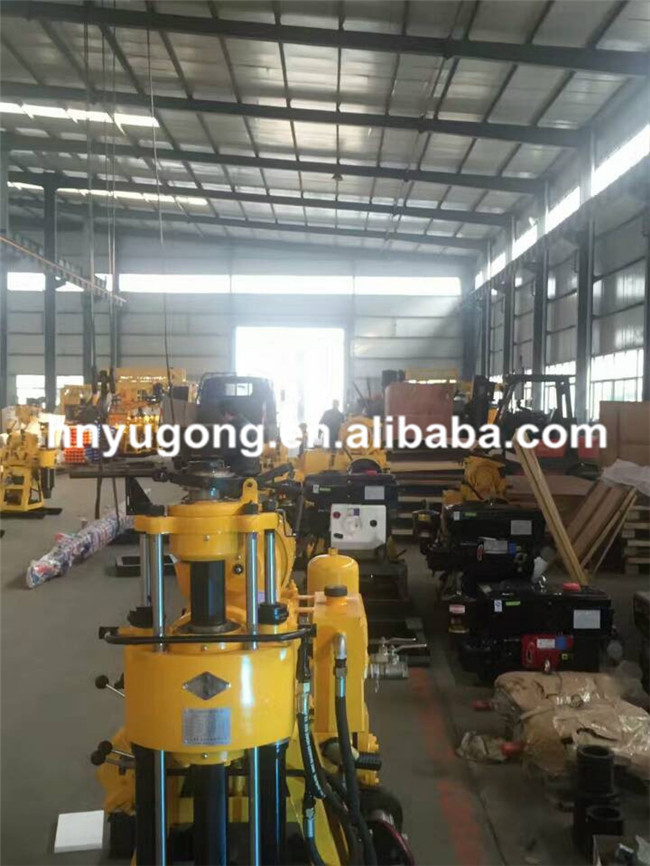

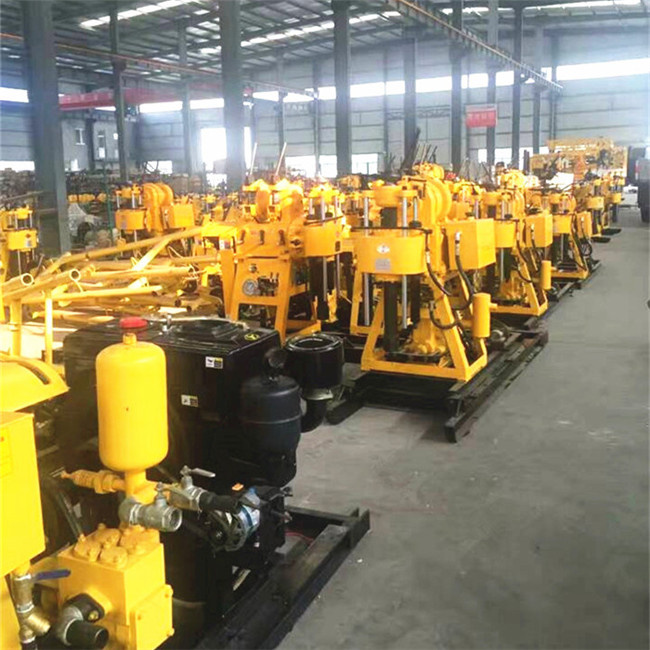

Description of drilling rig machineHZ series hydraulic core drilling rig is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earth temperature central air conditioner,etc.

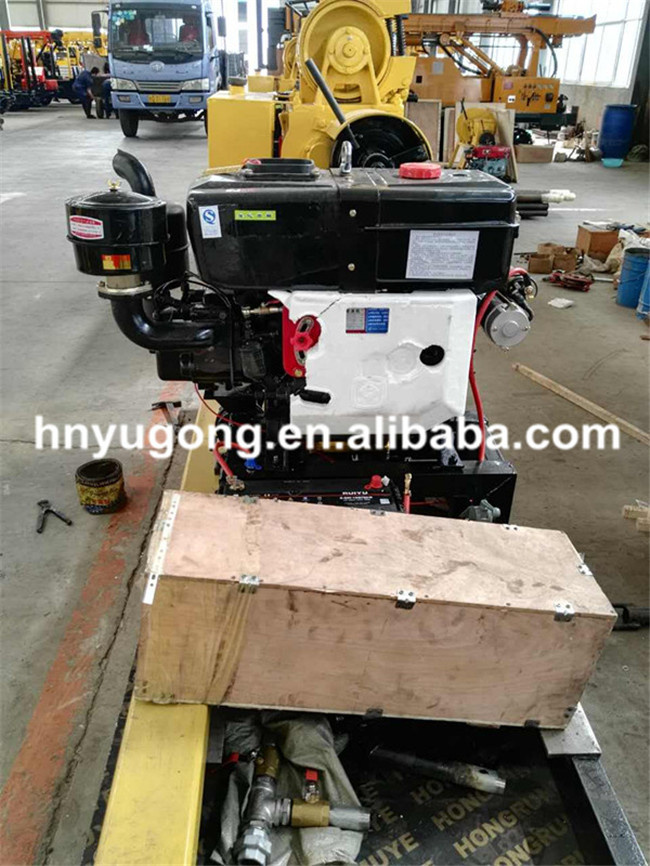

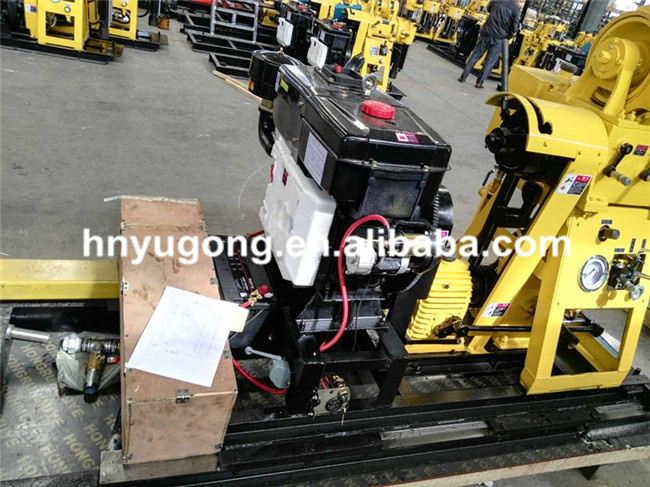

Feature of water well drilling rig- Engine:Feed by hydraulic cylinder,the drilling efficiency is higher and it can save labor.
- Drill rod:53x59 drilling rod adopted,high rigidity and strong delivery torque.
- Spindle:Vertical spindle are fixed by four groups of bearing to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.
- Mud pump:Equip mud pump with flow 160L/min,save cost and also make the structure compact.
- Concentrated handle, small footprint,light weight, strong decomposition, easy to move.
Technical parameter| The whole machine parameters |
| Model | HZ130Y/130YY | HZ180YG/180YYG | HZ200Y/200YY |
| Drill hole depth | 130m | 180m | 200m |
| Maximum opening diameter | Φ75-Φ220mm | Φ75-Φ220mm | Φ75-Φ325mm |
| Final hole diameter | Φ75mm | Φ75mm | Φ75mm |
| Take the initiative to drill pipe | 53/59*4200mm | 53/59*4200mm | 53/59*4200mm |
| Drill pipe diameter | Φ42-60mm | Φ42-60mm | Φ42-60mm |
| Borehole inclination | 90°- 75° | 90°- 75° | 90°- 75° |
| Power(diesel engine) | 13.2/2200kw/r/min | 13.2/2200kw/r/min | 15/2200kw/r/min |
| Size | 2.4*0.8*1.4m | 2.4*0.8*1.3m | 2.7*0.9*1.5 |
| Vertical shaft |
| Vertical spindle speed | 142,285,570r/min | 130,480,730,1045r/min | 64,28,287,557r/min |
| Vertical stroke | 450mm | 450mm | 450mm |
| Hoist |
| Single rope lift | 2000 | 2100 | 2500 |
| Single rope winding speed | 0.41-1.64m/s | 0.35-2.23m/s | 0.12-0.95m/s |
| Drum diameter | Φ140mm | Φ140mm | Φ140mm |
| Diameter of wire rope | Φ9.3mm | Φ9.3mm | Φ13mm |
| Wire rope capacity | 27m | 27m | 35m |
| Rig |
| Rated load | 18t | 18t | 18t |
| Effective height | 6.5m | 6.5m | 6.5m |
| Tower leg specifications | Φ73mm | Φ73mm | Φ89mm |
| Mud pump |
| Model | BW95 | BW95 | BW145 |
| Flow | 95L/min | 95L/min | 145L/min |
| Maximum pressure | 1.2Mpa | 1.2Mpa | 2Mpa |
| Reciprocating frequency | 93times/min | 93times/min | 93times/min |
| Suction pipe diameter | Φ51mm*4.5m | Φ51mm*4.5m | Φ51mm*4.5m |
