| Price: | US $ 500-2000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | VC12 |
|---|---|
| Frequency Response: | 50Hz~16kHz(+-3dB) 40Hz~18kHz(-10dB) |
| Nominal Impedance: | Hf/Mf/Lf:16ohm |
| Maximum Spl: | Hf132/138 dB Mf:130/136 Lf;127/133 dB |
| Driver Structure: | Coaxial |
| Power Rating(AES): | Hf/Mf/Lf:160W/350W/900W |
| Driver Number: | Lf: 2X12inch; Mf: 1X10inch; Hf: 2X3inch |
| Sensitivity(@1W/1m): | Hf:110dB Spl Mf:105 dB Spl Lf:98 dB Spl |
| Weight: | 58kg |
| Speaker Cables: | 1-2+...Lf, 3-4+...Mf, 5-6+...Hf |
| Connectors: | 2xwp7 Connectors |
| Noise: | <95dB |
| Hi-Fi: | Hi-Fi |
| Operation Mode: | Wire / Remote Control |
| Speaker System: | Optional Combination |
| Speaker Material: | Wood |
| Application: | Club/Bar/Live Music Venus/Concert/Music Hall |
| Certification: | RoHS |
| THD: | <0.005% |
| Monitor: | None |

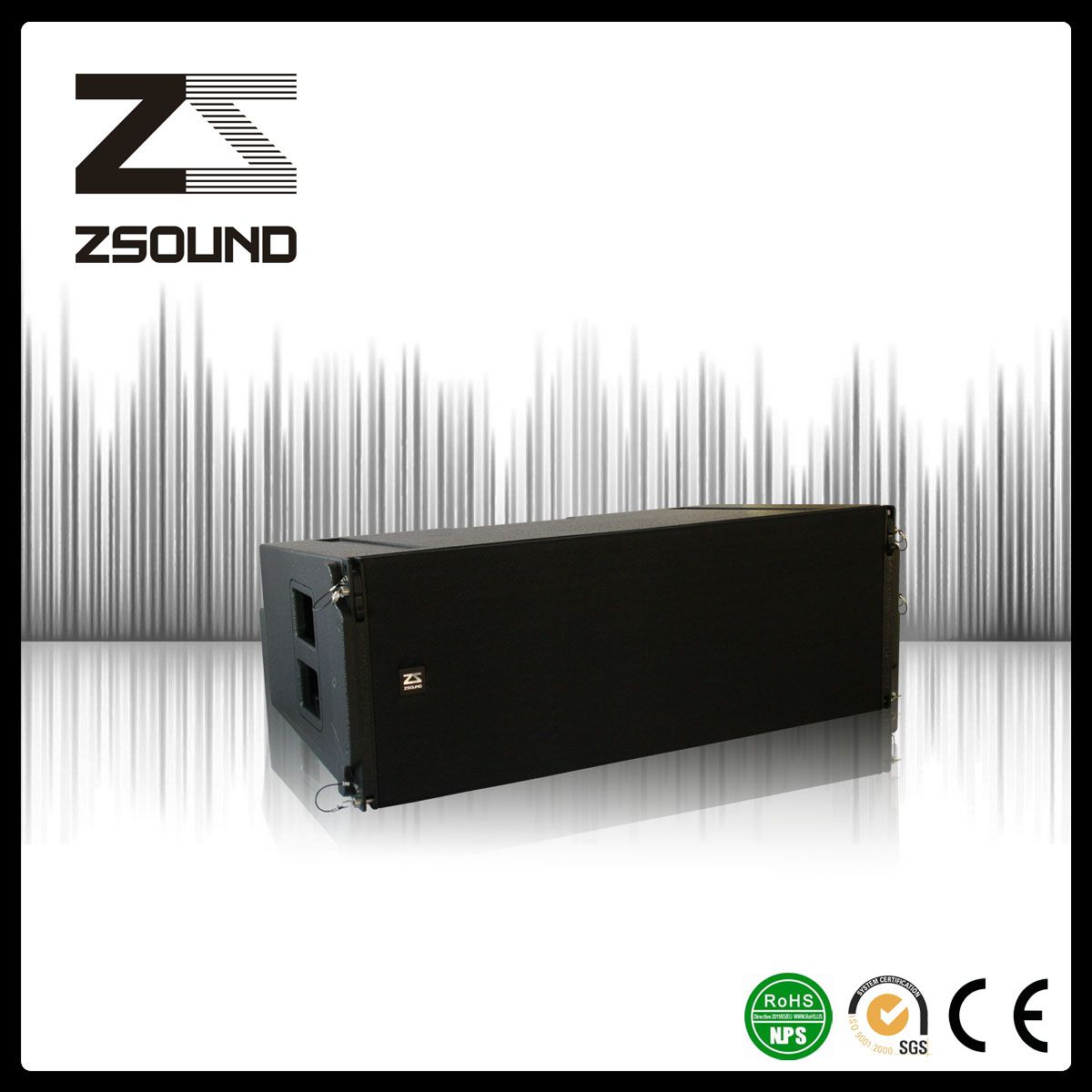

VC12 line array is a large-scale 3-way, tri-amped system, which provides frequency ranges from 50Hz to 16KHz.
The system consists of 2x65 mm(voice coil)neodymium compression drivers, one 10 inch neodymium MF driver and 2x12 inch Ferrite with rubber edge woofer to achieve a great dynamic headroom.
The Mid and Low frequency adopts a couple of 12 inch cone LF driver. Each unit's power handling is 900Wand two units connect in series.
One 10 inch MF driver with high sensitivity is mounted at the rear of the HF driver to make up a coaxial configuration.
A MF phase plug is mounted on the surface of the MF driver, which has excellently improved the directivity and increased sensitivity.
The HF section utilizes 2x65mm(voice coil) neodymium complex film drivers coupled with a 90 degree exponential constant
horn via plane-wave transducer to make an coherent wave front.
VC12 is a trapezoidal speaker with the seamless gap between each cabinet. The adjustable angle of the cabinet is 0-7.5 degree, 1 degree per step,
the rigging hardwares are made of high strength steel. It is safe enough to hang 16 enclosures together, as the safety factor will reach up to 7:1.
The enclosure is constructed by multi-plywood, with panel in size 18mm. It is finished by black textured water paint with high resistance.
Two recessed handle cups are mounted on both sides of the enclosure for easy lifting and carrying.
The rear panel connector plate carries 2 WP7 waterproof connectors for loop in and loop out connections. Besides, the speaker is covered with Black epoxy mesh grill with acoustically reticulated cloth to protect the drivers.
Features:
Large-scale,tri-amp,three-way line array system;
MF&HF parts is coaxial structure to optimise acoustic image;
Neodymium HF&MF driver and low frequency elasticity;
Presettable angles.
Specification:
| TECHNICAL SPECIFICATION | |
| Frequency Response: | 50Hz-16KHz(±3dB) 40Hz-18KHz(-10dB) |
| Nominal Coverage: | 90°(H)7.5°(V) |
| Sensitivity (@1w/1m): | HF:110dB SPL MF:105 dB SPL LF:98 dB SPL |
| Power Rating (AES): | HF/MF/LF:160W/350W/900W |
| Nominal Impedance: | HF/MF/LF:16Ohm |
| Maximum SPL: | HF132/138 dB MF:130/136 LF;127/133 dB |
| Drivers: | LF 2*12"(75mm Voice coil) woofer; MF 1*10"(65mm voice coil) mid-range; HF 2*65mm neodymium HF compression driver |
| PHYSICAL DATA | |
| Dimension (H*W*D): | 365*1030*550mm |
| Weights: | 58kg |
| Connectors: | 2*WP7 connectors |
| Speaker Cables: | 1-2+...LF, 3-4+...MF, 5-6+...HF |
| Materials: | 18mm multi-plywood |
| Finish: | Black water paint |
| Grille: | Black epoxy mesh grille with acoustically reticulated cloth |
| Rigging: | 0,1 ,2,3,4,5,7.5 degree adjustable |
Applications:
Zsound Advantage:
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001.
4) Monthly Production Capacity: 2000pcs.
5) Fast delivery: Get your order when you need it.

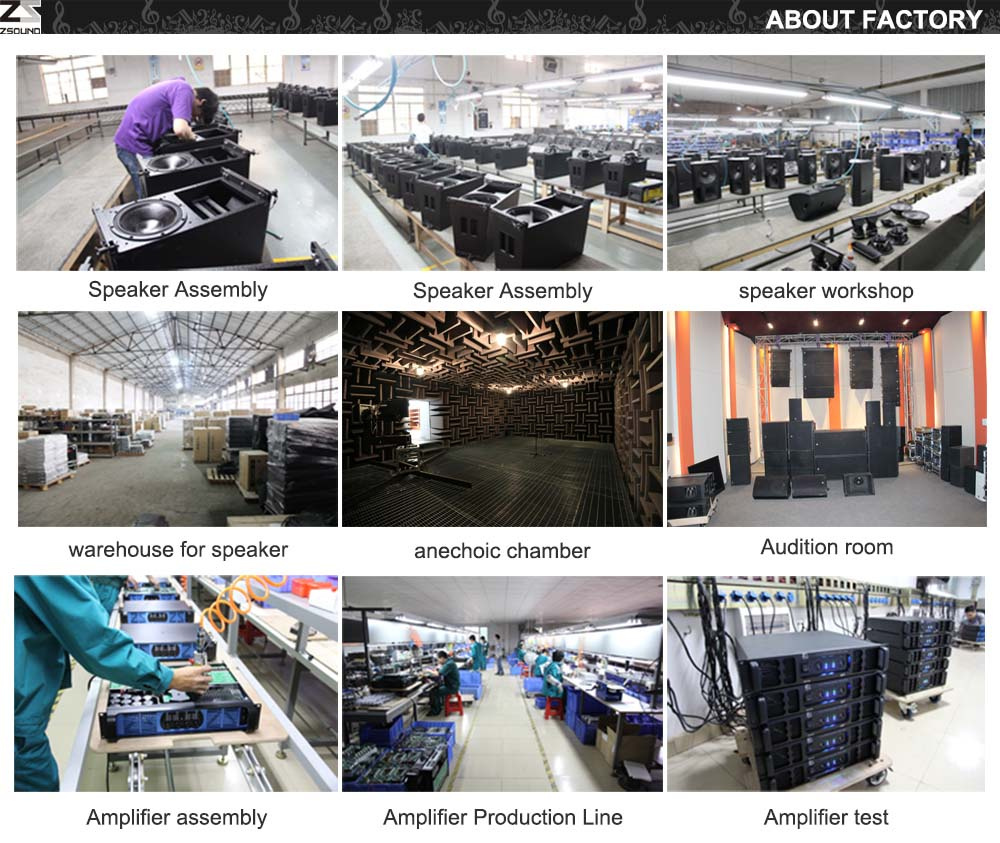

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers.
7) Convenient Transportation: 1 hour to Guangzhou Baiyun International Airport.
8) 24 hours on line service.
FAQ:
Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock. 10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accepted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information. At the same time, please rest assured that your information is also safe here.
