| Price: | US $ 500-2000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | LA110P |
|---|---|
| Certificate: | Ce, RoHS SGS |
| Maximum Spl: | 127dB Spl 133dB Spl (Peak) |
| Driver Number: | 2X15 Inch(75mm Voice Coil) Woofer |
| Power Rating(AES): | 1000W |
| Frequency Response: | 38Hz-100Hz(±3dB) 30Hz-150Hz(-10dB) |
| Inpute Impedance: | 20 Kohm Balanced/10 Kohm Balanced |
| Active Gain: | 20dB(CH1), 32dB(CH2,3) |
| Output Circuit Style: | D Class |
| Amplifier Module: | Three Channel Amplifier Module (Max4700W) |
| Weight: | 65kg |
| Noise: | <95dB |
| Hi-Fi: | Hi-Fi |
| Operation Mode: | Wire / Remote Control |
| Speaker System: | Optional Combination |
| Speaker Material: | Wood |
| Application: | Club/Bar/Live Music Venus/Concert/Music Hall |
| Certification: | SGS |
| THD: | 0.005%-0.01% |
| Monitor: | None |

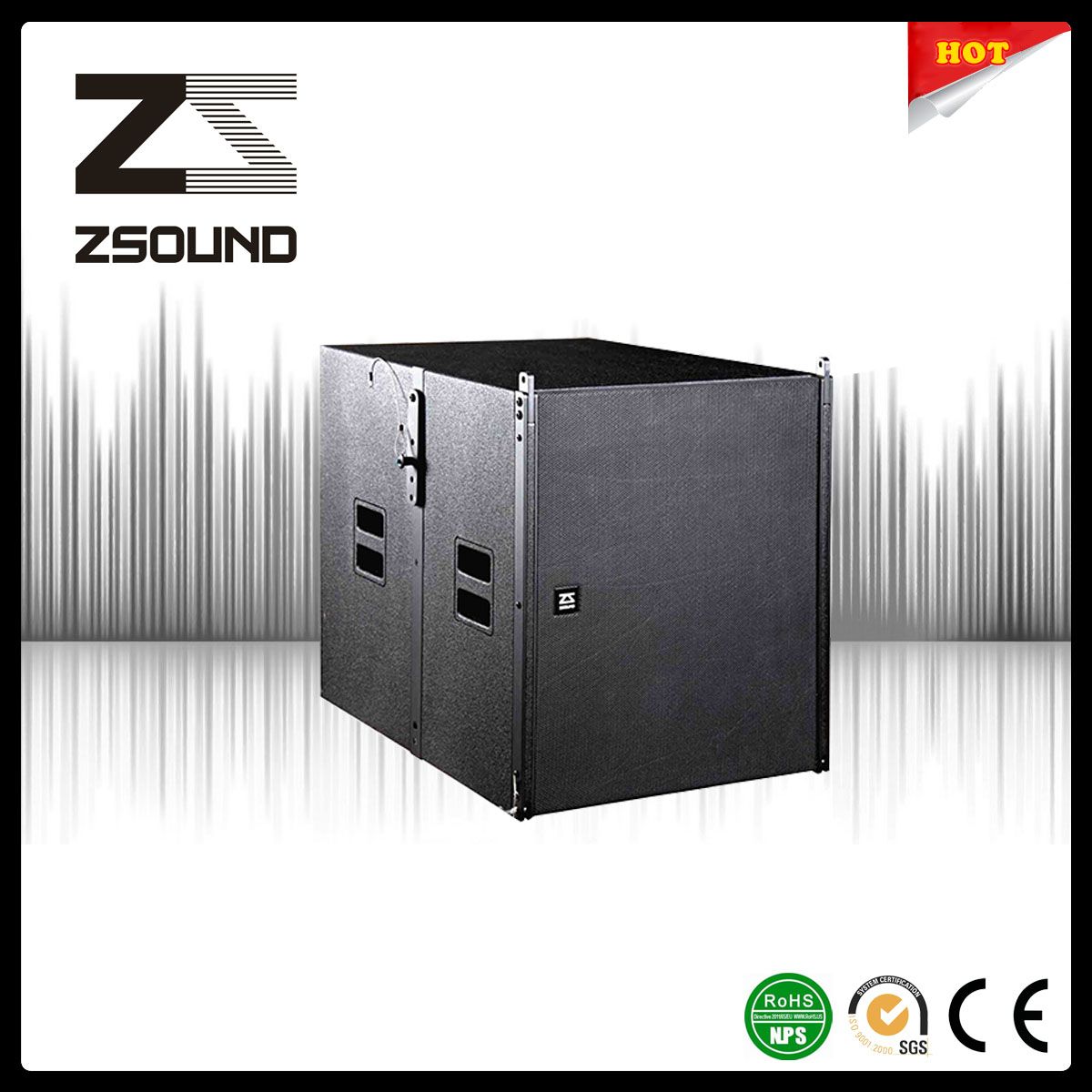

LA110P is one active self-power reflex subwoofer that consists of dual 15″cone drivers, it is suitable for varies of applications, such as all kinds of touring sound and music reinforcement performances, as well as large numbers of fixed installations architecture. It can be used in conjunction with other full range loudspeakers to extend outstanding excursion in LF. (We highly recommend the user can match LA110P with LA110 compact line array or LA110S passive subwoofer to build the audio reinforcement system.)
LA110P subwoofers utilise the brand-new woofers to avoid airflow noises which may occur in ordinary ones when work with ultra-high power, and it's a vented, small volume enclosure designed with a prepositive horn, which reduces the group delay of the LF and ensure the speed impact in the LF. The big Volume inverted tube increases the output of the subwoofer, and decrease the non-linear distortion, so as to maintain the transient response, speed, and thickness in LF.
LA110P consists of 2x15inch LF cone drivers in the vented box. The enclosure is constructed by plywood, with panel in size 25mm, and other side parts in 18mm plywood. It is finished in gray textured waterproof paint. 4 recessed handle cups are mounted on both sides of the enclosure for easy lifting and carrying. It can be used with LA110 directly by the configured rigging hardwares on both sides of the cabinet. A rear panel connector plate carries 2 Neutrik Speakon NL4MP connectors for loop in and loop out connections to additional enclosure.
Features:
Dual 15 inch rubber edge neodymium self power subwoofer;
Built-in 700W+2x200W powered amplifier module;
Drive 1-4 pieces LA110 Line Array Speaker;
Its size & appearance is exactly the same rigging, can stack and hanging.
Specification:
| TECHNICAL SPECIFICATION | |
| Frequency Response: (include powered module) | 38Hz-100Hz(±3dB) 30Hz-150Hz(-10dB) |
| Normal Power (AES): | 1000W |
| Drivers: | 2*15"(75mm voice coil) neodymium woofer |
| Maximum SPL: | 127dB SPL 133dB SPL (peak) |
| Voltage Requirement: | 200~240v, 50~60Hz |
| Amplifier Module: | Three channel amplifier module (MAX4700w) |
| Total Harmonic Distortion: (1KHz, full frequency 4Ohm) | ≤1% |
| Signal Noise Ratio: | 102.5dB(CH1), 103dB(CH2,3) |
| Active Gain(1kHz 8Ohm): | 20dB(CH1), 32dB(CH2,3) |
| Connector: | Power Supply, XLR Male &Female |
| Input Impedance: | 20KOhm balanced/10KOhm balanced |
| Output Connector(full range): | NL4MP Neutrik connector (1+/1- LF, 2+2-HF) |
| Output Circuit Style: | D class |
| Cooling System: | Forced Cooing fan |
| PHYSICAL DATA | |
| Dimension (H*W*D): | 680*580*796mm |
| Weights: | 65kg |
| Connectors Plug: | XLR+POWERCON+SPEAKON |
| Materials of Enclosure: | 15/18/24 mm birch multi-plywood |
| Finish: | Black water paint |
| Grille: | Black epoxy mesh grille with acoustically reticulated cloth |
| Rigging Hardware: | Hanging pendant+top support |
Applications:
Zsound Advantage:
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001.
4) Monthly Production Capacity: 2000pcs.
5) Fast delivery: Get your order when you need it.

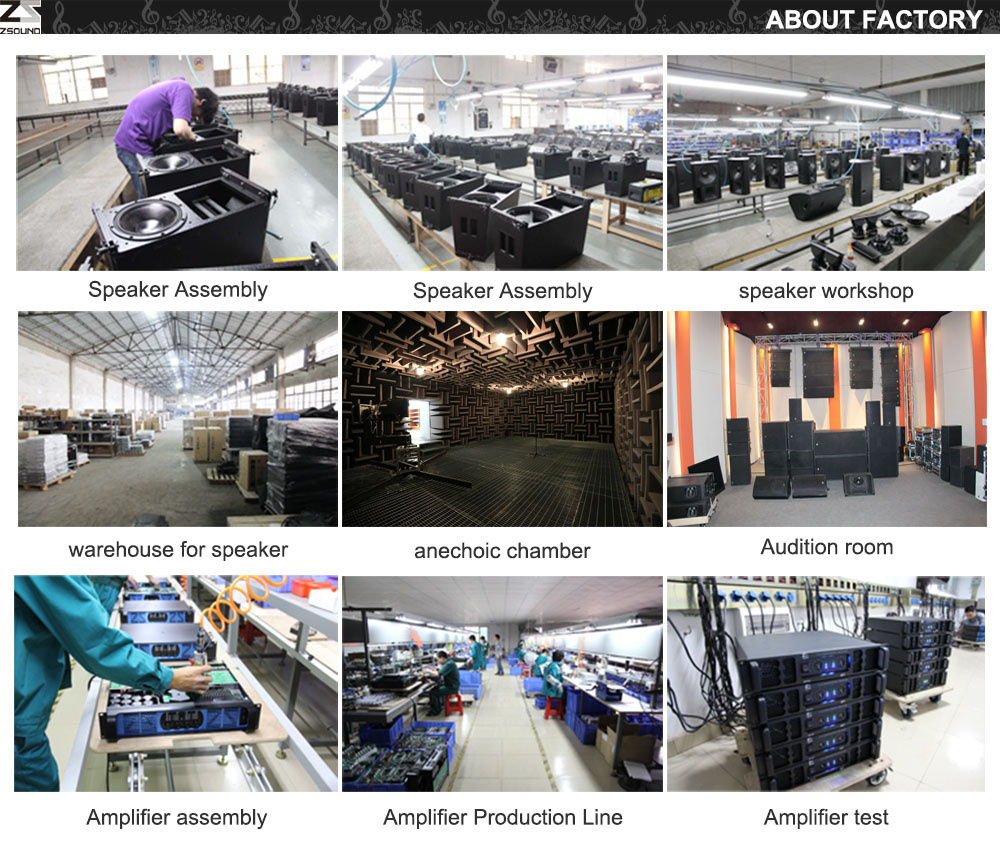

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers.
7) Convenient Transportation: 1 hour to Guangzhou Baiyun International Airport.
8) 24 hours on line service.
FAQ:
Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock. 10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accepted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information. At the same time, please rest assured that your information is also safe here.
