Dual 15 Inch Stadium Line Array Subwoofer Speaker

Name: Dual 15 Inch Stadium Line Array Subwoofer Speaker
Brand: tool-buy.com
SKU: 819696395
Availability: InStock
Rating: 4.4 (60 reviews)

Price:	US $ 500-2000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Guangzhou Zsound Proaudio Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	VCS
Nominal Impedance:	Hf/Mf/Lf: 16/16/16ohm
Power Rating(AES):	Hf/Mf/Lf: 160W/350W/900W
Sensitivity(@1W/1m):	Hf:113dB Spl Mf:105 dB Spl Lf:100 dB Spl
Speaker Cables:	1-2+...Lf, 3-4+...Mf, 5-6+...Hf
Rigging:	0~7.5 Degree Adjustable
Frequency Response:	50Hz~16kHz(+-3dB) 40Hz~18kHz(-10dB)
Maximum Spl:	Hf135/141 dB Mf:130/136 Lf;129/135 dB
Driver Number:	Lf: 2X12inch; Mf: 1X10inch; Hf: 2X3inch Weight: 60
Materials:	18mm, 24mm Birch Plywood
Driver:	2X15 Rubber Edge Subwofer
Noise:	<95dB
Hi-Fi:	Hi-Fi
Operation Mode:	Wire / Remote Control
Speaker System:	Optional Combination
Speaker Material:	Wood
Application:	Club/Bar/Live Music Venus/Concert/Music Hall
Certification:	RoHS
THD:	<0.005%
Monitor:	None

Product Description

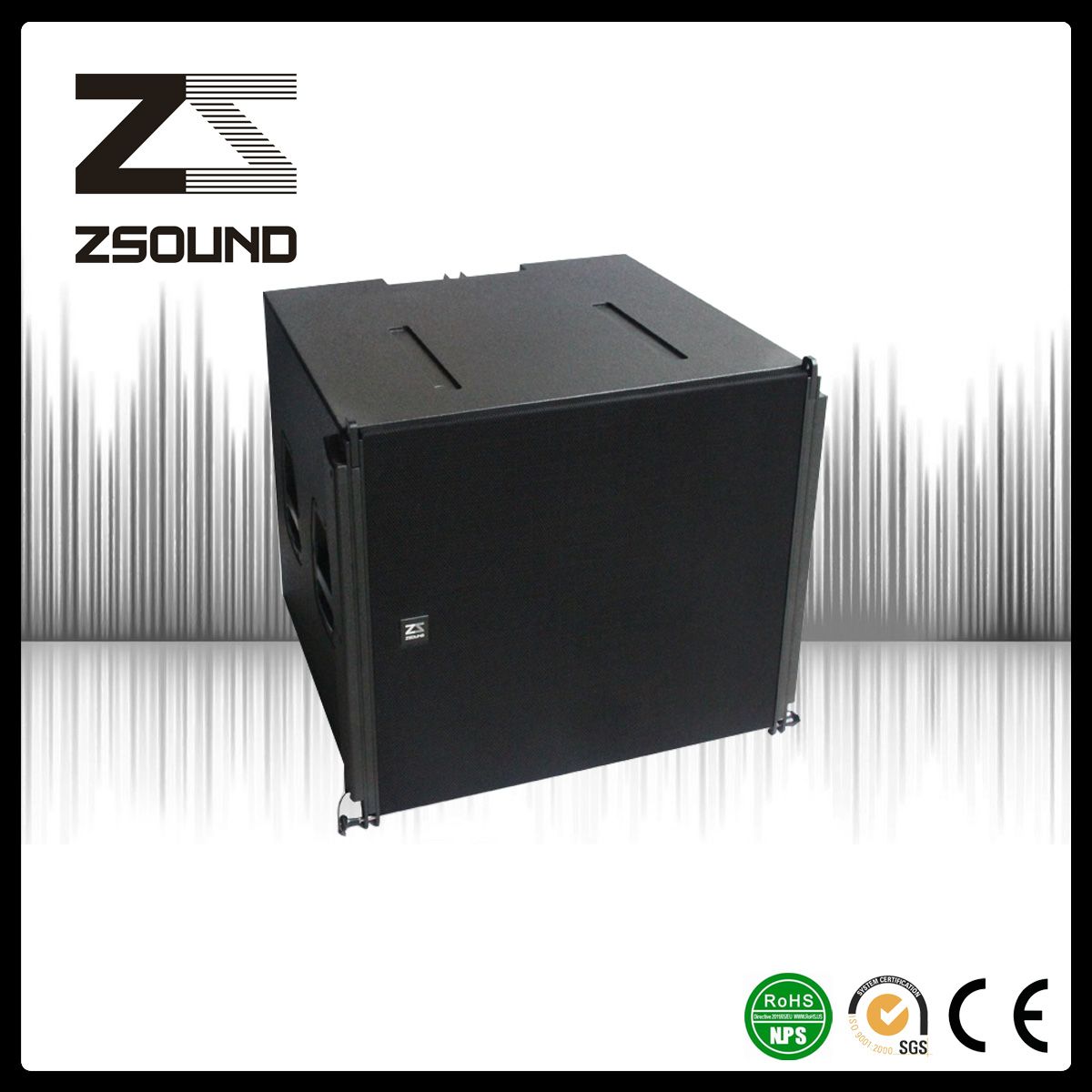

Line Array Sample Line Array Test Subwoofer VCS,Used with VCM

VCS subwoofer is a double 15 inch vented stereo, applied for various flow of language and music sound boost applications, also can be used in all kinds of fixed installations. And VCM line array full frequency match box can be extended low frequency response of the system.

VCS low frequency sound using the new bass unit, without any airflow noises while working in ultra-high power, and use small volume, vented, horn preposition design, Small volume greatly reduces the group delay of low frequency band, make sense of speed of the low frequency is able to guarantee; Low-frequency unit prepositive horn structure to reinforce low-frequency strength greatly : And large areas of inverting tube is increased the ultra-low frequency output, and reduce the frequency of nonlinear distortion, so that the speed of the low frequency, strength and thickness can have it all.

VCS is consist of two 15 "of low-frequency paper cone and inverter cabinet, on both sides of the inverter hole to optimize structure of low frequency response, and strengthen the body.
and constructed by 18mm birch multi-plywood, the surface is finished with black textured water paint.VCS has 4 hand cups on the sides, make it convenient to handle. Riggings on both sides can be connected to the VCM directly. After wiring board have 2 loop quad WP4 socket convenient to connect, and the speaker is covered with hexagon grill, with black sponge to protect the drivers.

Features:

Soft and Low frequency elastic;
75mm voice coil long throw high power LF driver;
Small volume, vented, horn preposition design.

Specification:

TECHNICAL SPECIFICATION
Frequency Response:	38Hz-200Hz(±4dB) 25Hz-320Hz(-10dB)
Nominal Coverage:	Omnidirectional
Sensitivity (@1w/1m):	102dB SPL (40-200H) SPL
Power Rating (AES):	1200W
Nominal Impedance:	8Ohm
Maximum SPL:	133dB(continuous) 139dB(peak)
Drivers Number:	2*15"(75mm voice coil)woofer

PHYSICAL DATA
Dimension (HWD):	605700700mm
Weights:	65kg
Connectors:	2*NL4 connectors
Speaker Cables:	1-2+
Materials:	18mm birch multi-plywood splints
Finish:	Black water environmental elastically paint
Grille:	Black epoxy mesh grille with acoustically reticulated cloth
Rigging:	0 degree adjustable

Applications:

Touring performance/Live Show;
Theater/Cinema;
Stadium/gymnasium/sport facilities;
Auditorium/Church
Club/Bar/Live Music Venus;
Concert/Music Hall;
Airport/Square;
Fixed Installation Architecture.

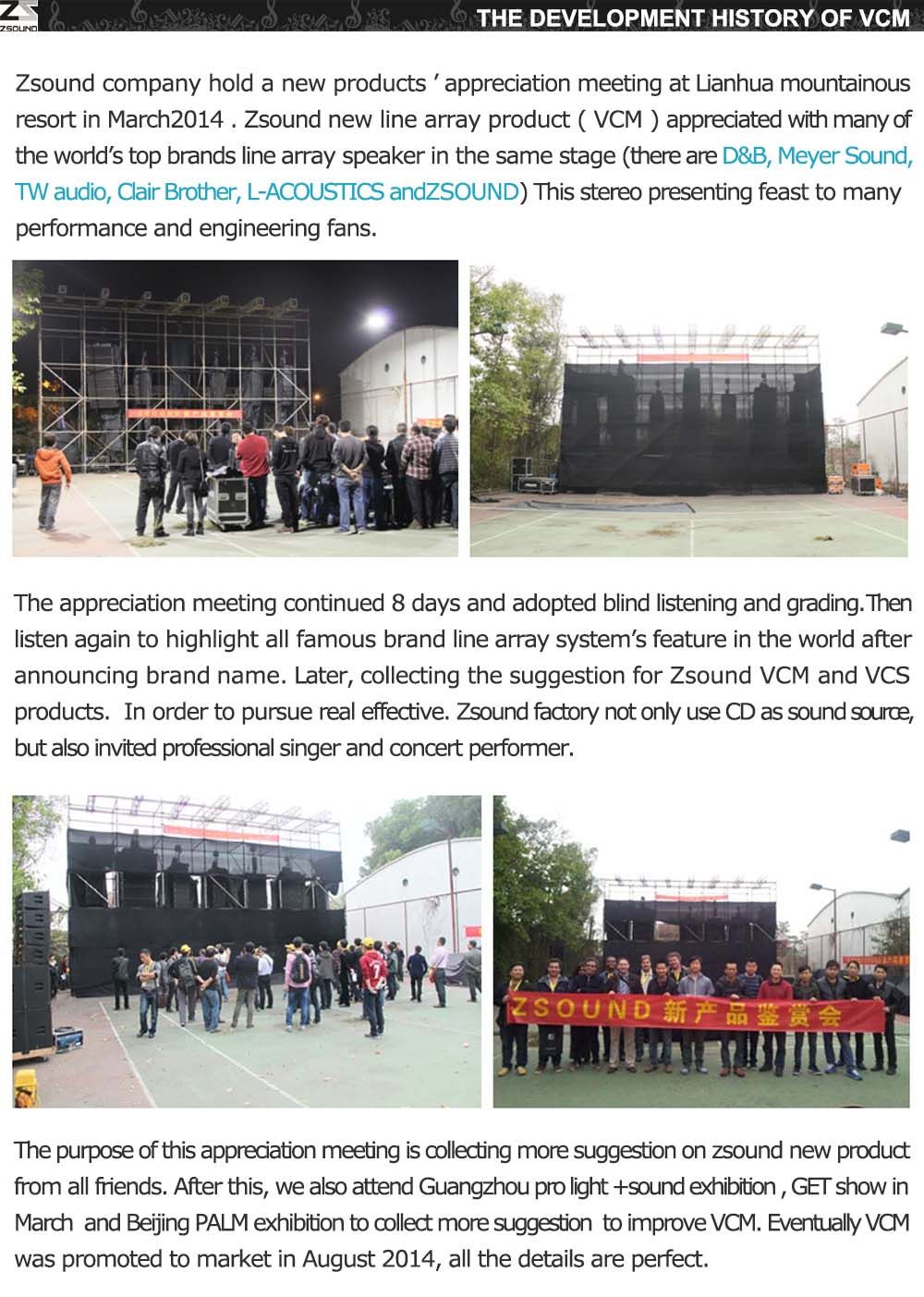

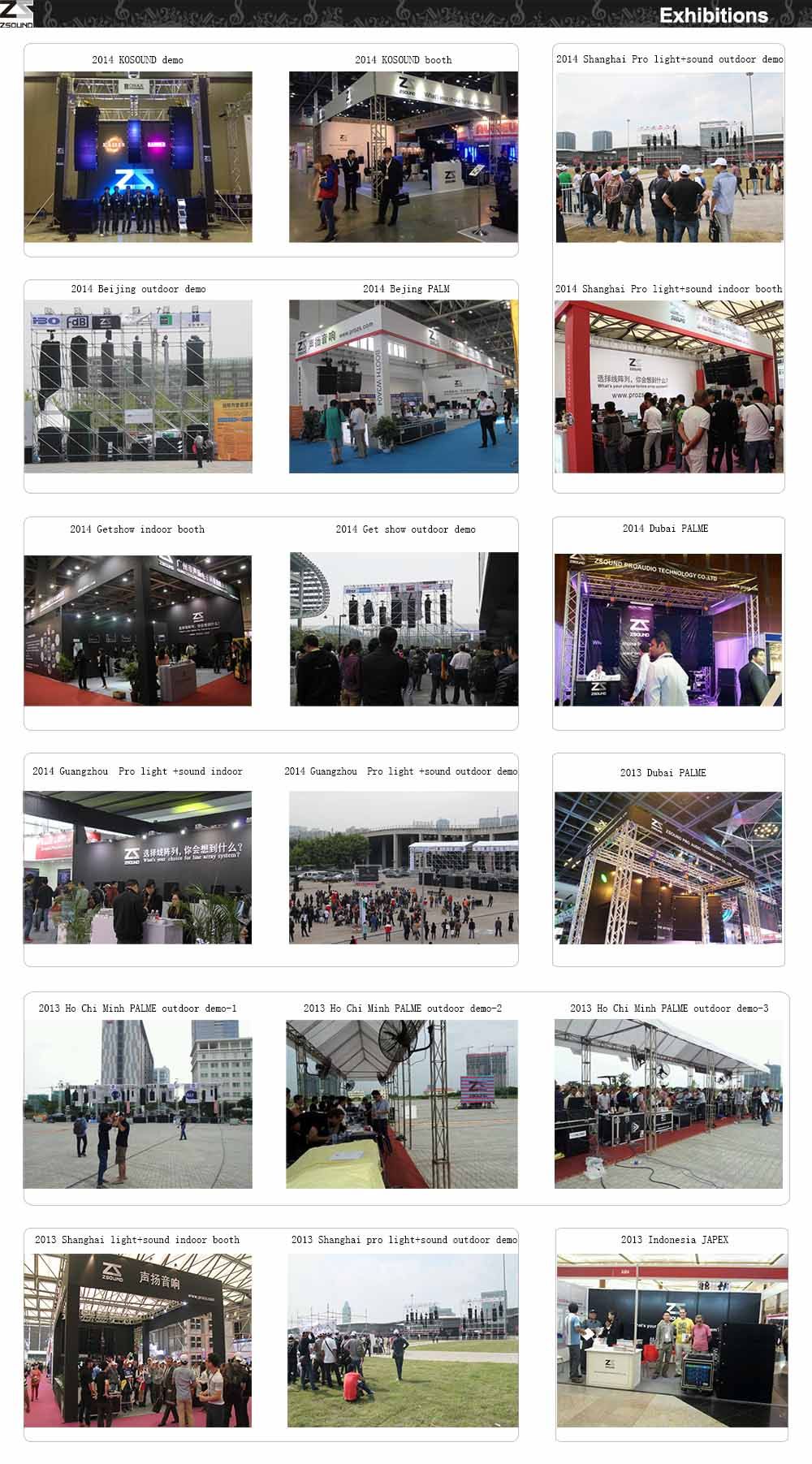

Every year, Zsound took part in the Pro Audio Exhibition around the world almost 10 times.

ZSOUND Pro Audio Technology co., Ltd is a company specializes in research, development, production and trade of ZSOUND pro audio.
The ZSOUND was derived form a speaker lab found by 4 speaker enthusiasts, they were form the same college and researched the brand new pro audio system together. From the driver of speaker, they selected form a large number of drivers to find out the excellent on. In the case of no suitable driver, they joint research with the speaker driver manufacturer to research the new driver for the high-quality loudspeaker box. The experience of many years of system debugging and the deep understanding of Pro audio system of the 4 people, had guided the speaker's development direction.

Pro audio system is not only a simple combination of speaker, amplifier and processor, the rational system design, installation, debugging and acoustical features are also the key to reply the true sound. ZSOUND provides the whole Pro audio system hardware, meanwhile it provides the system philosophy training. Philosophy system has already spread through the many times of Pro audio system technical training.

Today, ZSOUND have a lot of series of loudspeaker, including LA series line array, S Series sub-woofer, CM series coaxial monitor, M series monitor, CC series coaxial speaker, P series multi-function speaker, V series speaker, K series entertainment speaker. All ZSOUND products will have scientific design, accurate assembly and strict testing before being brought to marker, most of the product are applied to touring performance and fixed installation, such as stadium, theater, church,meeting room, music hall, bar, KTV, club, television stations and so on

Zsound Advantage:

1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001.
4) Monthly Production Capacity: 2000pcs.
5) Fast delivery: Get your order when you need it.

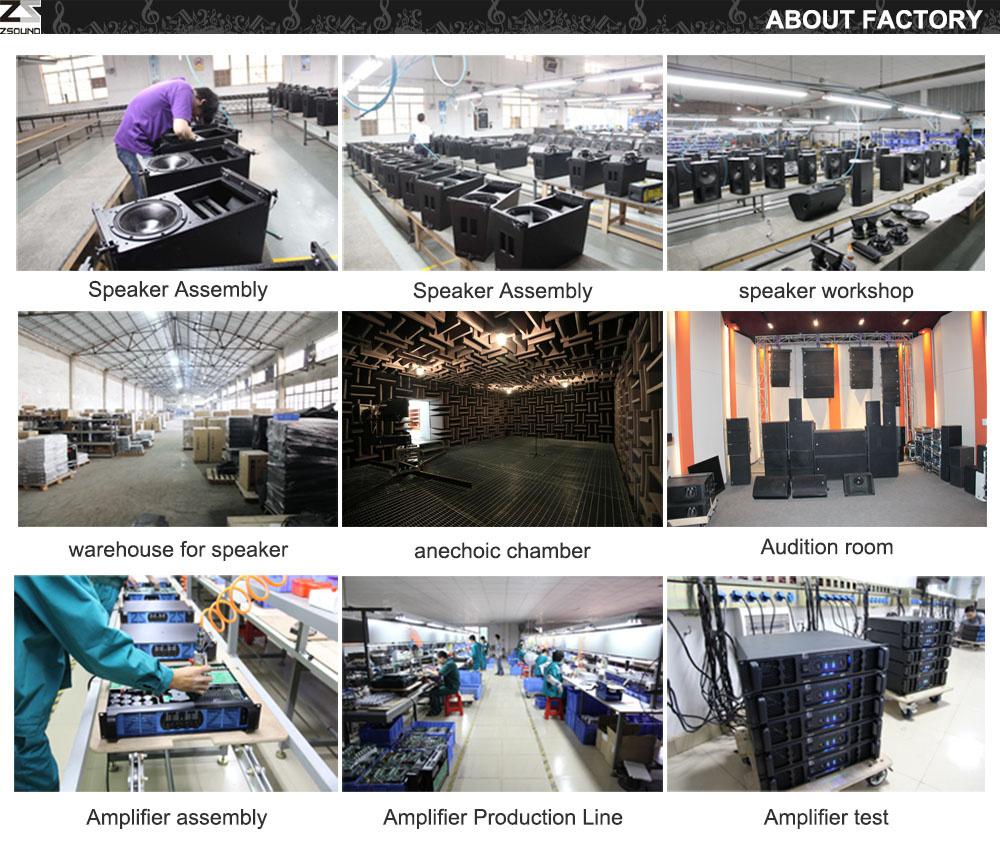

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers.
7) Convenient Transportation: 1 hour to Guangzhou Baiyun International Airport.
8) 24 hours on line service.

FAQ:

Q1: How long is the warranty for the speakers?
A1: 1year warranty.

Q2: How about the delivery time?
A2: 3-7days for stock. 10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.

Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accepted.

Q4: What's the MOQ?
A4: MOQ is 1pcs

Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .

Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information. At the same time, please rest assured that your information is also safe here.

Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.

Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.

During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.

What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance

In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.

After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.

Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
