Prod Model: |
S218B |
Certificate: |
Ce, RoHS |
Nominal Impedance: |
4 Ohm |
Maximum Spl: |
135dB(Continuous)141dB (Peak) |
Driver Number: |
2X18 Inch(100mm Voice Coil) Subwoofer |
Power Rating(AES): |
2400W |
Frequency Response: |
32Hz~180Hz(+-3dB) 30Hz~250Hz(-10dB) |
Nominal Coverage(-6dB): |
Omnidirectional |
Weight: |
76kg |
Connectors: |
2xnl4MP Neutrik Speakon Connectors |
Matrials: |
18mm,24mm Birch Plywood |
Noise: |
<95dB |
Hi-Fi: |
Hi-Fi |
Operation Mode: |
Wire / Remote Control |
Speaker System: |
Optional Combination |
Speaker Material: |
Wood |
Application: |
Club/Bar/Live Music Venus/Concert/Music Hall |
Certification: |
RoHS |
THD: |
<0.005% |
Monitor: |
None |
Product Description

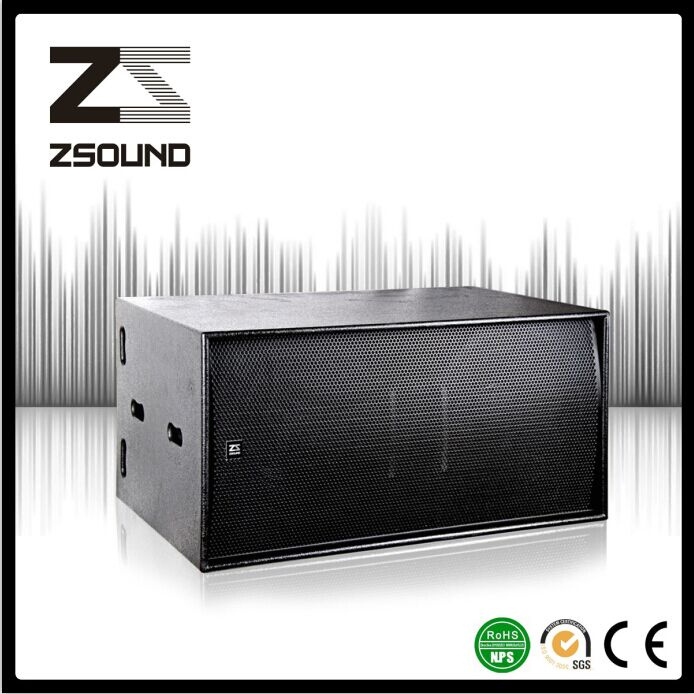

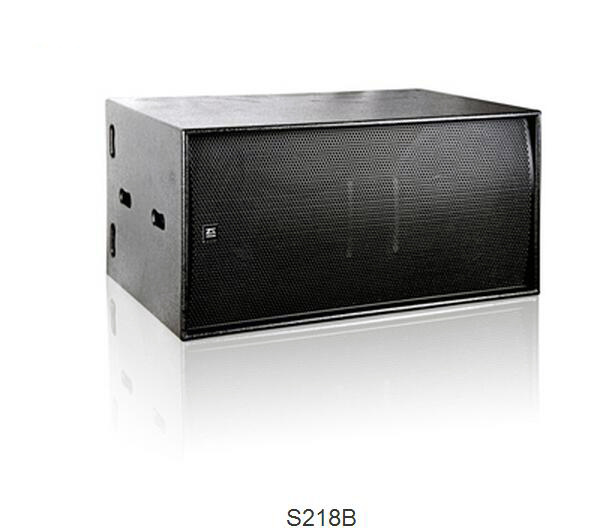

ZSound S218B Ultra LF Powerful SPL Sub Bass Woofer Sound Designer
Zsound has been paying great attention to create ultra-low frequency loudspeaker, for the LF is the essence of music, and subwoofer is the natural extension for the system. Designing procedures in Zsound include: large numbers of the linearity and non-linearity surveys, constant AES power measurement, detailed computer modeling, complete prototyping, and exhaustive comparative analysis. And then, the specifically designed OEM procedure can efficiently optimize the available resources of all bandwidth, as well as performance of the whole system. Therefore, S218B subwoofer is the optimal complement and extension for Zsound Loudspeakers.
S218B subwoofer can be used in conjunction with P15, P12, and P10, and it can make the sub-frequency extend to 32Hz.
S218B is a bass reflex regulating enclosure, comprising two 18" straight radiating LF drivers, which can supply excellent cone coverage and maintain thermo-compression even working under ultra high SPL. The design of the reflex enclosure provides more advantages for bass energy, which is more convenient for airflow circulating. Compared with previous products, configuration of S218B is more fashionable. Coupled with the latest riser vent, it has been effectively increased SPL output with 3 dB.
Features:
Vented subwoofer;
15 inch direct-radiation driver;
Heat resisting 4 inch (100mm) voice coil;
Large-scale vented design to reduce airflow noise.
Specification:
TECHNICAL SPECIFICATION |

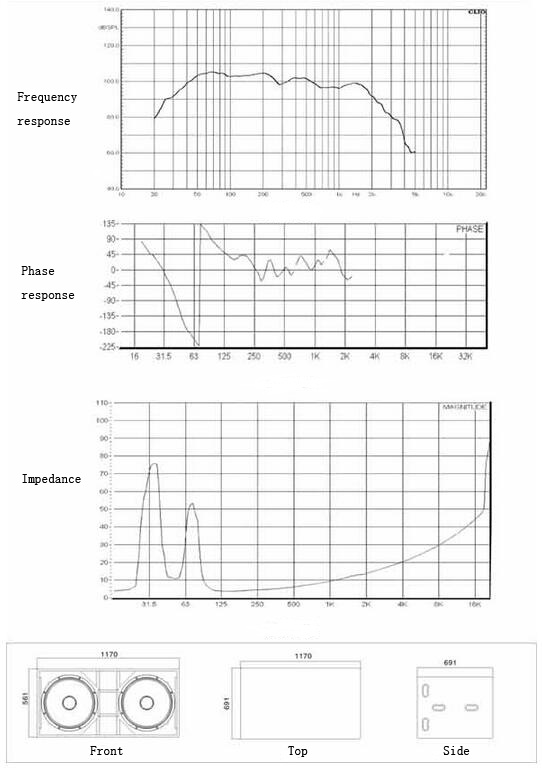

Frequency Response: | 32Hz-180Hz(+-3dB) 30Hz-250Hz(-10dB) |
Nominal Coverage(-6dB): | Omnidirectional |
Sensitivity (@1w/1m): | 102 dB SPL |
Power Rating (AES): | 2400W |
Nominal Impedance: | 4 Ohm |
Maximum SPL: | 135 dB (continuous) 141 dB(peak) |
Drivers: | 2*18 inch (100mm voice coil)woofer; |
|
PHYSICAL DATA |
Dimension (H*W*D): | 561(H)x1170(W)x691(D)mm |
Weights: | 76 kg |
Connectors: | 2*NL4MP Neutrik Speakon connectors |
Speaker Cables: | 1+1- |
Materials: | 18mm,24mm birch multi-plywood |
Finish: | Black water paint |
Grille: | Black epoxy mesh grille with acoustically reticulated foam |
Applications:
- Touring performance/Live Show;
- Theater/Cinema;
- Stadium/gymnasium/sport facilities;
- Auditorium/Church
- Club/Bar/pub/Disco/Live Music Venus;
- Concert/Music Hall;
- Airport/Square;
- Fixed Installation Architecture.
Every year, Zsound took part in the Pro Audio Exhibition around the world almost 10 times.
Zsound Advantage:
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001.
4) Monthly Production Capacity: 2000pcs.
5) Fast delivery: Get your order when you need it.

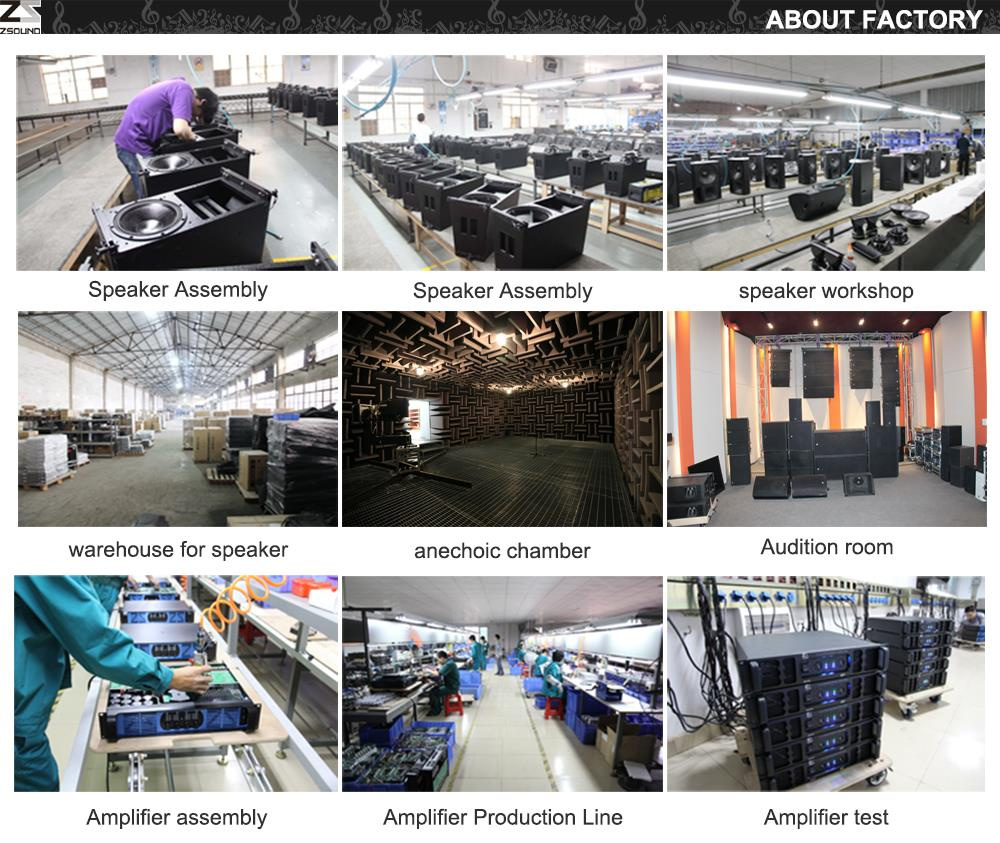

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers.
