| Prod Model: |
Q508 |
| System: |
2-Way Full Range |
| Characteristic: |
Passive Speaker |
| Installation: |
Linear Suspension |
| Point: |
Line Array |
| Crossover Mode: |
External Frequency Division |
| Usage: |
Multifunctional Room, Churches, School,etc |
| Customized: |
Accepted |
| Enclosure: |
Plywood |
| Business Type: |
Factory |
| Noise: |
≥105dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Wood |
| Application: |
School, Multifuction Hall, Churches |
| Certification: |
SGS,ISO9001(2008) |
| THD: |
<0.005% |
| Monitor: |
None |
Product Description

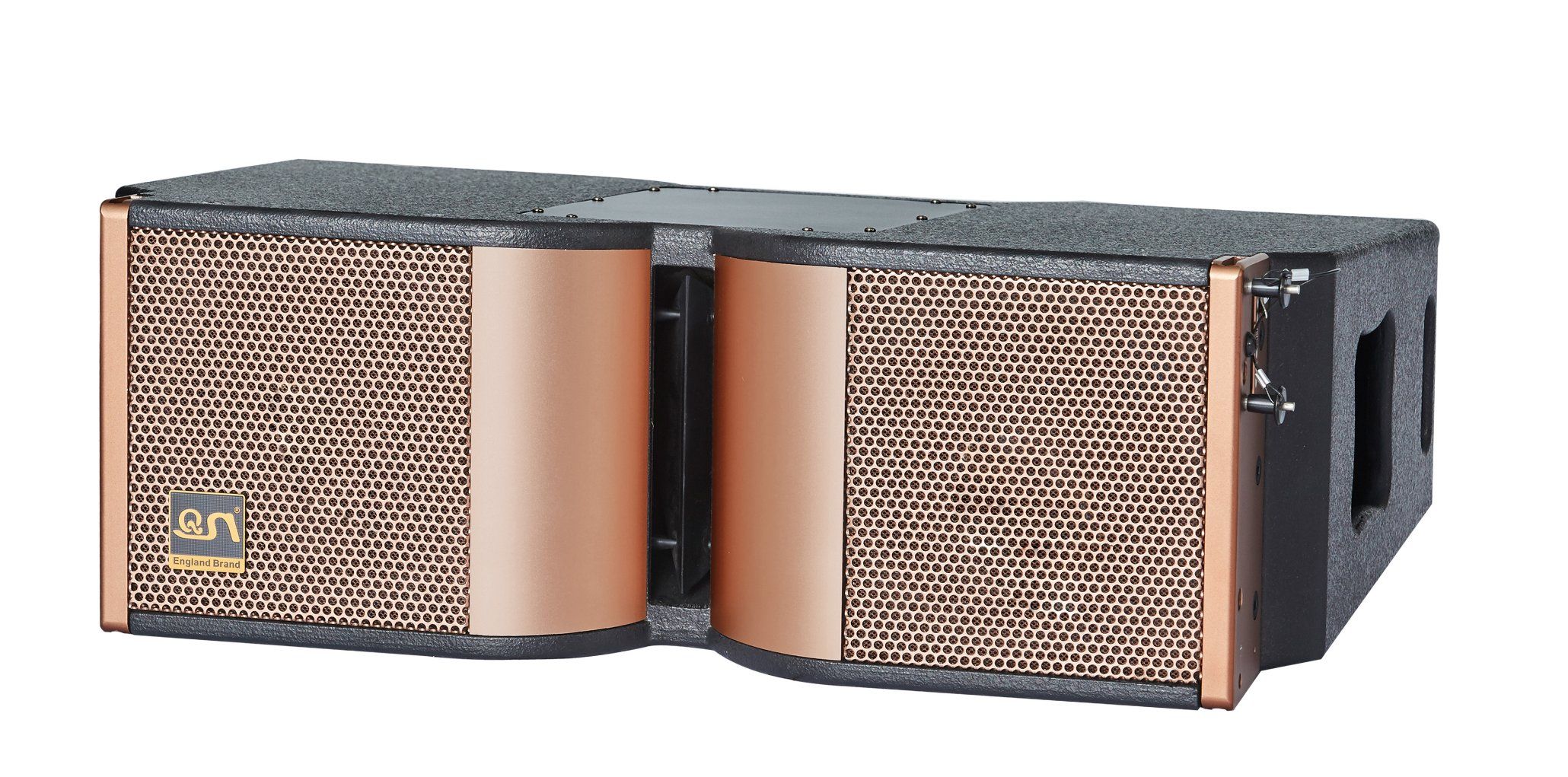

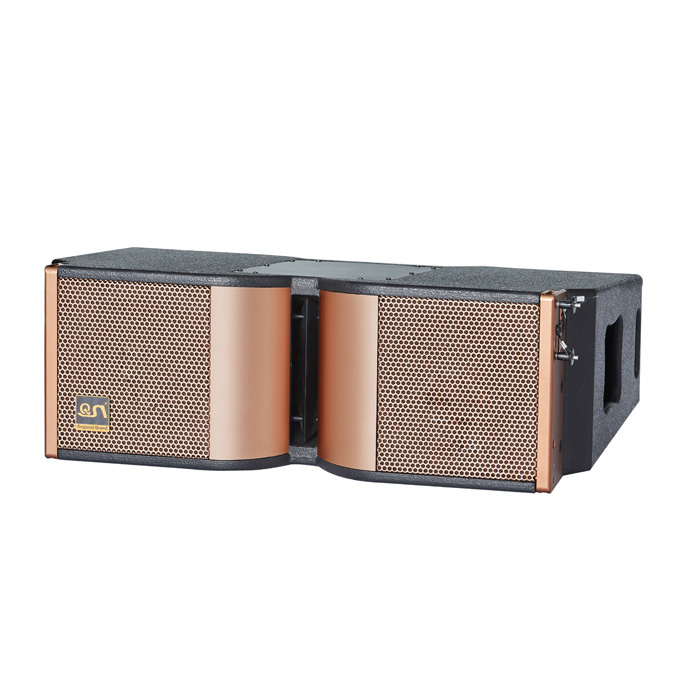

Name: Dual 8 inch professional dj horn stage line array speaker(Q508)
Features
1. Luxuriant champagne speaker box.
2.The material of case is high strength plywood.
3.Voice coil is adopted high quality material which can extremely high temperatures.
4.The driver has taken in enthusiast inductance and capacitor.
5.The bass is soft, clear and high penetrating.
6.Suitable for multi-functional hall, churches, school and outdoor performance, etc.
Parameters:
| Model | Q508 | Q508A |
| System | 2-way ful range | SUB BASS |
| Frequency response | 95Hz-20KHz | 40Hz-400Hz |
| Driver | Driver: LF: 8"×2,HF:3"×1 | LF: 18"×1 |
| Rated Impedance | 16 ohms | 8ohms |
| Sensitivity | 98db | 102db |
| Rated power | 450W | 600W |
| Peak power | 1800W | 2400W |
| Maximum SPL | 131db | 135db |
| Diffusion angle | 120°×8° | / |
| Crossover mode | External/Internal crossover | External crossover |
| Installation | Linear suspension | Linear suspension |
| Product Size(mm) | 710×430×230mm | 710×530×447mm |
How many days you could deliver?
For the sample order, we could send by Express upon receipt of this funds.You could receive them approx 3-5 days after we receive the deposit.
For the batch order, we will produce on the premise of guarantee quality as soon as possible.
What's mode of transportation?
For the sample order, we will deliver by Express, like DHL, Fedex, TNT and EMS.
Of course, it is more economical by sea for batch order.
Packing: Box or flight case.
Our company:
Area: 10000 square meter
Worker: more than 200 rich experienced technicians
History: more than 8 years ----------- We are a global marketing factory
Certificates: ISO9001(2008), RoHS ,CCC, FCC, CE,SGS
Market: western European,north American,middle-east Australia, east-south Asian , etc.
Our promise:pay more attention to product quality than you
We will reply you any question within 24 hours
How to contact us?
Send your inquiry detail to get the sample, click "send" now!
About Us:
Guangzhou Yunqiang Electronics Limited is a developing amplifier, speaker,stage lighting factory in Guangzhou,China. Based in the interenational andmanufactures innovative,High quality Amplifier, Speaker, Stage Light products for the professional Club Play and stage show Entertainment&leisure.
Our purpose:
Quality first,Credit first Customer first, First-rate service.
We insist in "honest business and high quality service" as our business ideal, with a powerful R&D team and a group of skilled workers in the factory as the strong backup and support,
we always work on this ideal to serve all customers with good quality and reasonable price.
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
