Ductile Iron Engineering Machinery Cast

Ductile Iron Engineering Machinery Cast
Price: US $ 1000-1500/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 1/Ton
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: CF-035
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Origine: Qingdao
Brand: Chifine
Service: OEM and ODM
Machining Type: CNC Turning Milling Drilling
Supply Ability: 1500tons Per Month
Material Type: Ductile Iron
Certificate: ISO9001 SGS Ce
Heat Treatment: Normailizing ,Anealing ,Tempering ,Quenching
Applications: Engineering Machinery Part
Quality Control: Professional QC and Test Equipment
Type: Clay Wet Sand

Product Description



Product Description:

1) Material: Gray Iron, Ductile Iron.

2) Process: Green sand casting, resin sand casting.

3) Applied software for specification drawings: Pro/E, AutoCAD, Solidworks etc.

4) Facility: Electric furnace, cupola furnace, anneal furnace, sand mixing machine, shot blast chamber, various molding machine.

5) Precision machining: CNC, NC lathes, boring machines, milling machines, bench drilling machines, etc.

6) Surface Protection: oiled (rust-proof), electroplating, hot dip galvanizing, nickel or chrome plating, painting, powder coating.

7) Products' location: The special designed fittings, widely used in municipal and drainage system, power station, industrial equipment, vehicles, etc.

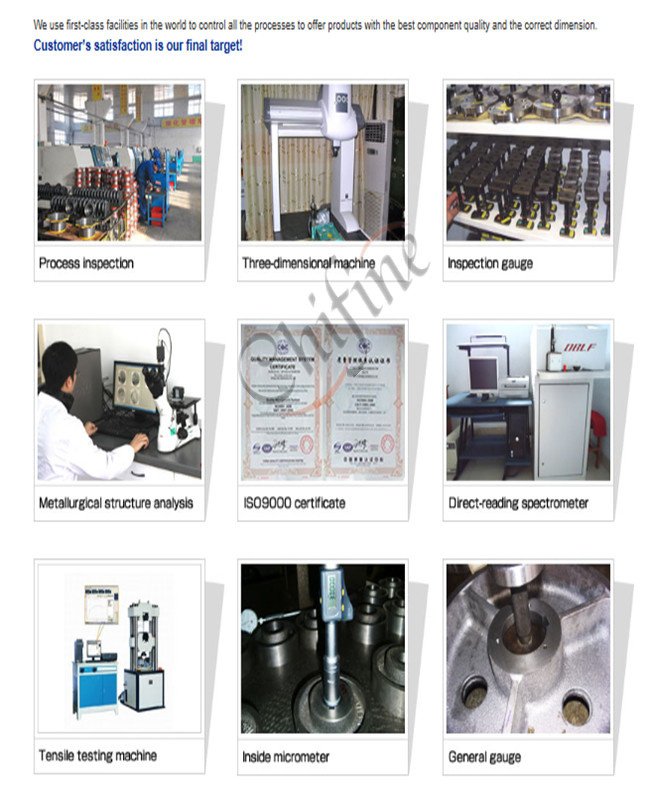

Our Inspection Equipment:
Direct-reading spectrograph,metallographic microscope,hardness tester,brinell hardness tester,thermometric indicator,universal testing machine,carbon and silicon analysis meter,magnetic powder flaw detector,digital ultrasonic flaw detector etc.

Our Service:
1.Your inquiry related to our products or prices will be replied in 12 hours.
2.Individual formula according to customers' special drawing requests.
3.Manufacturer with large capacity,ensures the fast production cycle after
confirming the order.
4.Protection of sales area and private information for all of our customers.


Quality Control:
We have a full set of quality control system to guarantee best product quality. Depending on the products, we can make different Item Testing Plan, Manufacturing procedure etc.
Raw material control
Chemistry spectrum analysis
Mechanical property
Metallographic analysis
Ultrasonic testing
Magnetic testing
Radiographic testing
Dimension inspection
Visual inspection
Penetrant testing
Leak testing
Hardness test
Micro-structure tester after heat treatment


Machining Ability
Our machining shop located in Qingdao using the latest CNC equipment to provide our customer with high quality products.
Horizontal and Vertical Machining Center
CNC lathe and normal lathe
CNC drilling and milling Center
Other assistant equipment








materialgrey cast iron, ductile cast iron, steel, stainless steel, brass, copper, bronze, aluminum, zinc etc
processsand casting, investment casting ,die casting ,forging
Surface finishmentpolishing, sand blasting, heat treatment, painting, powder coating, anodizing, electroplating, mirror polishing.
certificateISO9001
ServiceOEM service available
Main export marketEastern Europe
Western Europe

North America

Mid Africa

Central America

Asia

Australia
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.

Automative Casting Line:

• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);

Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).

• Product Size: 0-1000mm.

• Weight: 0.2kg-100kg

Resin Sand Casting

• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);

Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).

Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)

• Product Size: 0-1500mm.

• Weight: 10kg-5000kg

Shell Mould Casting

Shell casting is one of resin sand casting process.

It is suitable for thin-wall casting parts, be free from porosity.

• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);

Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).

Steel alloy; Aluminum alloy; Copper alloy.

• Product Size: 0-500mm.

• Weight: 50g-100kg.

• Wall thickness: 4-20mm

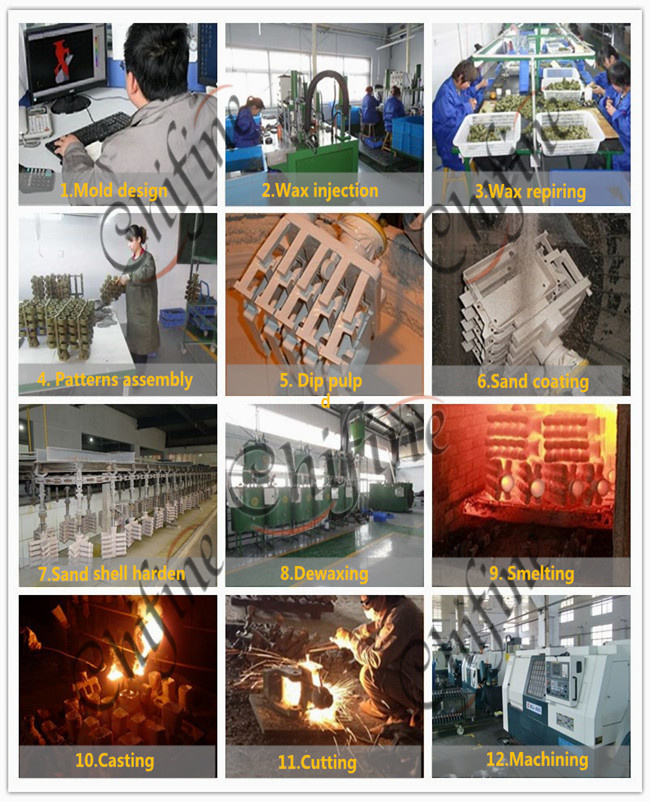

Lost Wax Casting

• Advanced wax-injection-machine and tool to ensure accurate wax-patten.

• Stable temperature and humidity environment make the wax-patten no deformation.

• Material:

Carbon steel; Stainless steel; Alloy steel.

Grey iron(GG20-GG35).

Ductile iron(GGG40-GGG60);

Malleable cast-iron

(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).

Aluminum alloy; Copper alloy.

• Casting size: 0-500mm.

• Casting weight: 50g-100kg

Stamping and Forging Line

• Stamping and forging equipment: 16T-300T press machine

• Automatic transport forging line

• Material: Carbon steel; Stainless steel; Alloy steel.

Aluminum alloy; Copper alloy.

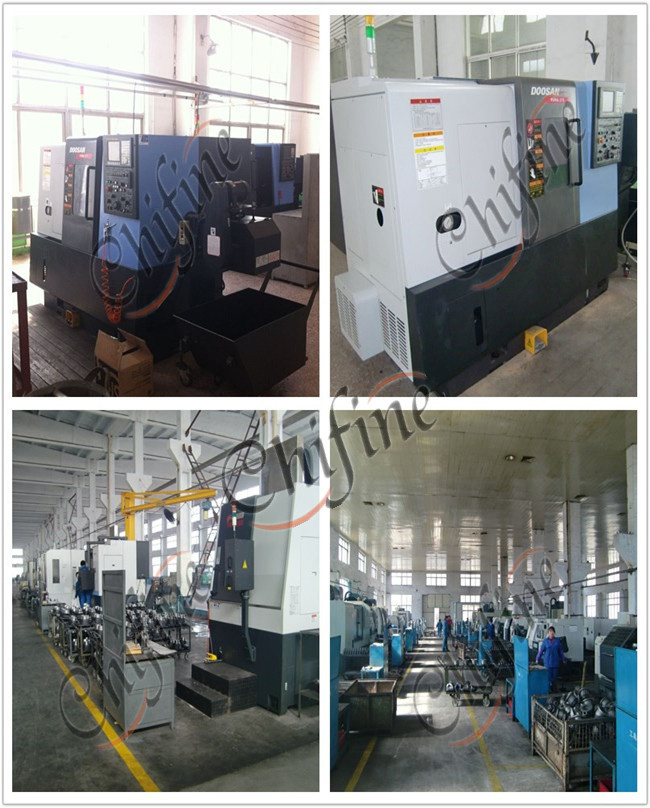

Machining Shop

Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.

• Horizontal and Vertical Machining Center

• CNC lathe and normal lathe

• CNC drilling and milling Center

• Other assistant equipment
