Ductile Iron Grooved Elbow and Plumbing Elbow for Building Project
| Price: |
US $ 1-20/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
XGQT02 |
| Elbow Working Pressure: |
300psi/2.07MPa |
| Elbow Tensile Strength: |
Min.Psi-65,000 (MPa-448) |
| Elbowyield Strength: |
Min.Psi-45,000 (MPa-310) |
| Elbow Elongation: |
Min.12% |
| Elbow Surface Finish: |
Epoxy Powder,Paint,Galvanized,Dacromet,Dipping Pai |
| Elbow Color: |
Ral-3000 Red |
| Elbow Material: |
Ductile Iron |
| Elbow Price: |
Competitive |
| Elbow Quality: |
High |
| Shape: |
Equal |
| Head Code: |
Round |
| Angle: |
90 Degree |
| Technics: |
Casting |
| Connection: |
Grooved |
| Material: |
Ductile Iron |
| Certification: |
FM/UL |
Product Description

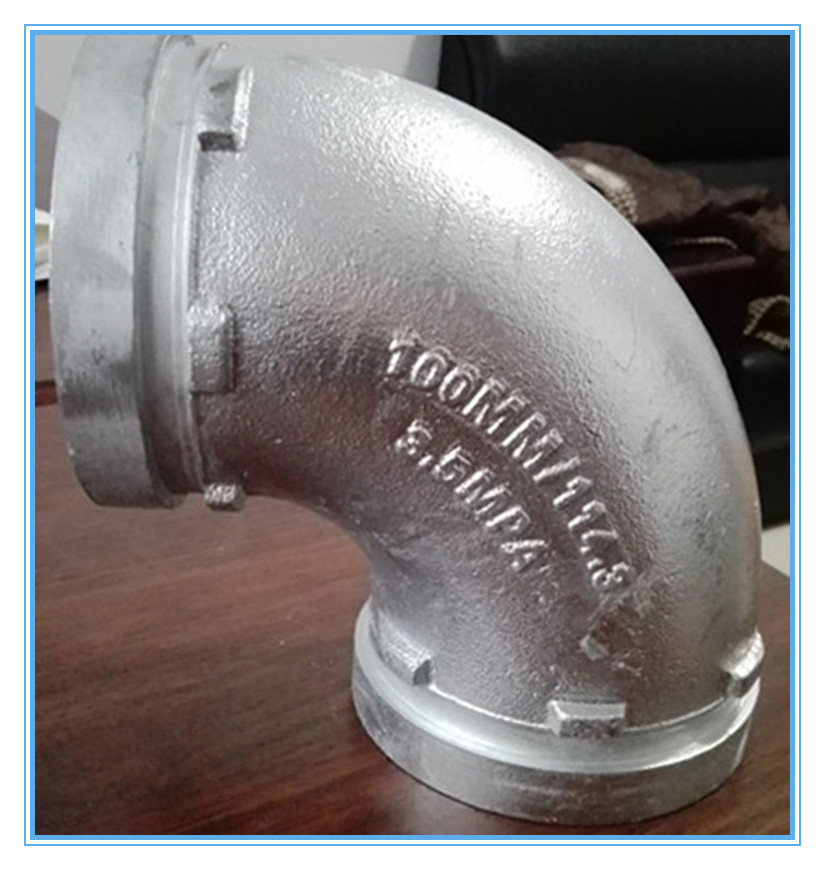

Ductile Iron Grooved Elbow and Plumbing Elbow for Building Project
Elbow Specifications| Item | 90 degree Elbow |
| Standard | ANSI, ASTM, DIN, JIS, GB, BS, etc |
| Material | Ductile Iron ASTM A536/QT450-10 |
| Surface Finish | Paint Epoxy Powder or Galvanized |
| Color | Red-RAL3000,Blue,Orange or as customer want |
| Working Pressure | 300 PSI/2.07 Mpa |
| Tensile Strength | Min.Psi-65,000(Mpa-448) |
| Yield Strength | Min.Psi-45,000(Mpa-310) |
| Elogation | Min.12% |
| Approval | FM/UL/ISO |
| Usage | 1) Automatic sprinkler system for fire protection on commercial, civil and municipal constructions like water supplying, gas supplying, heat supplying, etc. |
2) Industrial pipeline system on shipping,mine,textile
oil field,powder plant, etc. |
| 3) Pipeline system on subway station, railway |

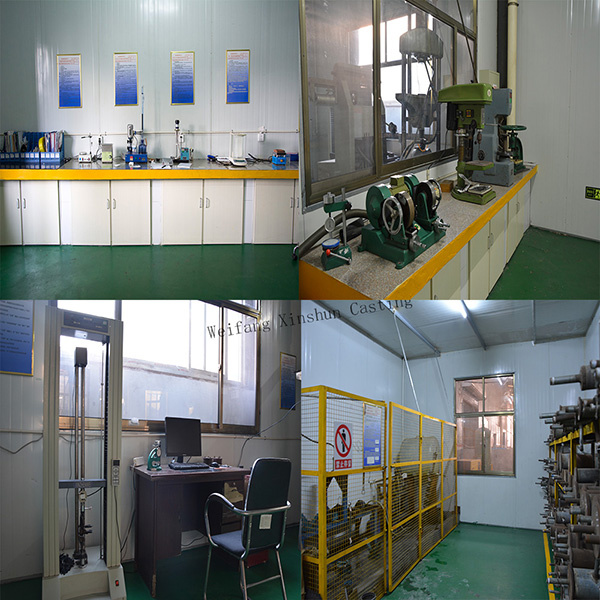

Elbow TestOur Lab for testing the material (bolt,nut,seal ring,sands,coal,etc) and the finished
products (quality and performance test as the UL/FM,GB5135.11-2006 standard

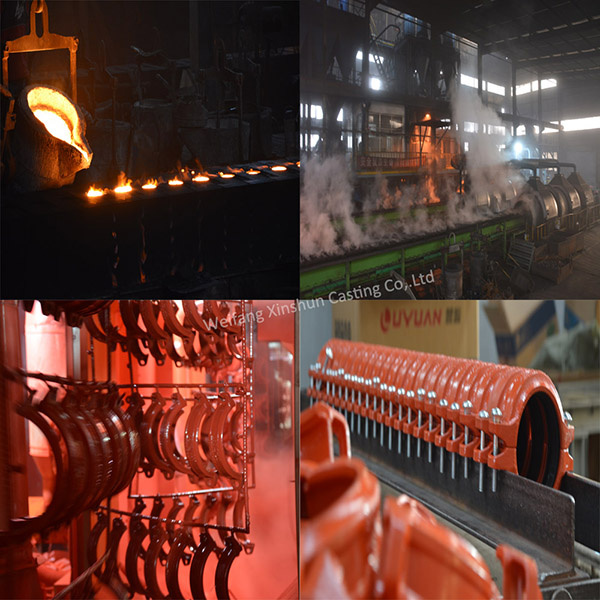

Our Factory
Smelting---Shot Blasting-----Grooved&Machining----Painting----Packing

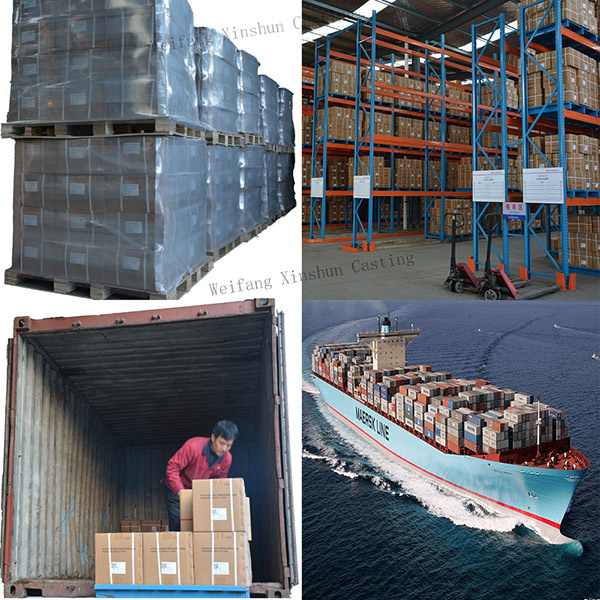

Elbow Pack and Delivery| Pack | Carton box with pallet |
| Payment | T/T :30% deposit,the balanced 70% before delivery
L/C at sight |
| Port | Qingdao |
| Delivery Time | 30 days shipment when we get the deposit |
Factory IntroductionWeifang Xinshun Casting Co,.Ltd,a factory specializing in production of DuctileIron pipe fitting with over 12 years professional experiences.Our pipe fittings have
been approved by UL and FM of USA in 2004,We factory has two automatic
DISA casting line and CNC lathe,Modeling machine center,Automatic coating
and packaging line.Our Products have high reputation at home and abroadand we have been exporting to USA,Canada,Mexico,Chile,Columbia,Peru,Spain,
Saudi Araba,Bangladesh,South Africa and so on. If you have a chance in future,welcome to visit our factory.
Any help,contact me directly pls
Weifang Xinshun Casting Co., Ltd established in 2005, located on Weifang City- The world kite capital, Shandong Province, China.
Our company is a large-scale manufacturer specialized in production of Ductile iron Grooved couplings and fittings for over 12 years, There are 450 employees in our factory, including 185 skilled workers, 10 senior engineers, 6 mold developments staffs and 12 quality inspectors. The annual capacity is over 50000 Tons. Our company has professional R&D team, Sales team and After-sales service team to meet all needs of customers.

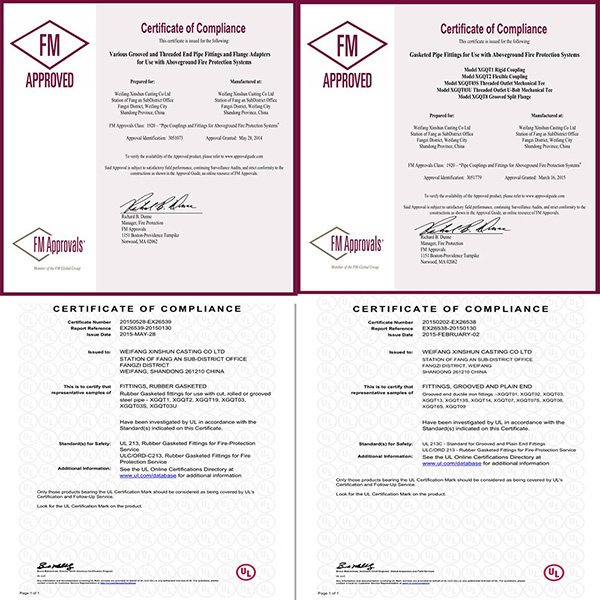

Our company has been passed ISO9001: 2008 quality system and our grooved couplings and fittings have been approved by CCC of China, FM and UL of American, and European Union CE certificate, Products are on sale over 300 cities of China and exported to the United State, Canada, Mexico, Columbia, Chile, Peru, Brazil, Panama, Spain, Saudi Arabia, Turkey, Korea, South Africa etc. More than 20 countries and areas. Our "LUYUAN" brand has been becoming the well-known brand in China, enjoying high reputation among the customers for its excellent quality, competitive prices and professional service.
There are three automatic casting production lines in our factory, One new DISA molding line imported from Denmark is under construction, the production process use fully automatic intelligent control system. We have CNC lathe, Mold machining center, Automatic coating and packaging line and so on. We also have a very professional laboratory with full series of testing and inspection, such as hydrostatic strength testing, raw material receiving inspection, batch chemical composition inspection, microstructure testing, dimension inspection, first article inspection, in- process inspection and final visual inspection in order to ensure the product quality.
With mature and advance technology, quality product, prudent working style, we believe we will be your best supplier!
