Ductile Iron Grooved Pipe Coupling with FM/UL/Ce Approvals

Name: Ductile Iron Grooved Pipe Coupling with FM/UL/Ce Approvals
Brand: tool-buy.com
SKU: 704740542
Availability: InStock
Rating: 4.6 (109 reviews)

Price:	US $ 1.58-1.97/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Weifang Xinshun Casting Co., Ltd.

Showroom Product Company Profile

Prod Model:	XGQT2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	1"-12"
Gasket:	EPDM or Nitril
Bolt & Nut:	Heat Galvanized Treated Carbon Manganese Steel
Material:	Iron
Connection:	Female
Surface Treatment:	Galvanized or Epoxy Paint

Product Description

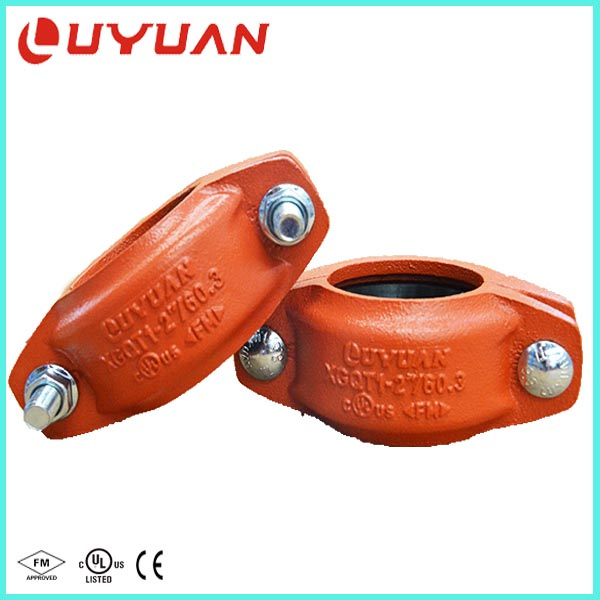

Product Name	Ductile iron grooved pipe fittings and couplings
Product series	1)Rigid coupling, Flexible coupling
	2)Grooved equal tee, Grooved reducing tee, Threaded reducing tee,Grooved
	mechanical tee,Threaded mechanical tee,Threaded U-Bolted mechanical tee
	3)90°Elbow, 45°Elbow, 22.5°Elbow, 11.25°Elbow
	4)Grooved equal cross,Grooved reducing cross,Threaded reducing cross
	5)Grooved reducer,Threaded reducer, Threaded eccentric reducer
	6)Grooved adaptor flange, Threaded adaptor flange,Spilit Flange
	7)Cap
	8)Produce per customer's requirement
Brand	Luyuan
Certification	FM/UL/CE/CCC/ISO
Size	1/2 inch-12 inch
Material	Ductile iron,ASTM A536/QT450-10
Technics	Casting
Working pressure	300Psi/2.07Mpa
Tensile strength	Min.Psi-65,000 (Mpa-448)
Yield strength	Min.Psi-45,000 (Mpa-310)
Elongation	Min.12%
Surface finish	Epoxy powder,Paint,Galvanized,Dacromet,Dipping Paint
Color	Red-Ral3000, Blue, Orange
Gasket	EPDM, Nitril,White Silica Gel
Capacity	45000 Tons/Year
Packing	1)Carton,Plywood pallet with plastic film
	2)Wood case
	3)As per cutomer's requirement
Delivery Time	20-30 days after receiving deposit
Payment terms	T/T or L/C at sight
Application	1)Automatic sprinkler system for fire protection on commercial,civil and
	munisipal constructions like water supplying,gas supplying,heat supplying,etc.
	2)Industrial pipeline system on shipping, mine, oil field, textile,powder plant,etc.
	3)Pipeline system on subway station,railway station,airport,seaport,bridge,etc.

Bolts and Nuts
Heat treated and electro galvanized bolts with oval neck, and heavy duty hexagon nuts.
Track head meet to the physical and chemical requirements of ASTM A-449 and physical requirements of ASTM A-183.
Rubber Gasket

Material Composition	Applocable Temperature	Application Scops
EPDM	34ºC- +150 ºC	Cold and hot water
		non-oil gas
		diluted acid,alkaline salt
		multichemicals(free ofhydrocarbon)
		Oil-like mediums are forbidden
Silicon rubber	-40ºC-+177ºC	Drinking water,hot water,
		high-temperature air ,some high-temperature chemicals
		Oil-like mediums are forbidden.
Nitrile rubber	-29ºC-+82ºC	Oil,Oil-gas,mineral oil,
		vegetable oil,hot water,
		water with temperature of
		not than 65ºC are forbidden
Notes: 1.Gasket rings of different materials will be used for different liquid mediums. 2.Products can be supplied as per Customers requirments

FAQ

1.What is your MOQ?
Our MOQ is usually 1 Pallet.
2.What is your delievery time?
The time of delievery is around 20-30days.
3.What is the shipping port?
We ship the goods via Qingdao port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How about the samples?
We could send you free samples but the transport fee shoule be paid by you.

We sincerely welcome you to visit our factory,any question,feel free to contact us.

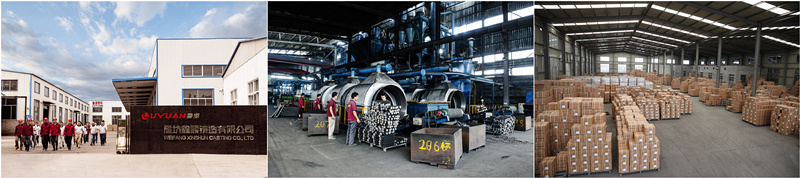

Weifang Xinshun Casting Co., Ltd established in 2005, located on Weifang City- The world kite capital, Shandong Province, China.

Our company is a large-scale manufacturer specialized in production of Ductile iron Grooved couplings and fittings for over 12 years, There are 450 employees in our factory, including 185 skilled workers, 10 senior engineers, 6 mold developments staffs and 12 quality inspectors. The annual capacity is over 50000 Tons. Our company has professional R&D team, Sales team and After-sales service team to meet all needs of customers.

Our company has been passed ISO9001: 2008 quality system and our grooved couplings and fittings have been approved by CCC of China, FM and UL of American, and European Union CE certificate, Products are on sale over 300 cities of China and exported to the United State, Canada, Mexico, Columbia, Chile, Peru, Brazil, Panama, Spain, Saudi Arabia, Turkey, Korea, South Africa etc. More than 20 countries and areas. Our "LUYUAN" brand has been becoming the well-known brand in China, enjoying high reputation among the customers for its excellent quality, competitive prices and professional service.

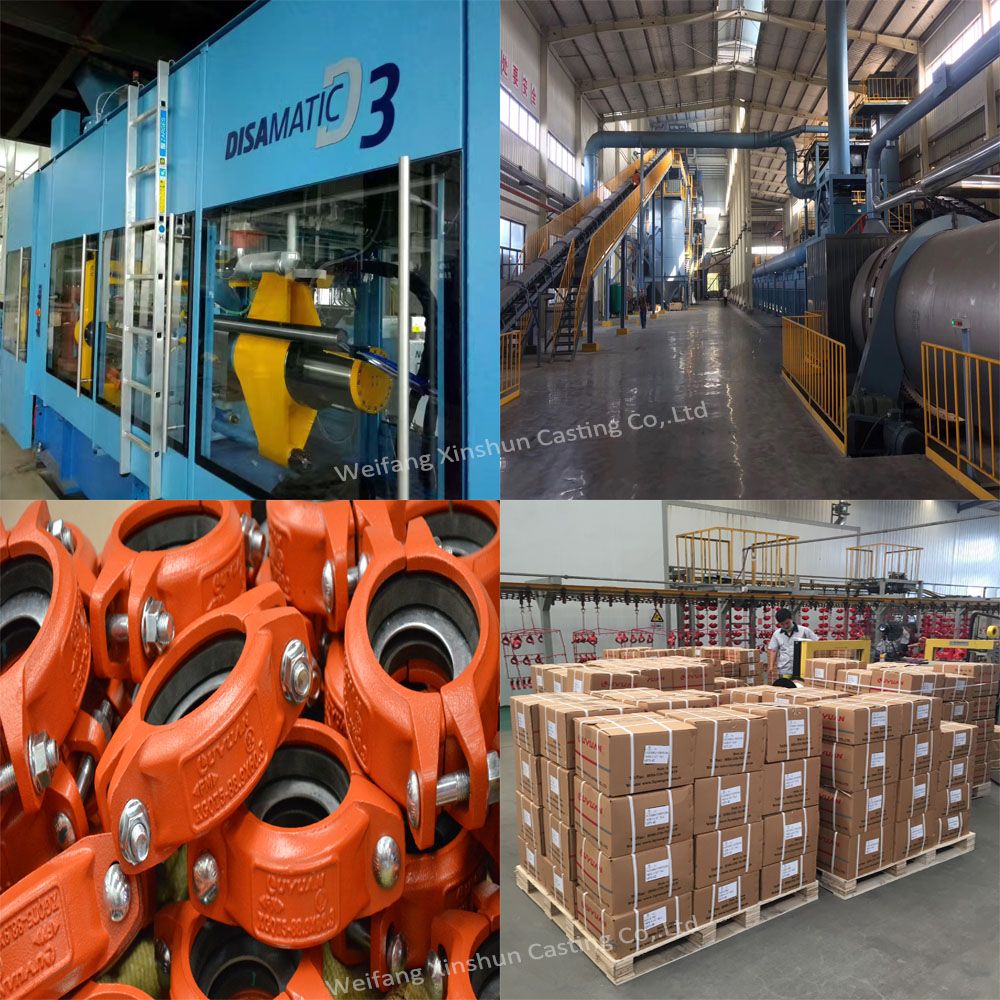

There are three automatic casting production lines in our factory, One new DISA molding line imported from Denmark is under construction, the production process use fully automatic intelligent control system. We have CNC lathe, Mold machining center, Automatic coating and packaging line and so on. We also have a very professional laboratory with full series of testing and inspection, such as hydrostatic strength testing, raw material receiving inspection, batch chemical composition inspection, microstructure testing, dimension inspection, first article inspection, in- process inspection and final visual inspection in order to ensure the product quality.

With mature and advance technology, quality product, prudent working style, we believe we will be your best supplier!
